Removal









ENGINE IMMOBILIZER: ID CODE BOX: REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Removal
2. REMOVE DEFROSTER LOWER NOZZLE ASSEMBLY Removal

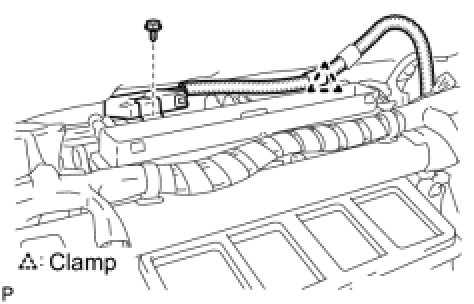

3. REMOVE ID CODE BOX (IMMOBILIZER CODE ECU)






(a) Disengage the clamp.
(b) Disconnect the connector.
(c) Remove the screw and the ID code box (immobilizer code ECU).
