Wiper and Washer with Auto Wiper System
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiper and Washer with Auto Wiper System: Notes

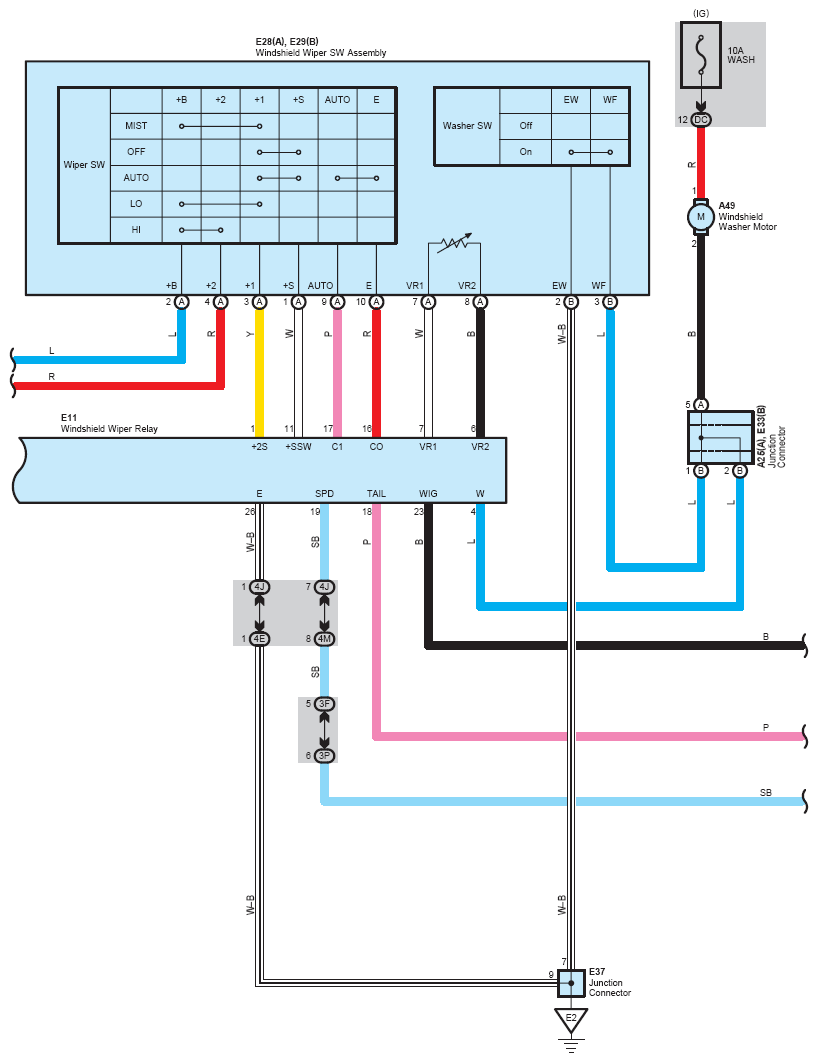

Fig 1: Wiper And Washer With Auto Wiper System - Circuit Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

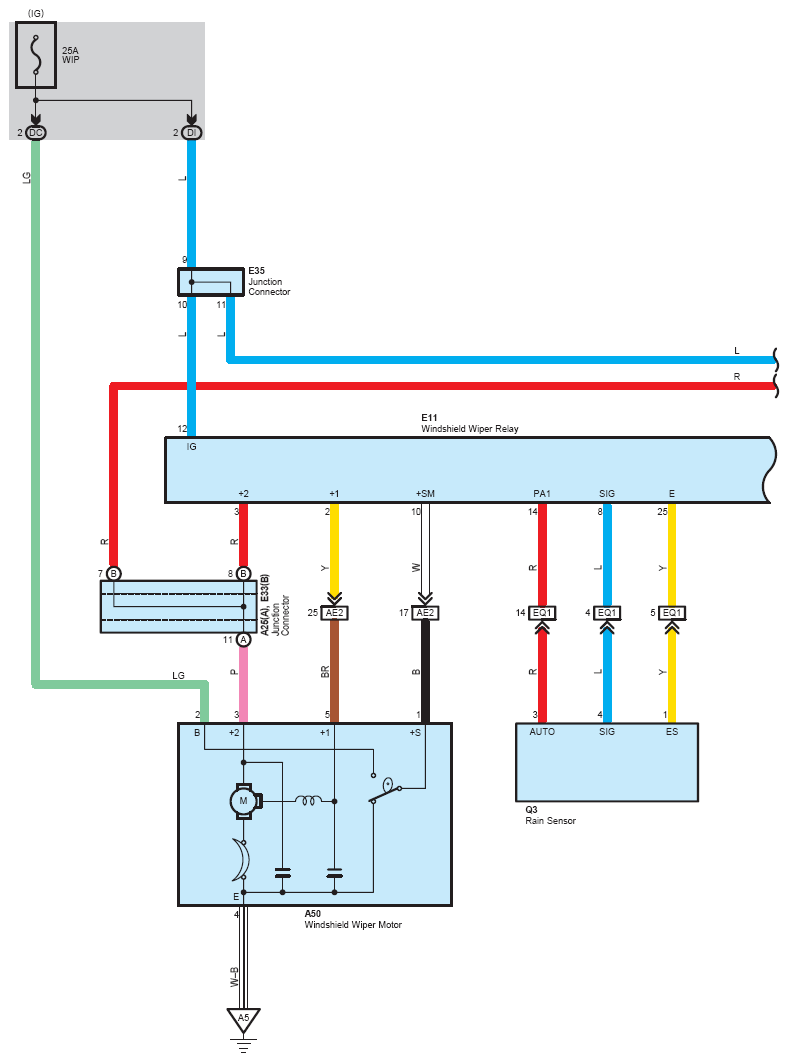

Fig 2: Wiper And Washer With Auto Wiper System - Circuit Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

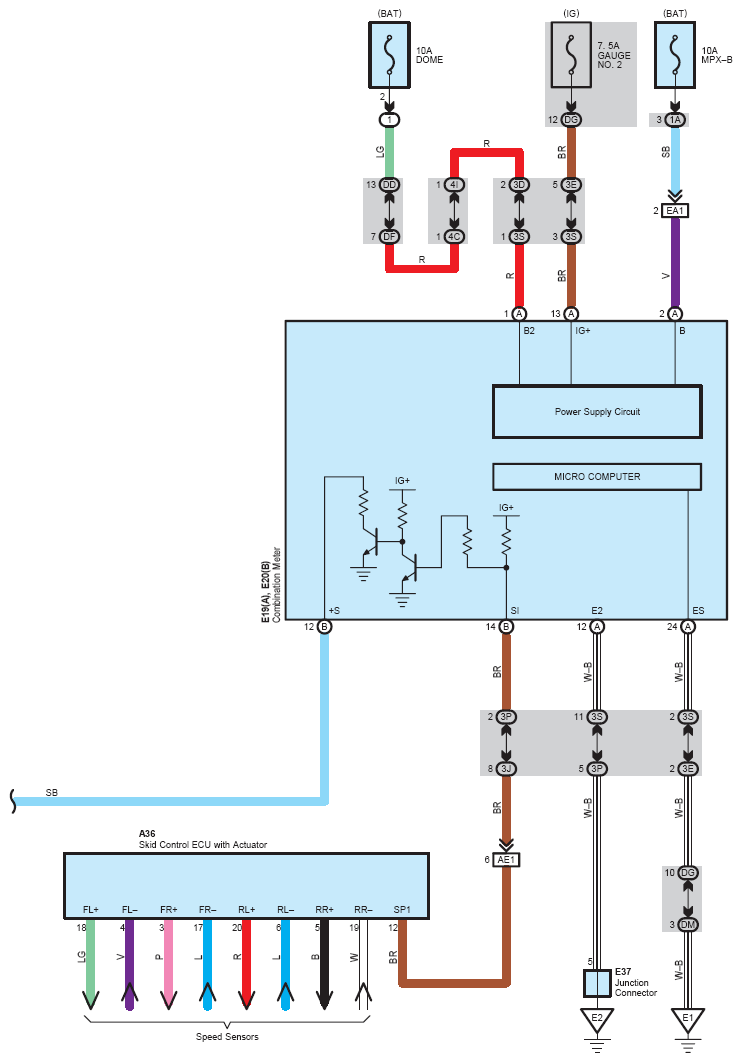

Fig 3: Wiper And Washer With Auto Wiper System - Circuit Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

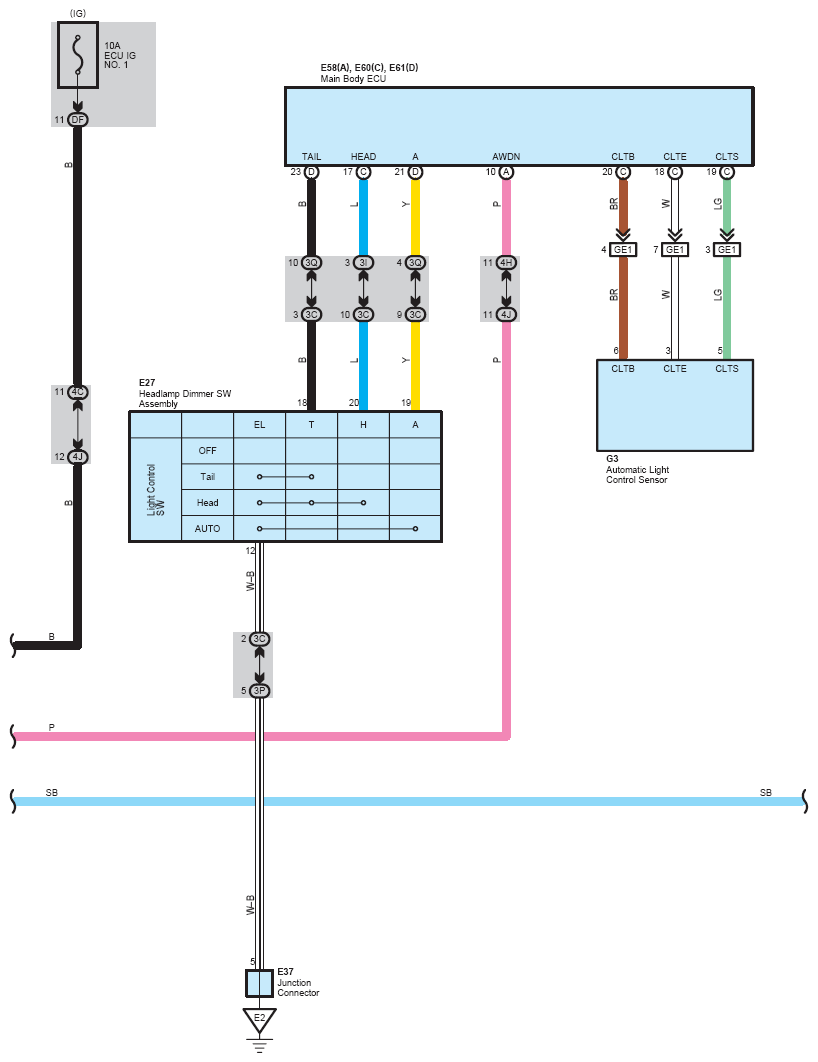

Fig 4: Wiper And Washer With Auto Wiper System - Circuit Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
