Power Window Regulator Motor: Components

Fig 1: Power Window Regulator Motor Replacement Components With Torque Specifications (1 Of 2)
G05253600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

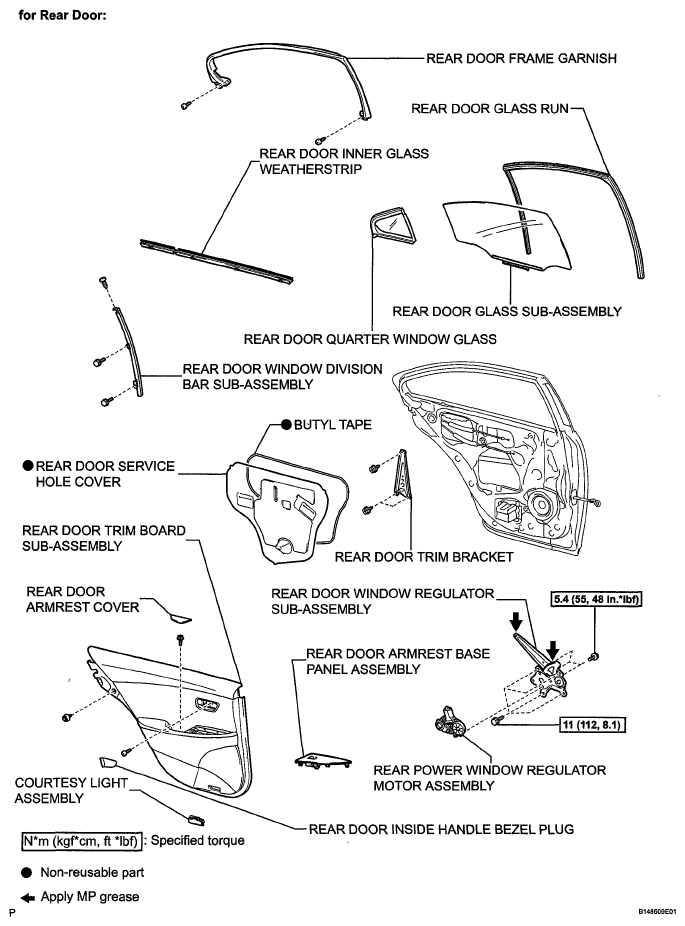

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 2)
G05837939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
