Open in CAN Main Bus Line

Open in CAN Main Bus Line

DESCRIPTION




There may be an open circuit in the CAN main bus line and / or the DLC3 sub bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 ohms or higher.

Wiring Diagram:

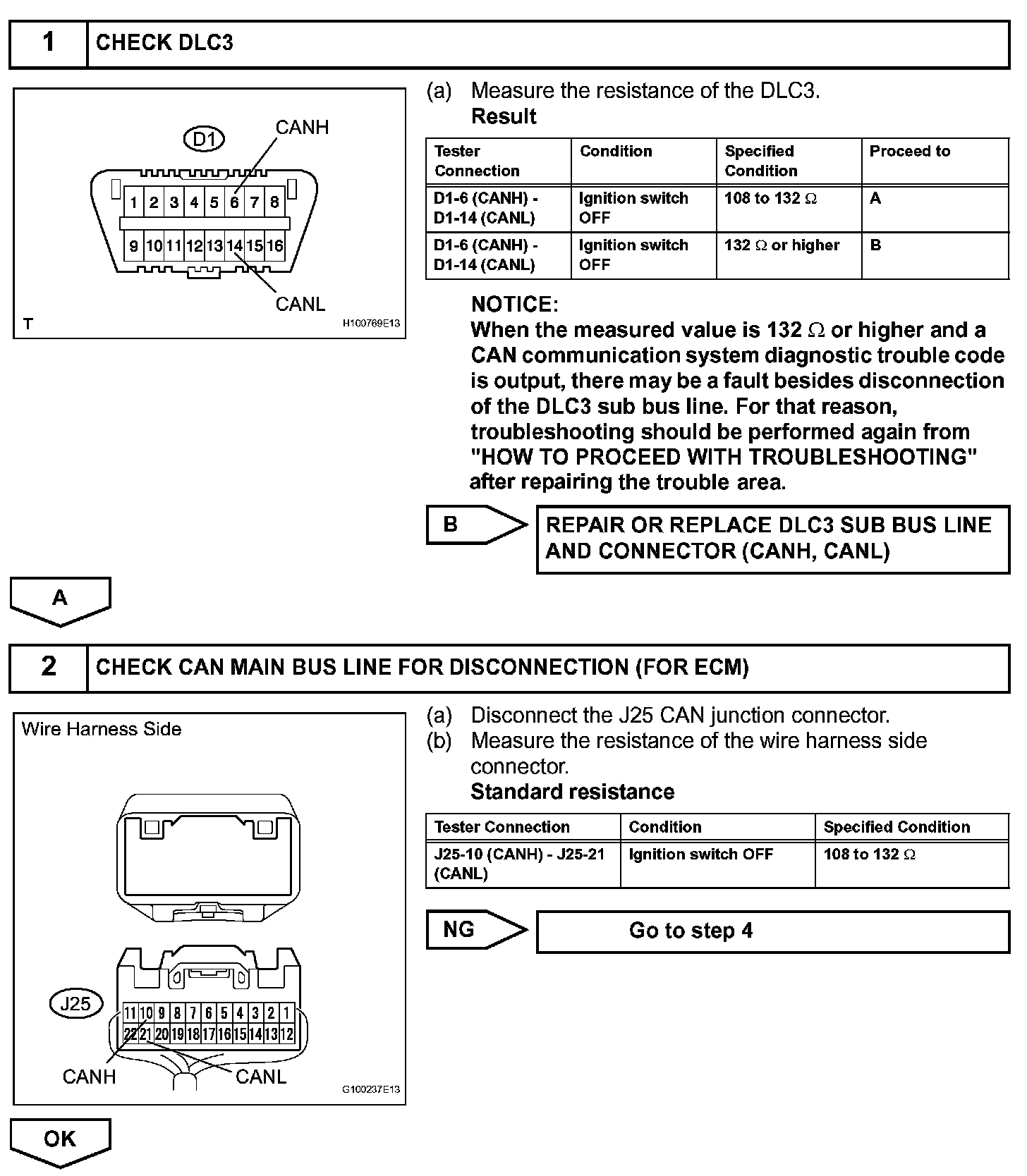

Step 1-2:

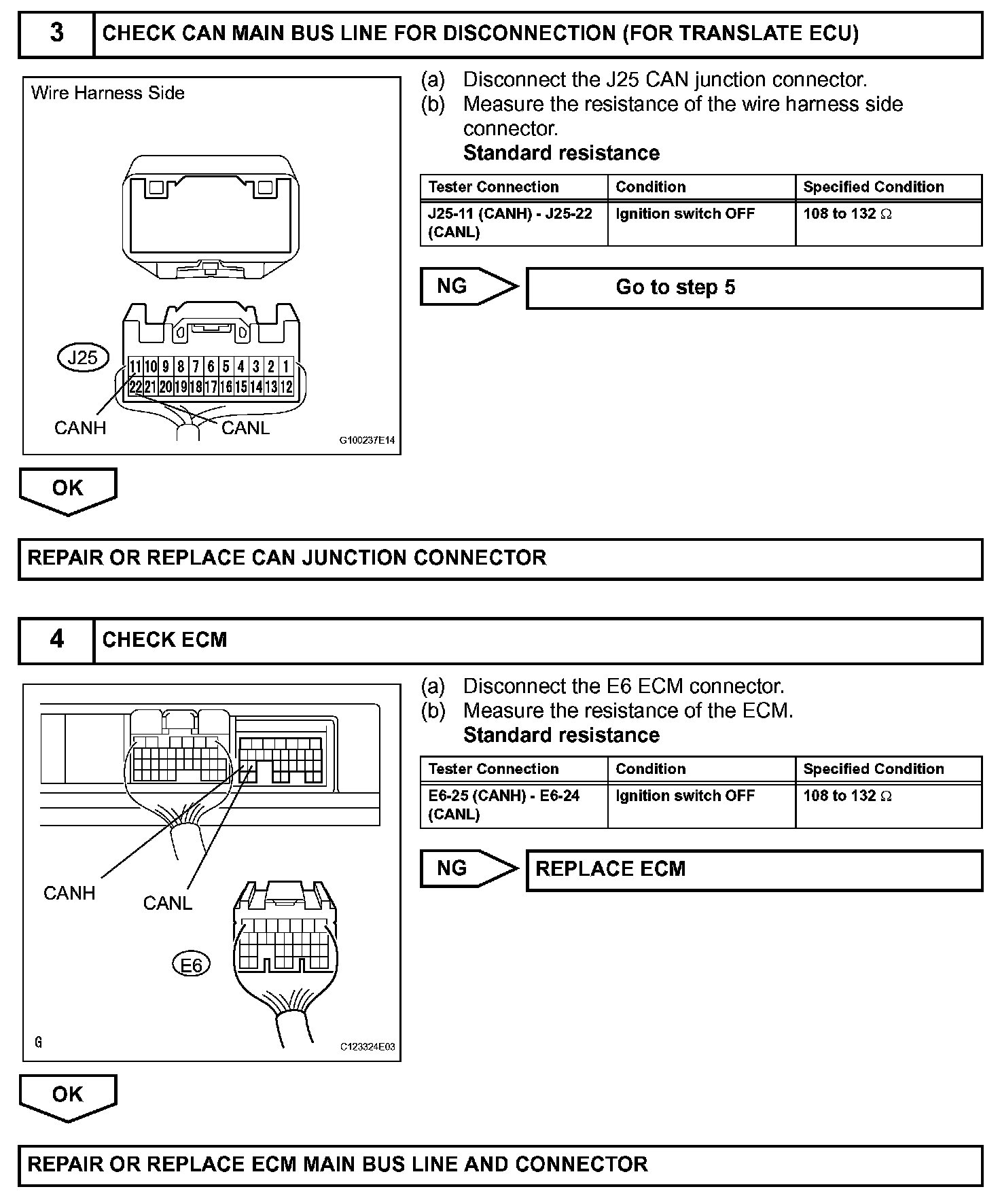

Step 3-4:

Step 5:

INSPECTION PROCEDURE
