Alarm Module: Testing and Inspection

Theft Warning ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the theft warning ECU.

Wiring Diagram:






Step 1:

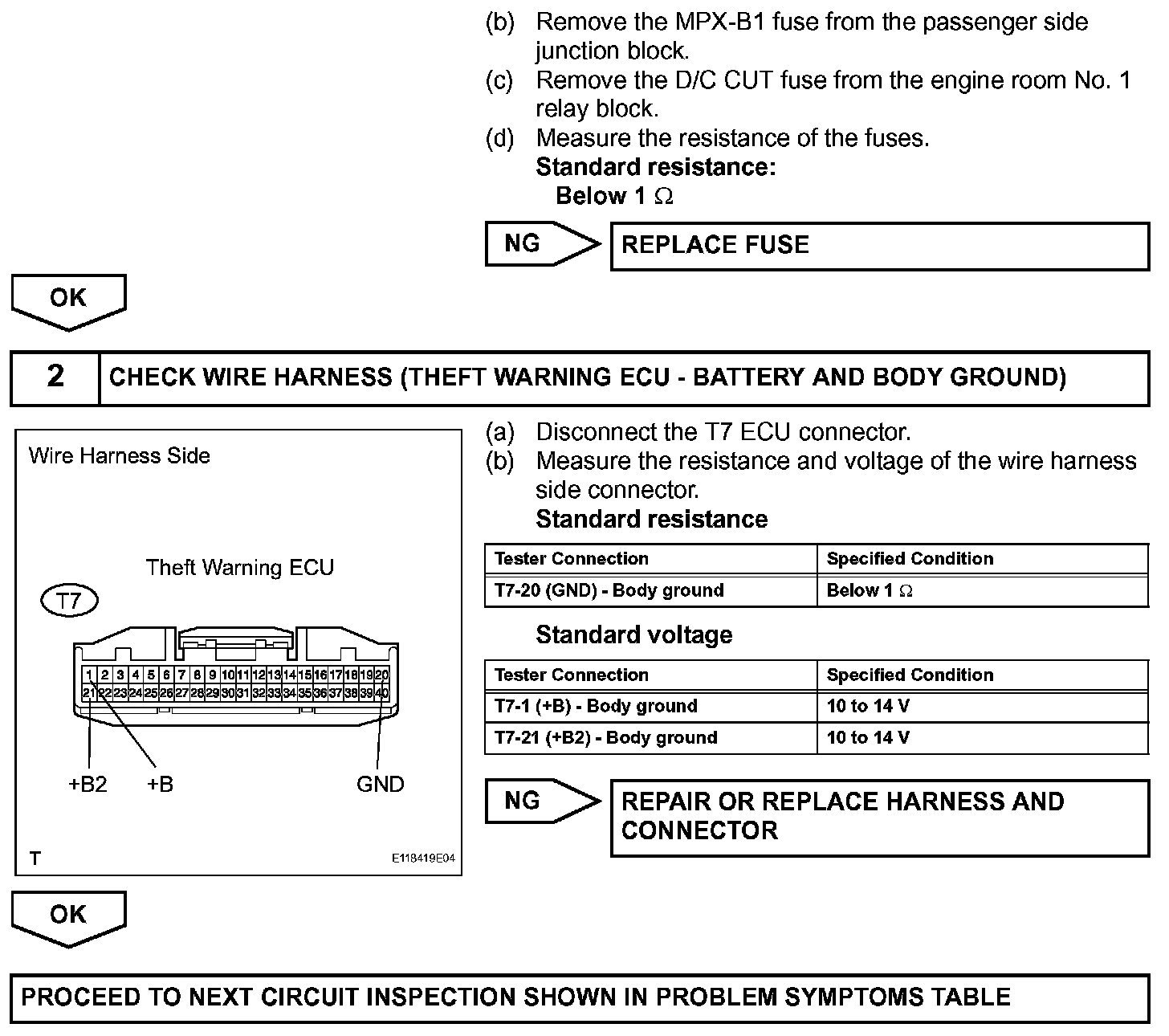

Step 1 (Continued)-2:




INSPECTION PROCEDURE
