Oil Cooler Assembly: Components

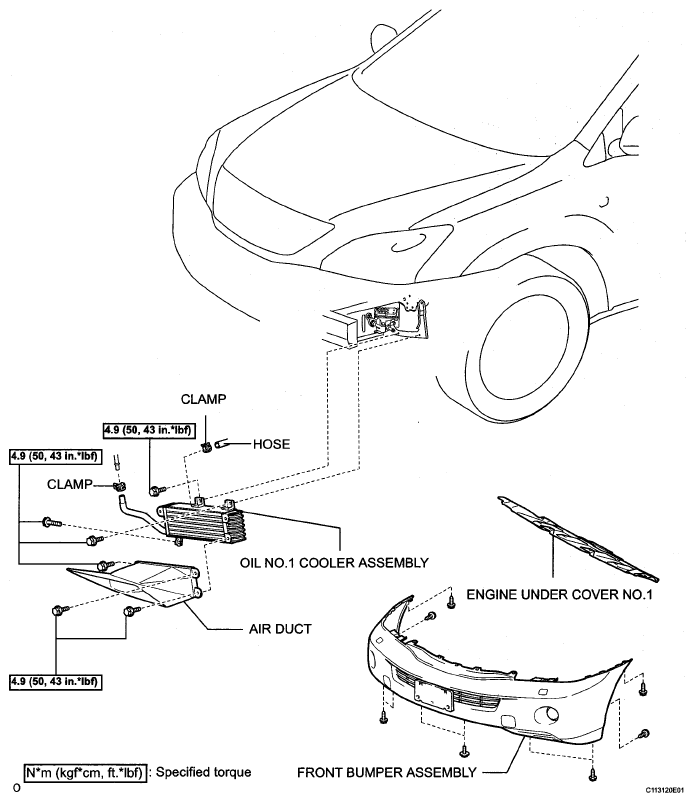

Fig 1: Oil Cooler Assembly Replacement Components With Torque Specifications
G05279285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
