Oil Pump: Components

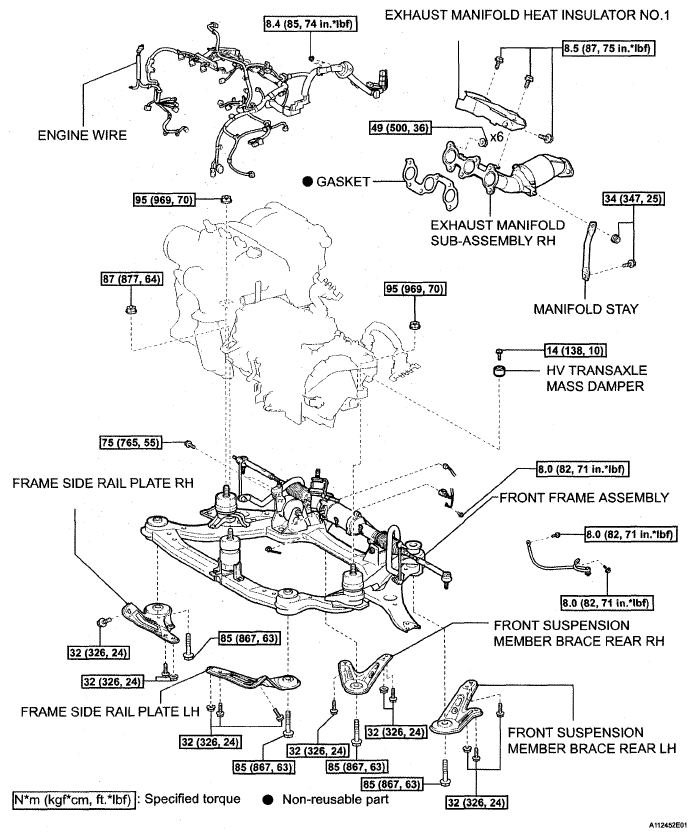

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 6)
G05201091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

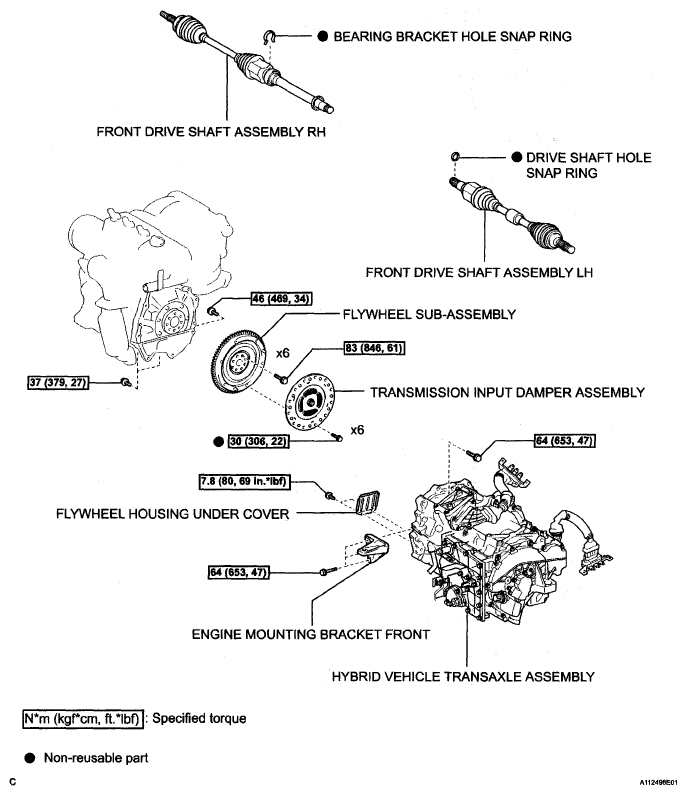

Fig 2: Oil Pump Replacement Components With Torque Specifications (2 Of 6)
G05201092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

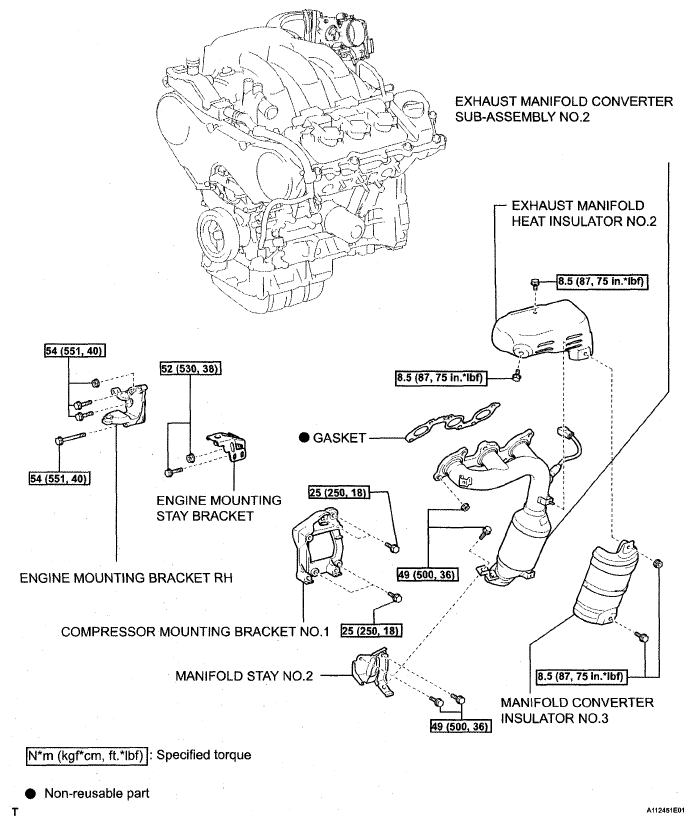

Fig 3: Oil Pump Replacement Components With Torque Specifications (3 Of 6)
G05201093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

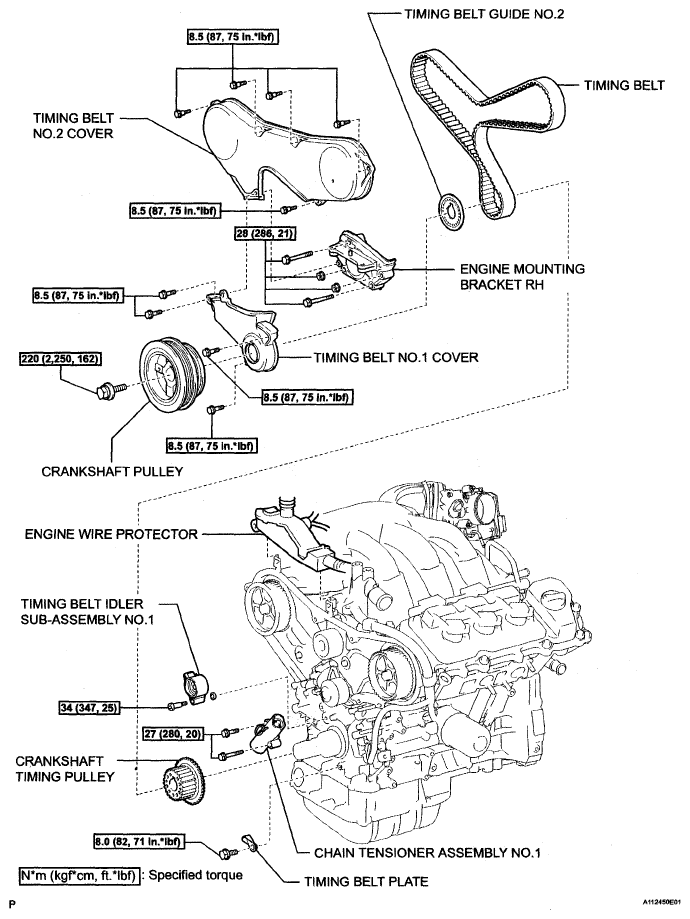

Fig 4: Oil Pump Replacement Components With Torque Specifications (4 Of 6)
G05201094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

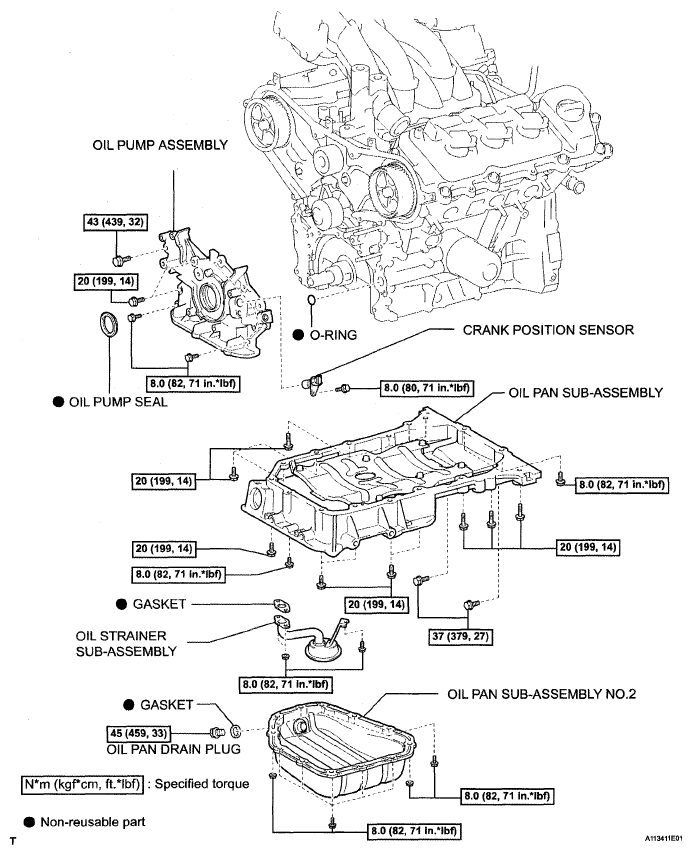

Fig 5: Oil Pump Replacement Components With Torque Specifications (5 Of 6)
G05201095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

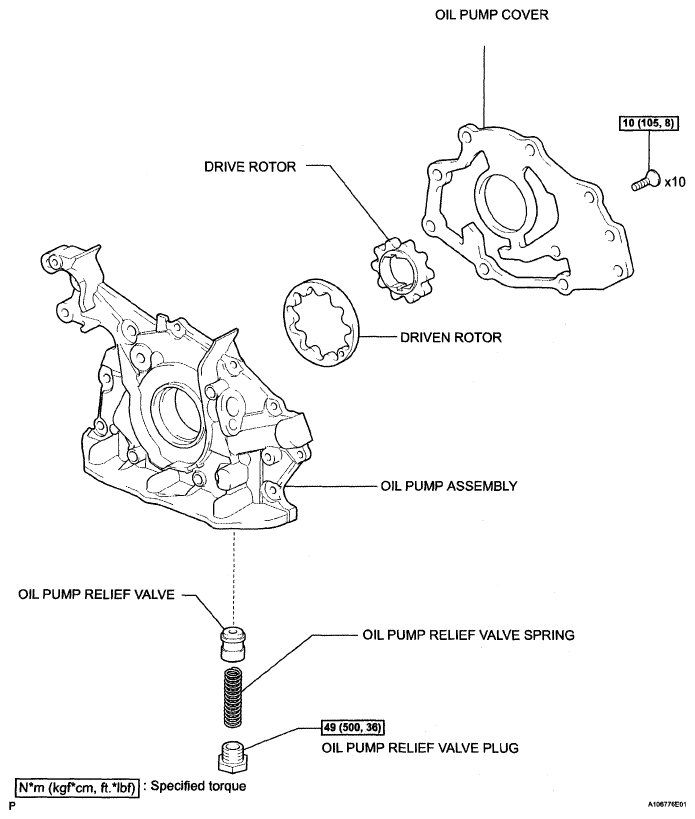

Fig 6: Oil Pump Replacement Components With Torque Specifications (6 Of 6)
G05201096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
