Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Ground Points
>>
Ground Point
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Ground Point: Notes

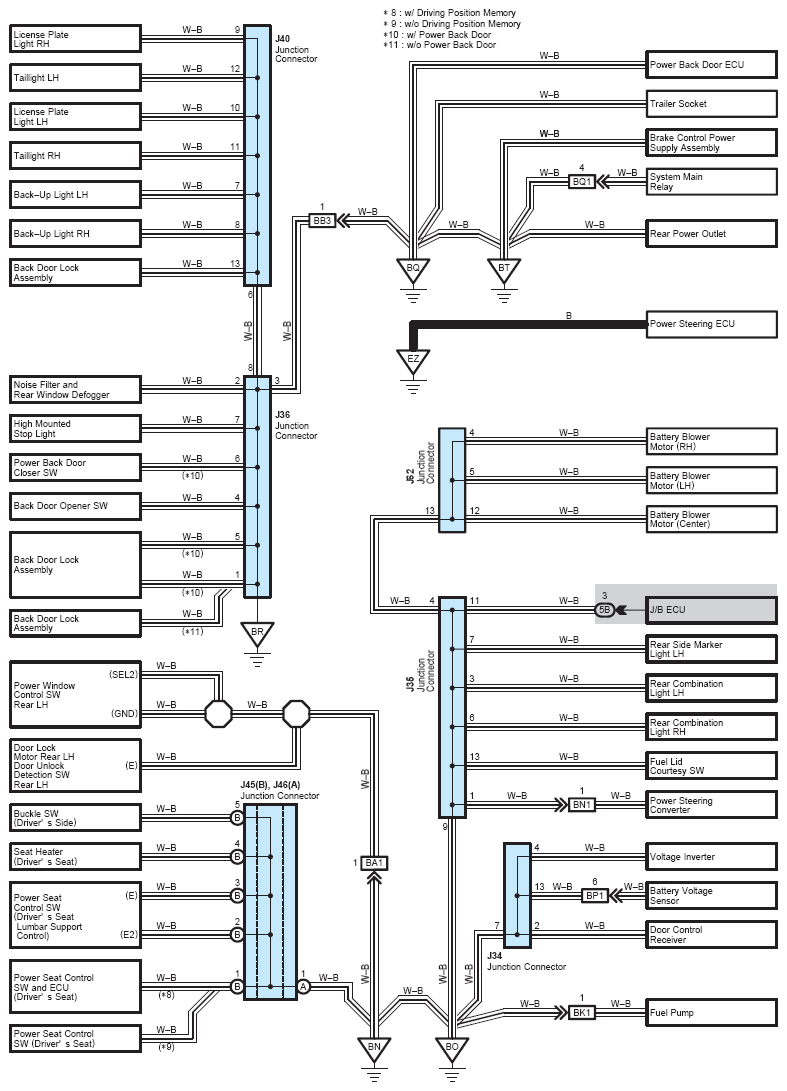

Fig 1: Ground Point Wiring Diagram (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

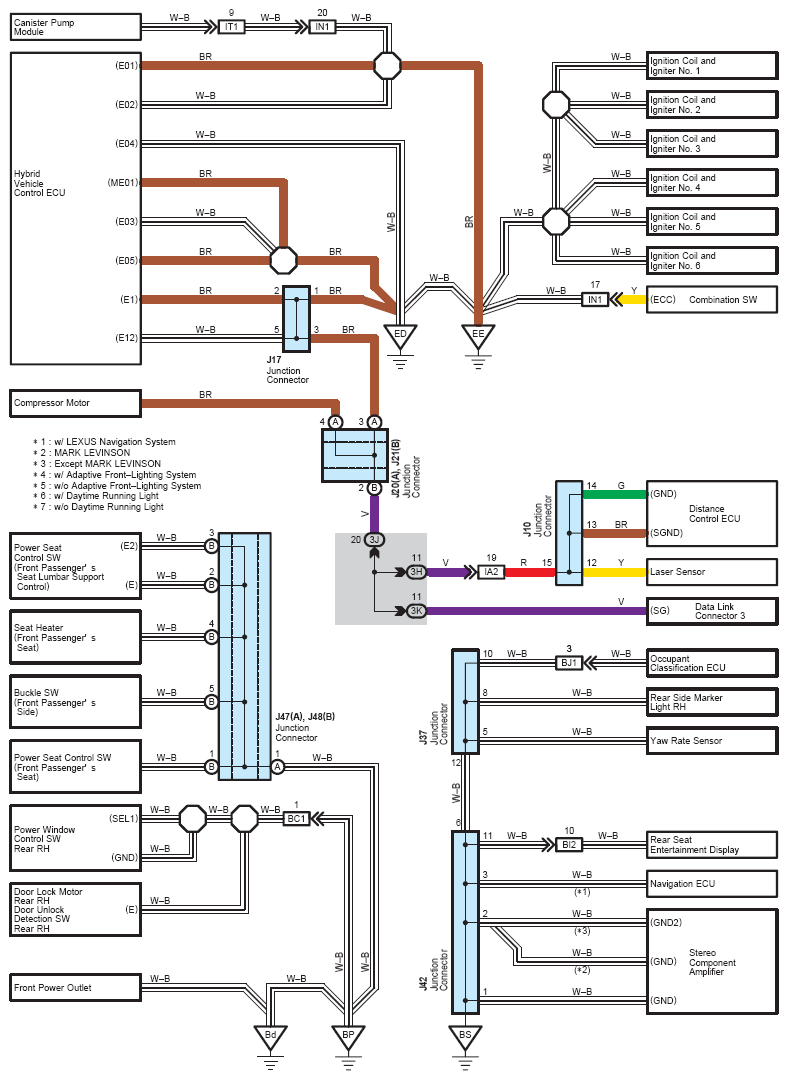

Fig 2: Ground Point Wiring Diagram (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

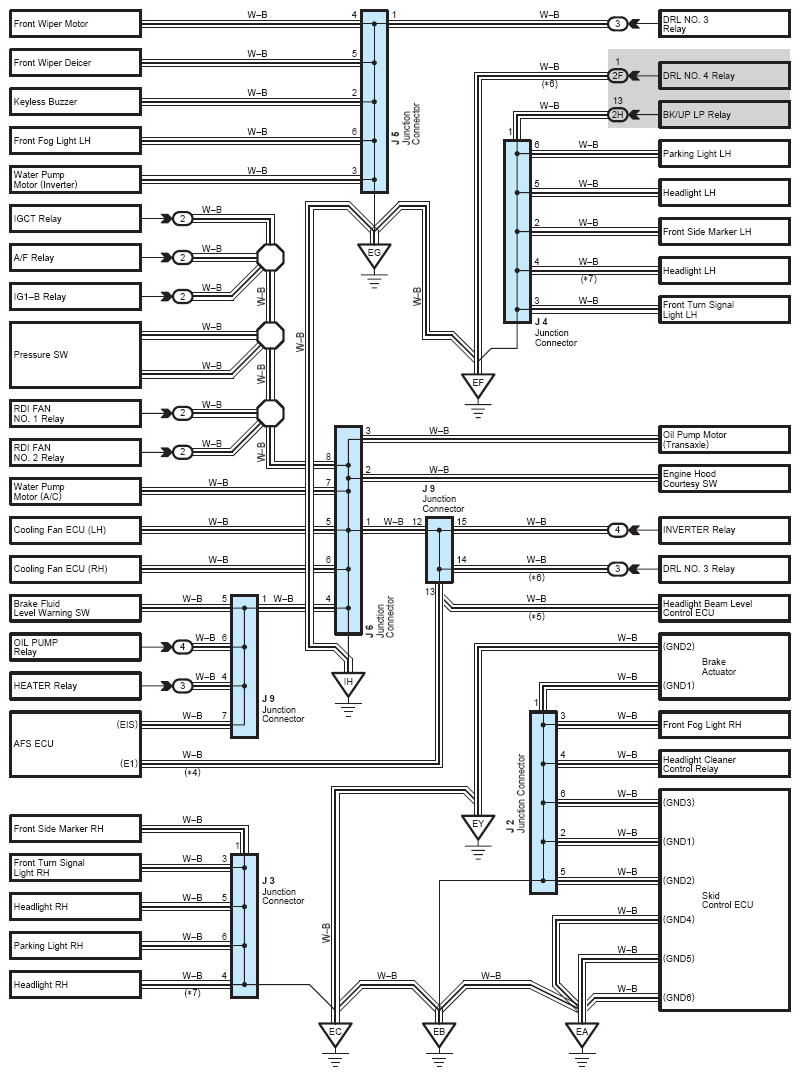

Fig 3: Ground Point Wiring Diagram (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

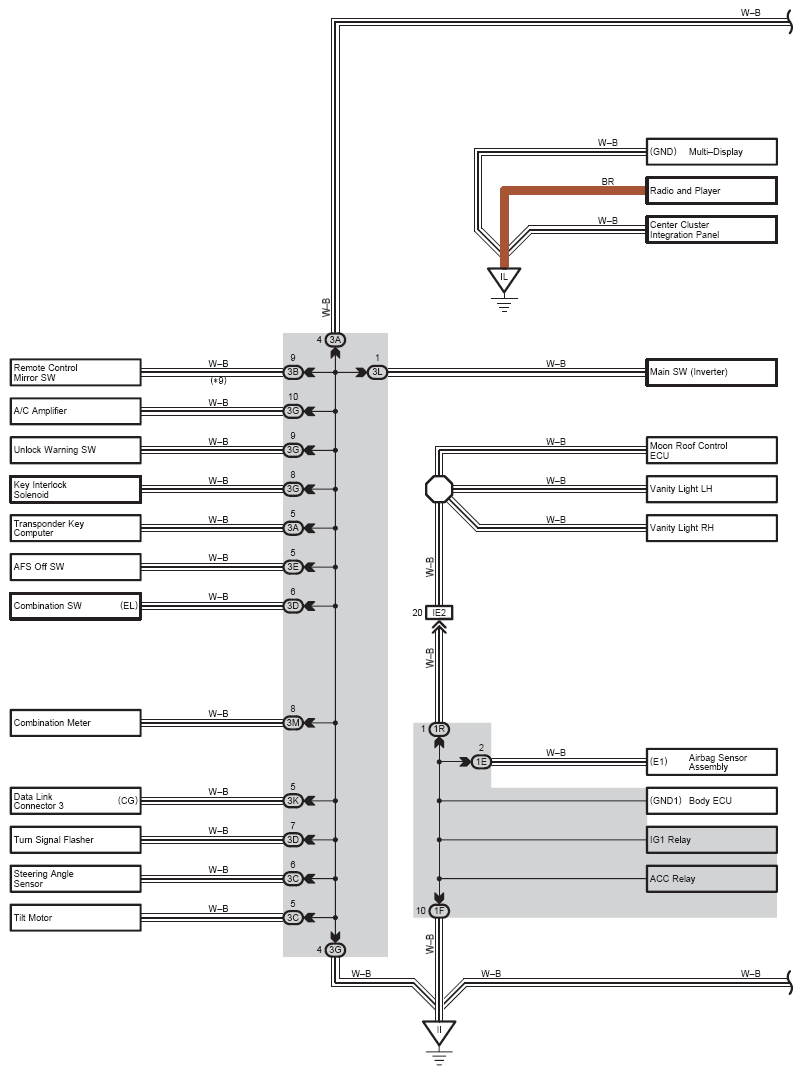

Fig 4: Ground Point Wiring Diagram (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

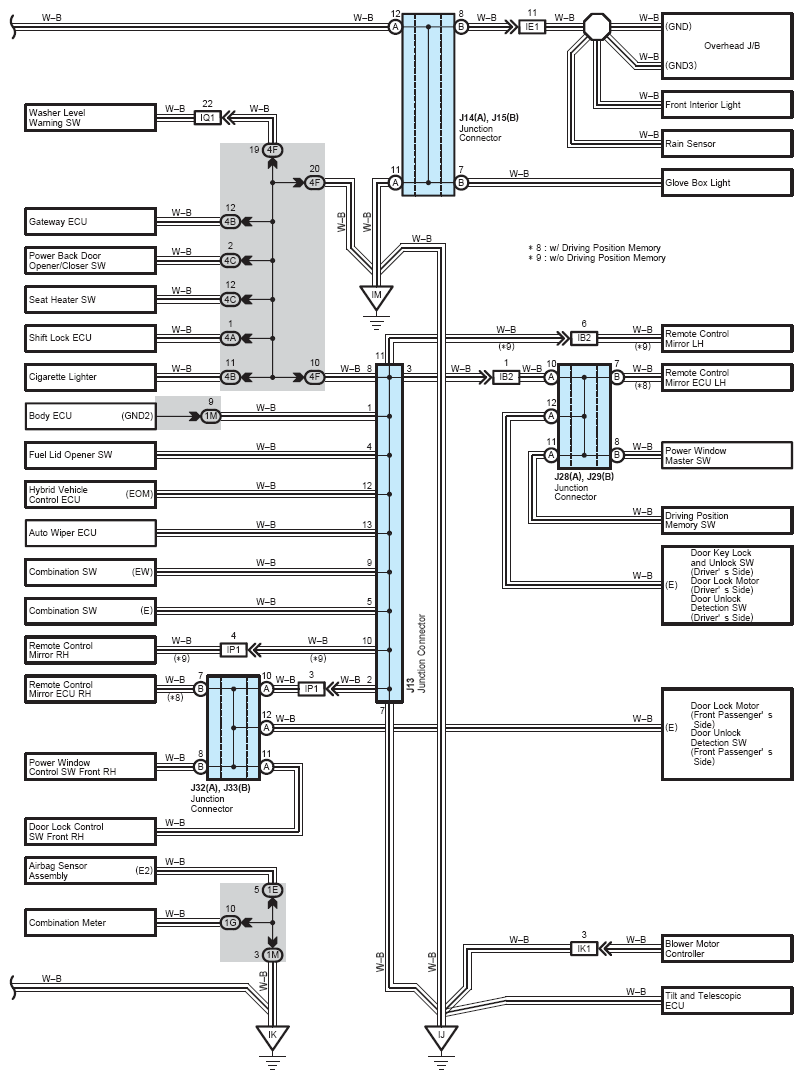

Fig 5: Ground Point Wiring Diagram (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
