Heated Oxygen Sensor: Components

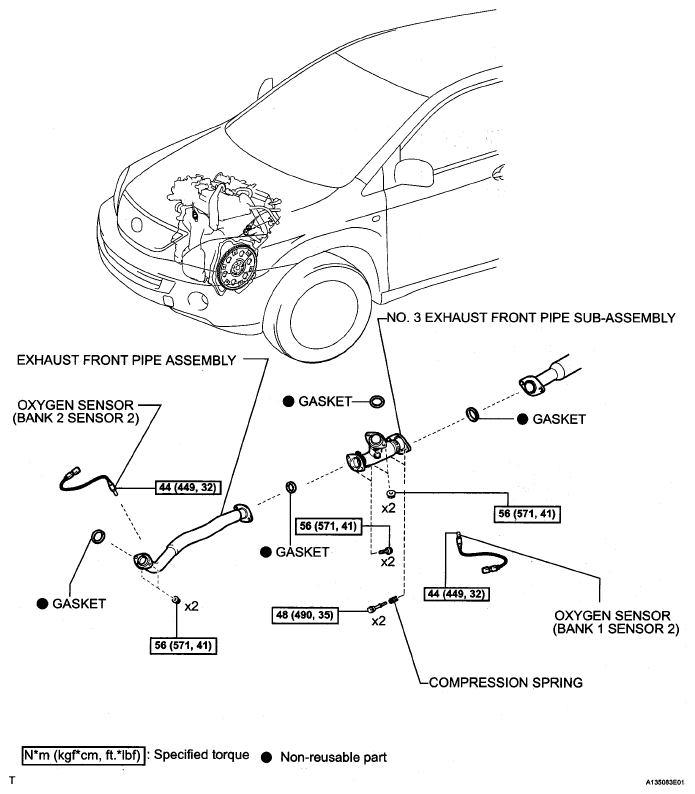

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specification
G05271682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
