TRAC OFF Indicator Light, TRAC OFF Switch Circuit: Wiring Diagram

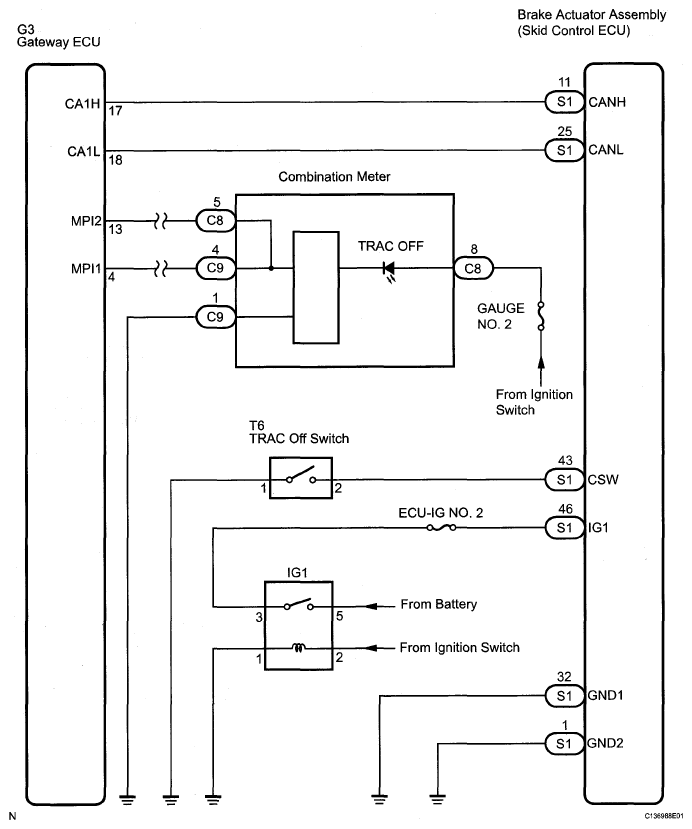

Fig 1: Identifying TRAC Off Indicator Light Wiring Diagram
G05272762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
