VSC TRAC Warning Light Circuit: Wiring Diagram

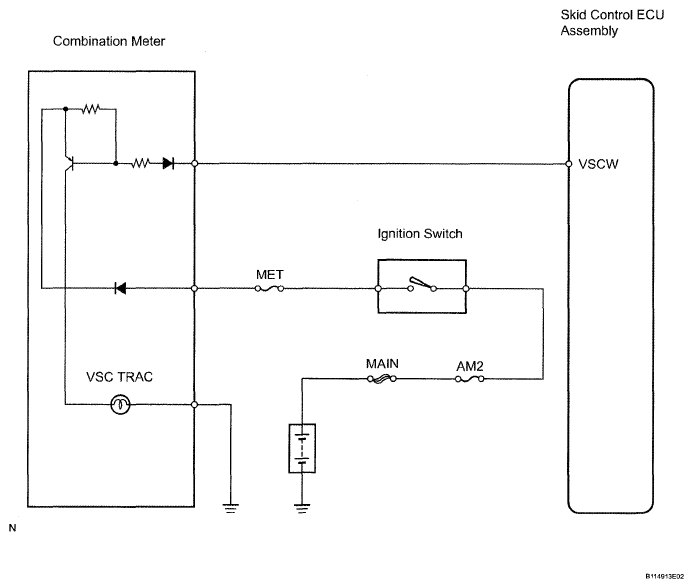

Fig 1: VSC TRAC Warning Light - Wiring Diagram
G05197668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
