ABS Warning Light Remains ON: Wiring Diagram

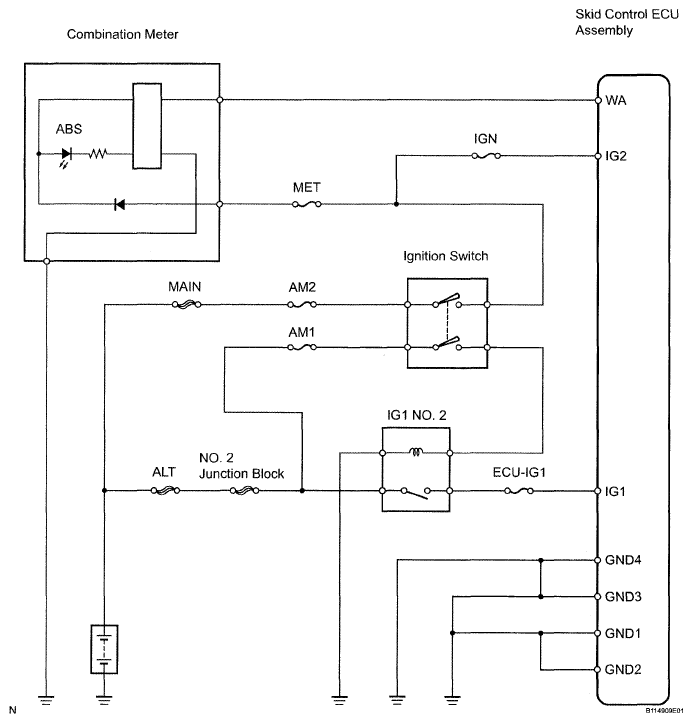

Fig 1: ABS Warning Light Remains On - Wiring Diagram
G05197664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
