Wireless Door Lock Control System: Precaution

NOTE: When disconnecting the cable from the negative (-) battery terminal, initialize the following systems after the cable is reconnected.
SYSTEM DESCRIPTION

System Name See Procedure
Variable Gear Ratio Steering System INITIALIZATION
Meter / Gauge System

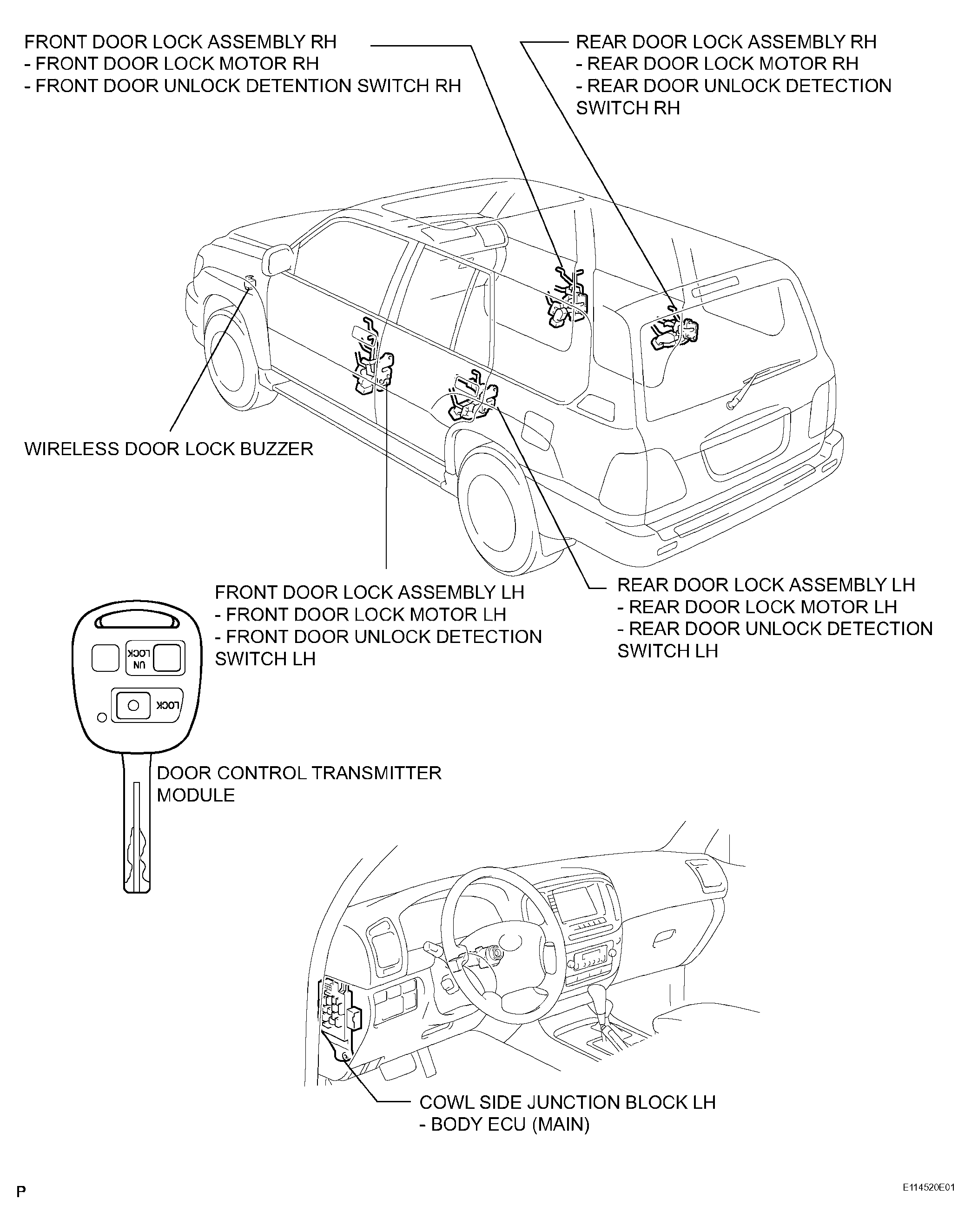

Fig 1: Identifying Wireless Door Lock Control System Parts Location (1 Of 2)
G04065200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

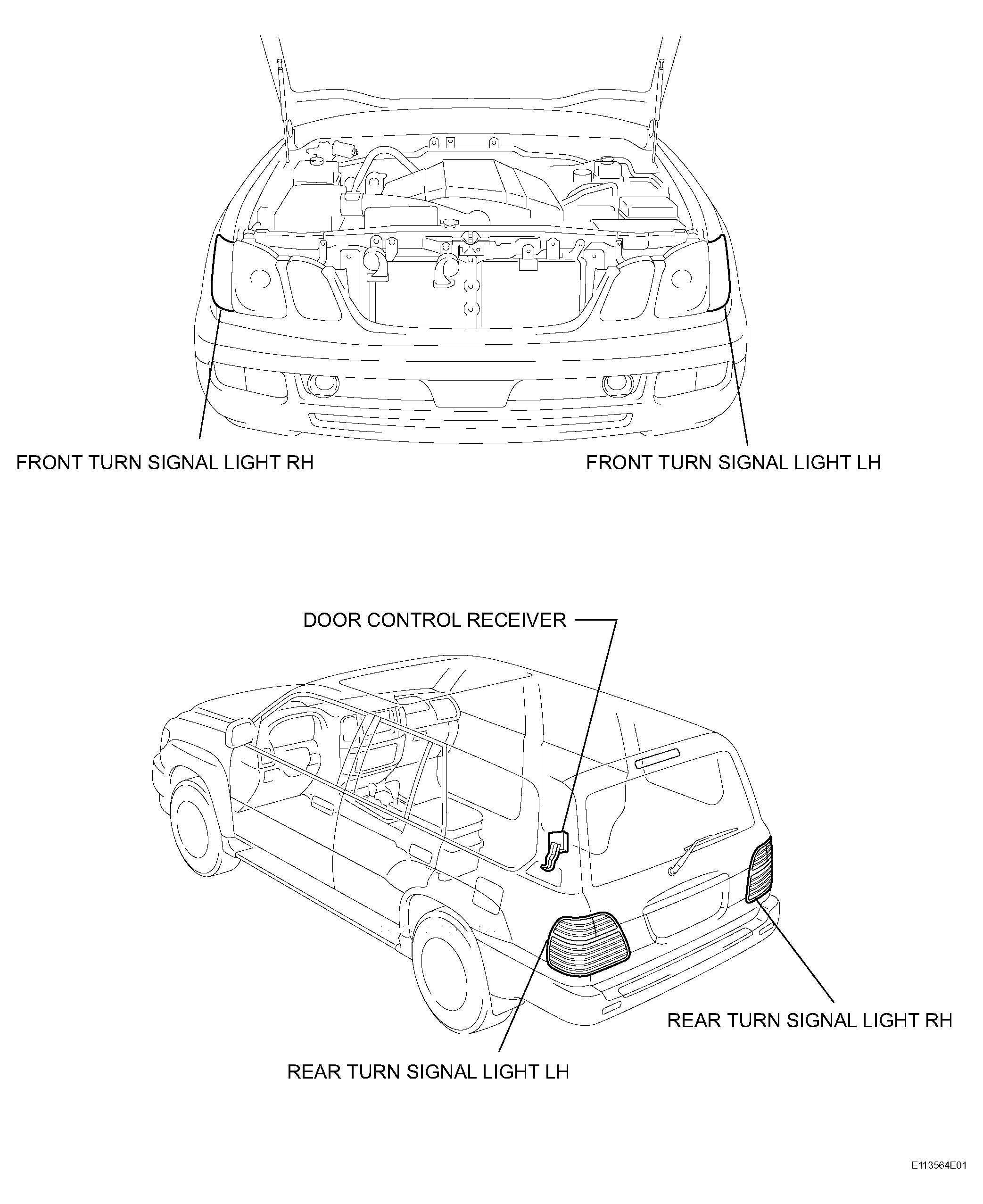

Fig 2: Identifying Wireless Door Lock Control System Parts Location (2 Of 2)
G04065201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
