Turn Signal Light Switch: Components

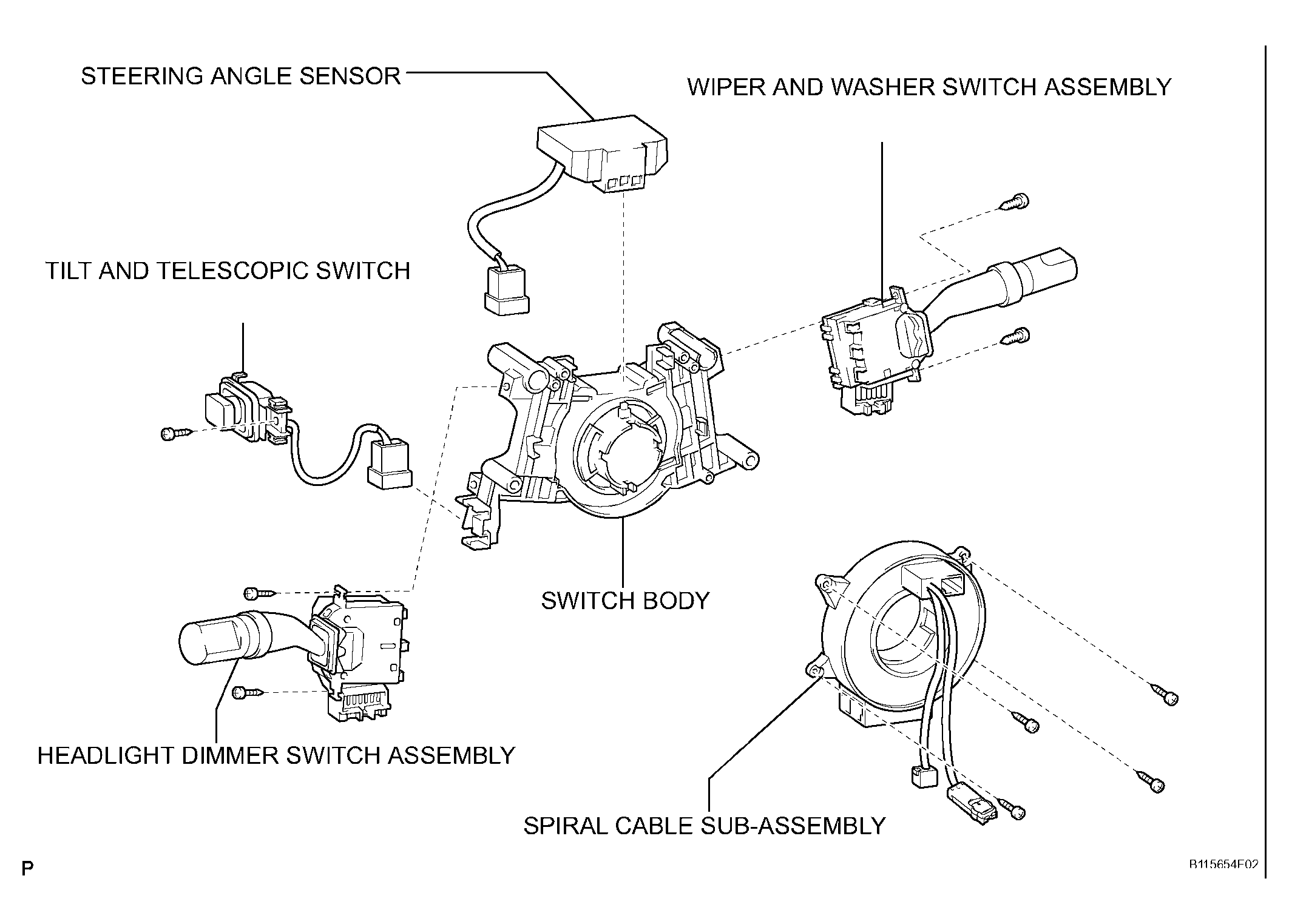

Fig 1: Identifying Components Turn Signal Light Switch
G04065038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
