Child Restraint Seat Anchor Bracket: Components

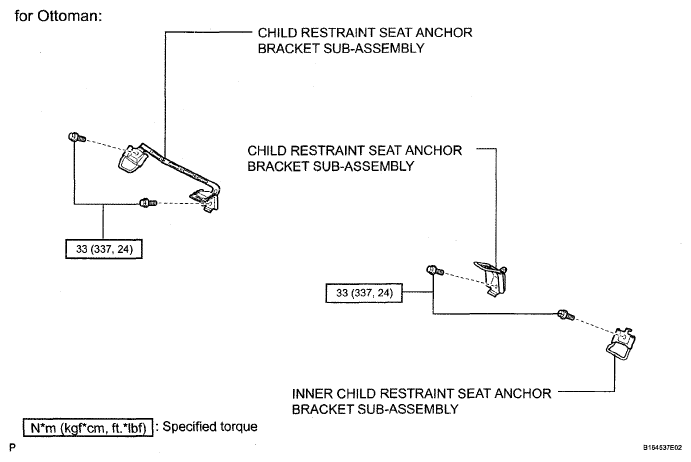

Fig 1: Child Restraint Seat Anchor Bracket Replacement Components With Torque Specifications (1 Of 2)
G04944549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

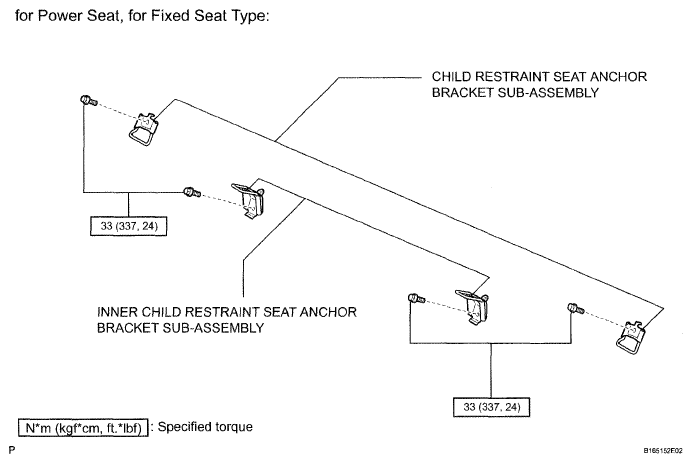

Fig 2: Child Restraint Seat Anchor Bracket Replacement Components With Torque Specifications (2 Of 2)
G04944550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
