Compressor And Magnetic Clutch: Components
Fig 1: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

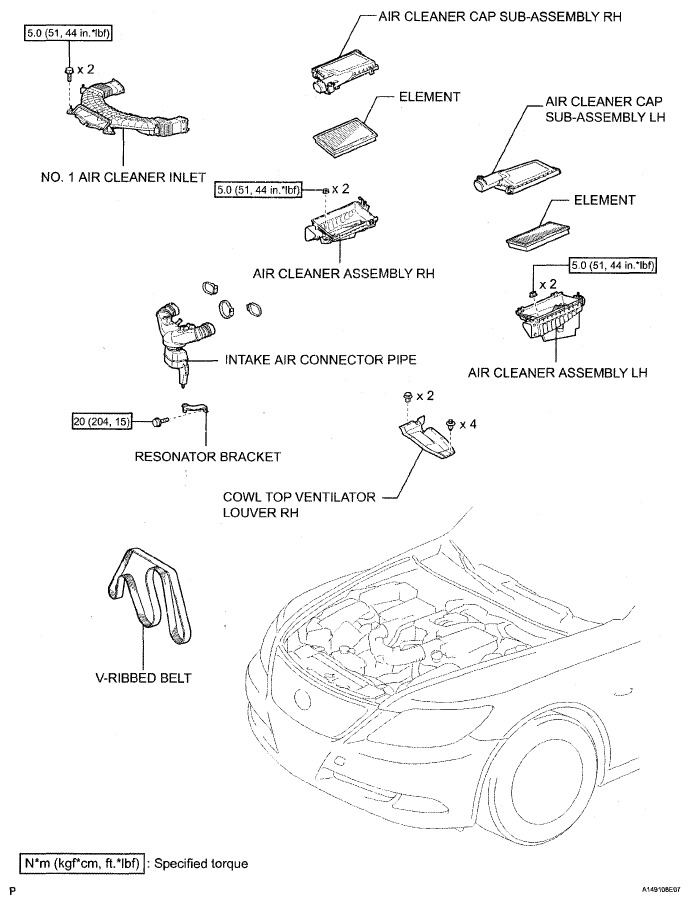

Fig 3: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

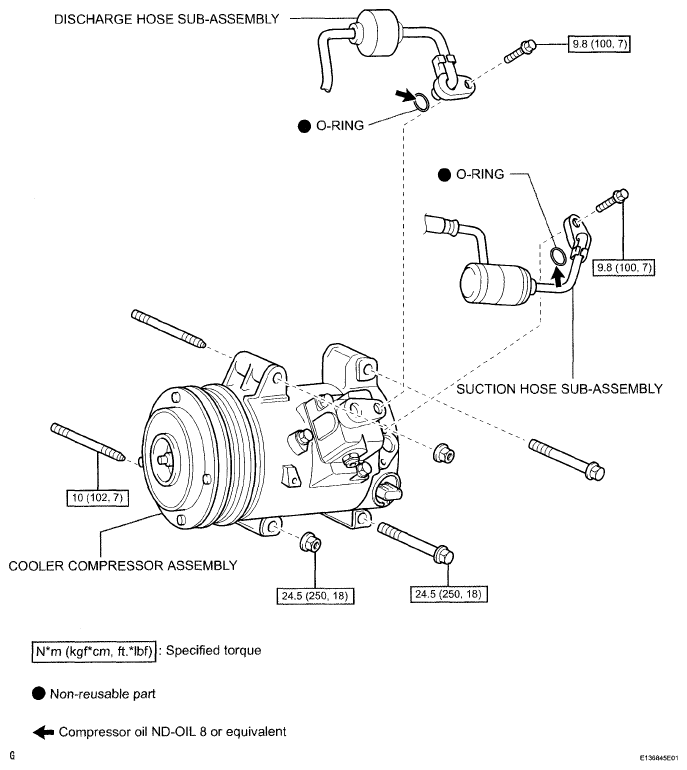

Fig 4: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

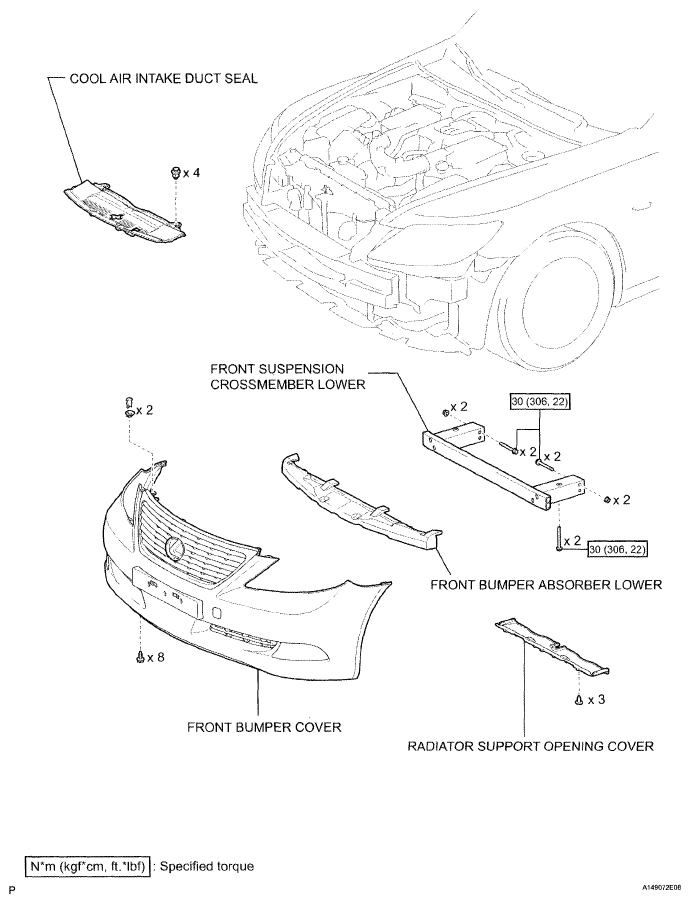

Fig 5: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

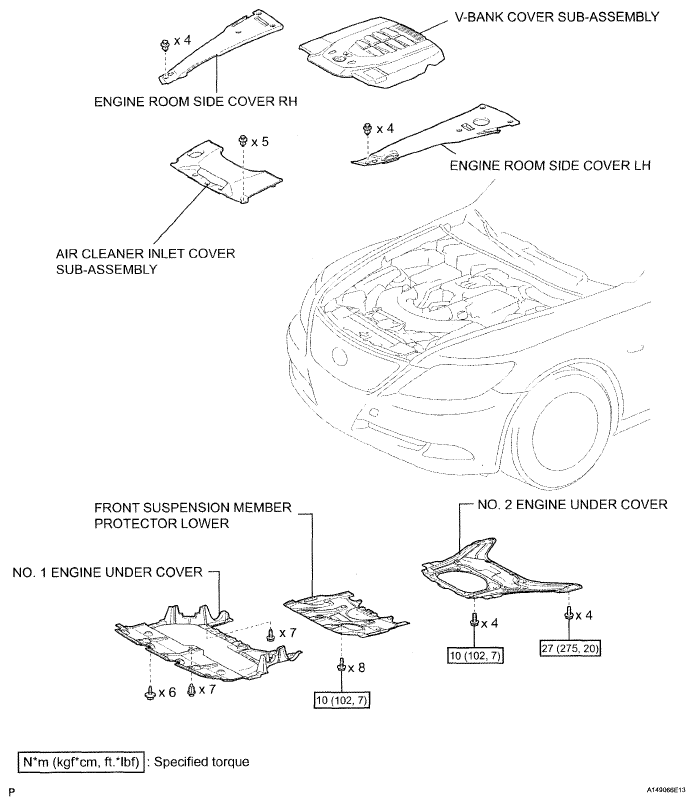

Fig 6: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
