Blower Unit: Installation

  1. INSTALL AIR FILTER
    1. Attach the 2 claws to install the filter.
    Fig 1: Locating Air Filter Claws
    G04950664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY
    1. Install the motor with the 3 screws.
    Fig 2: Locating Blower With Fan Motor Sub-Assembly Screws
    G04950663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL DAMPER SERVO SUB-ASSEMBLY
    1. Install the damper servo with the 3 screws.
    Fig 3: Locating Damper Servo Screws
    G04950662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BLOWER ASSEMBLY
    1. Attach the claw to install the blower unit.
    2. Connect the connector.
    3. Install the screw.

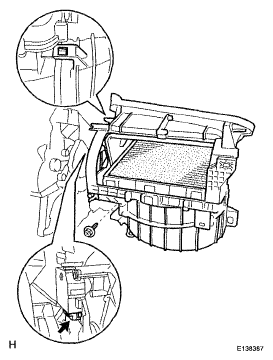

    Fig 4: Identifying Blower Assembly Screw
    G04950524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR CONDITIONING UNIT
    1. Install the air conditioning unit (see INSTALLATION  ).
