Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

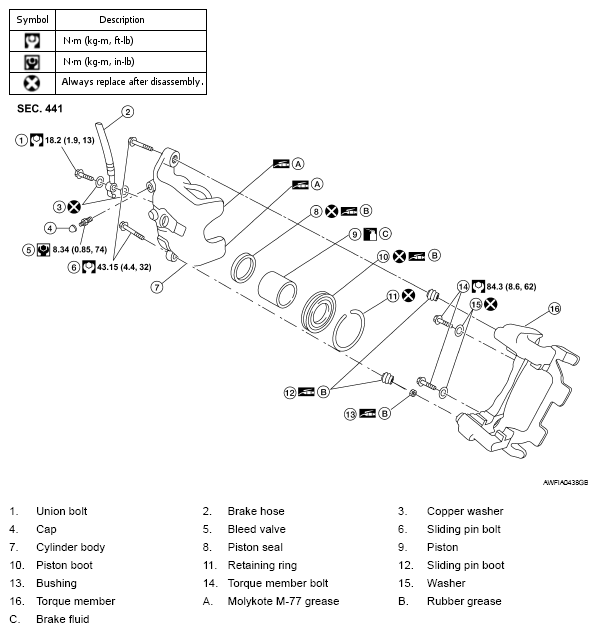

Fig 1: Rear Disc Brake Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not remove the torque member, pads, shims, shim covers, and pad retainers when disassembling and assembling the cylinder body.
