Diagnostic Procedure 1, Check "L" Terminal Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For trouble diagnoses with Battery/Starting/Charging system tester, see TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER  .
NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS  .

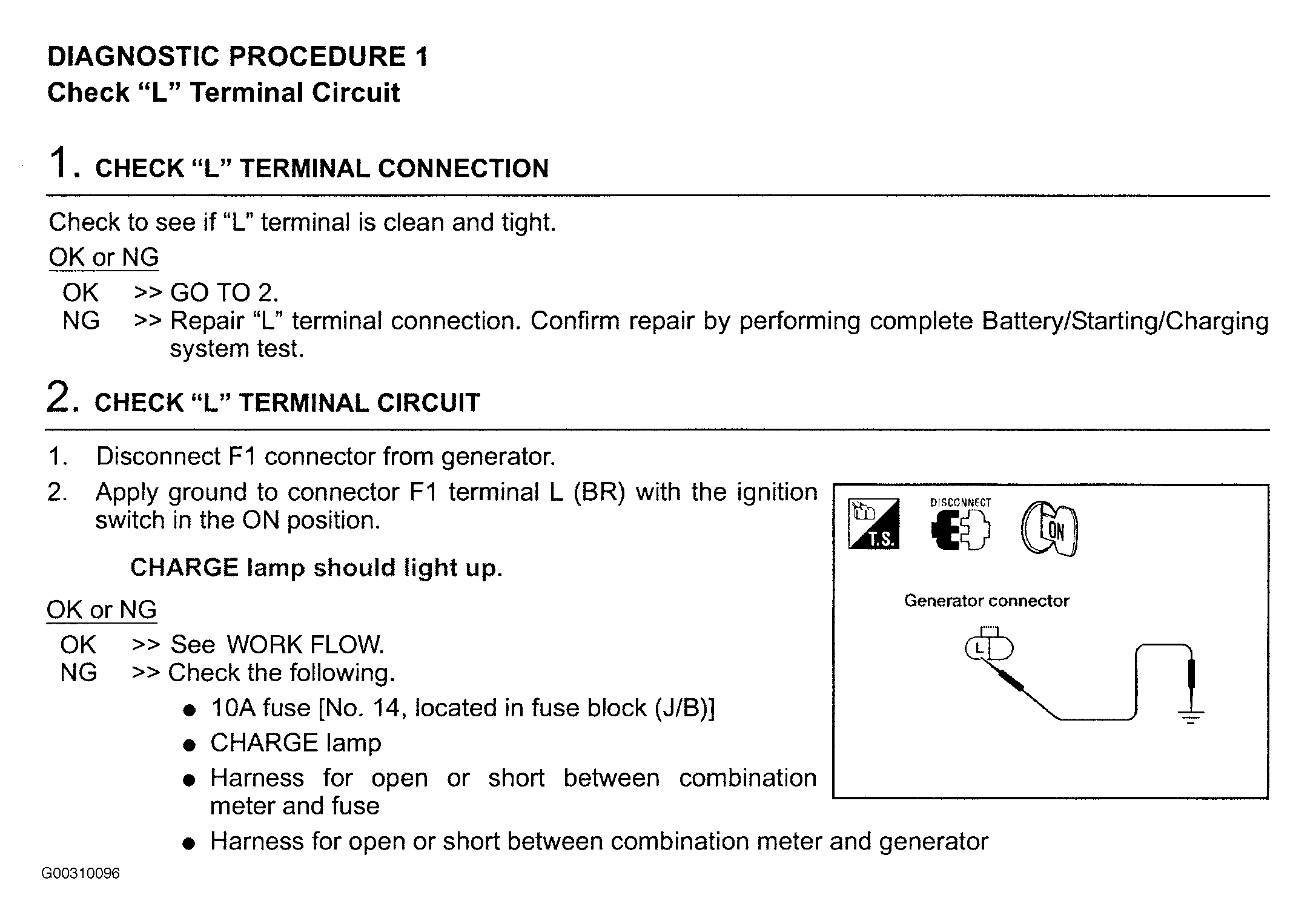

For diagnostic procedure 1, check "L" terminal circuit, see Fig 1 .

Fig 1: Identifying Diagnostic Procedure 1, Check "L" Terminal Circuit
G00310096Courtesy of NISSAN MOTOR CO., U.S.A.
