Fuel Sender Gauge Assembly: Inspection

  1. INSPECT FUEL SENDER GAUGE ASSEMBLY (for LH Side)
    1. Inspect the fuel sender gauge.
      1. Check that the float moves smoothly between F and E.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        FUEL SENDER GAUGE ASSEMBLY (FOR LH SIDE)

        Tester Connection Condition Resistance
        1 (FE) - 2 (S) F 6.5 to 8.5 Ω
        1 (FE) - 2 (S) E 184.8 to 188.8 Ω

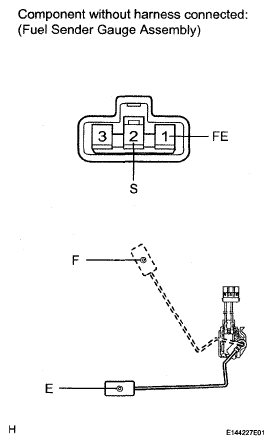

        Fig 1: Identifying Connector Terminals Of Fuel Sender Gauge Assembly
        G04945213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the value is not as specified, replace the fuel sender gauge assembly.

  2. INSPECT FUEL SENDER GAUGE ASSEMBLY (for RH Side)
    1. Inspect the fuel sender gauge.
      1. Check that the float moves smoothly between F and E.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        FUEL SENDER GAUGE ASSEMBLY (FOR RH SIDE)

        Tester Connection Condition Resistance
        1 (FS) - 2 (E) F 6.5 to 8.5 Ω
        1 (FS) - 2 (E) E 220.7 to 225.7 Ω

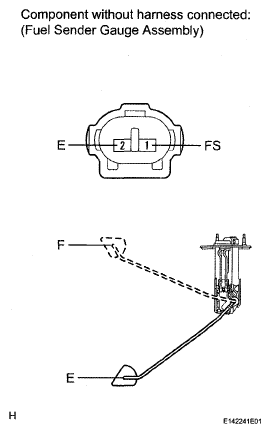

        Fig 2: Identifying Connector Terminals Of Fuel Sender Gauge Assembly
        G04945214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the value is not as specified, replace the fuel sender gauge assembly.
