Windshield Deicer does not Operate: Wiring Diagram

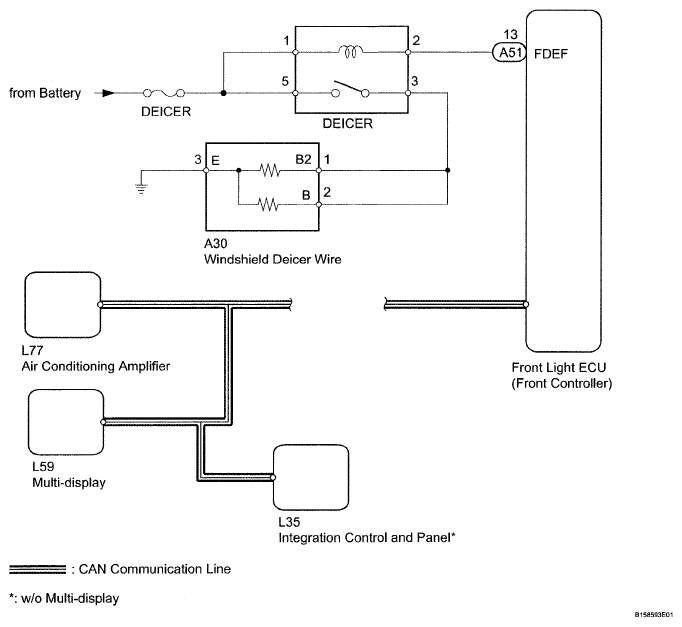

Fig 1: Windshield Deicer Does Not Operate - Wiring Diagram
G04952232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
