Parts Location

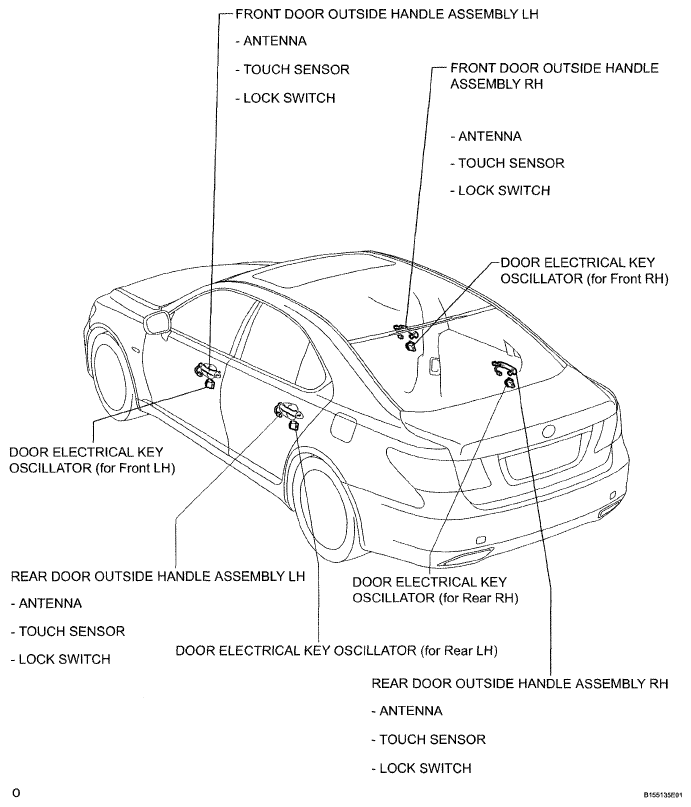

Fig 1: Identifying Smart Access System With Push-Button Start Components Parts Location (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

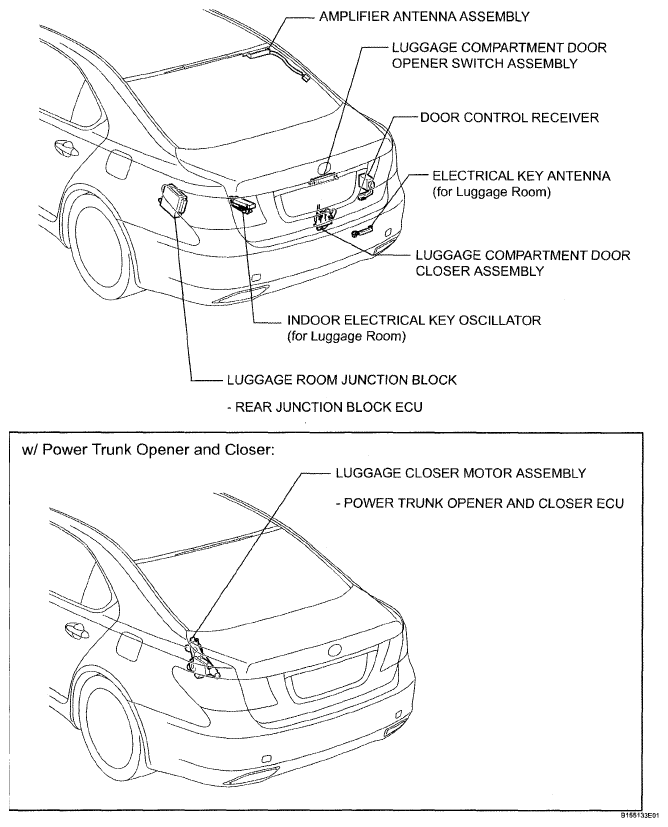

Fig 2: Identifying Smart Access System With Push-Button Start Components Parts Location (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

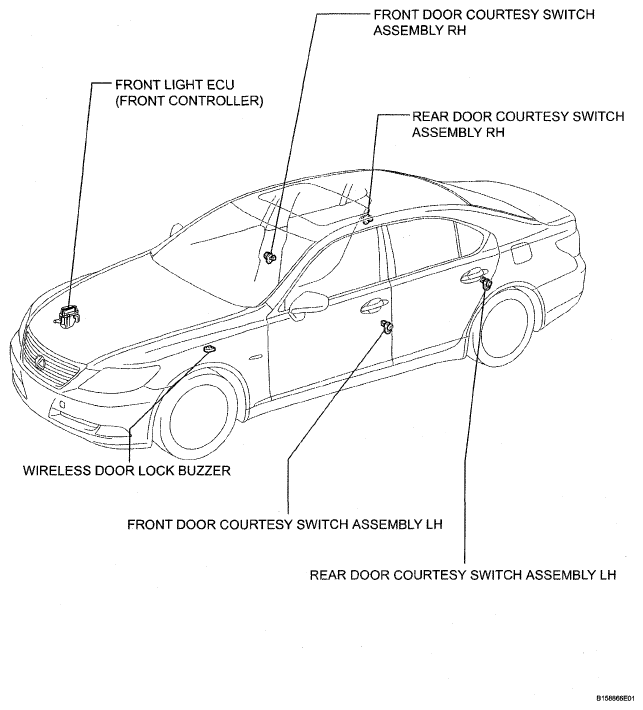

Fig 3: Identifying Smart Access System With Push-Button Start Components Parts Location (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

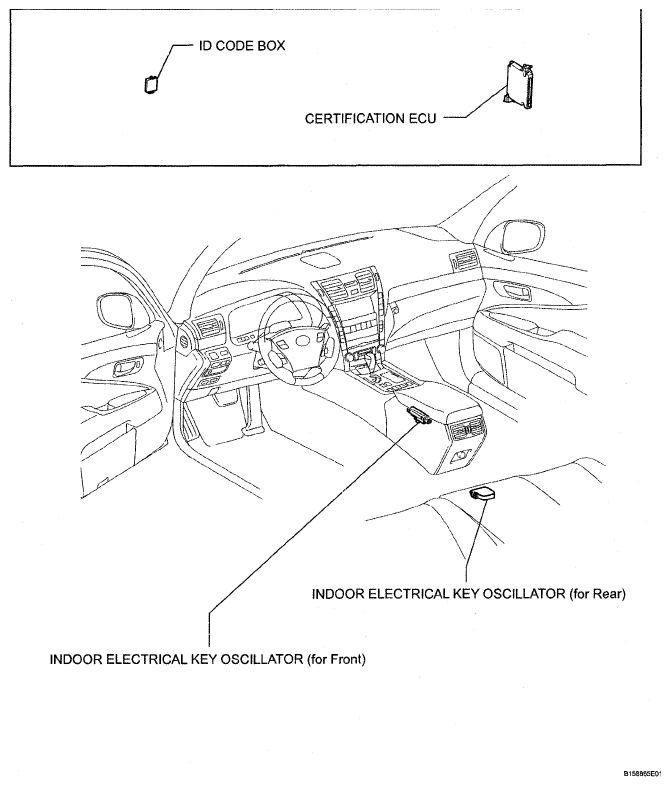

Fig 4: Identifying Smart Access System With Push-Button Start Components Parts Location (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

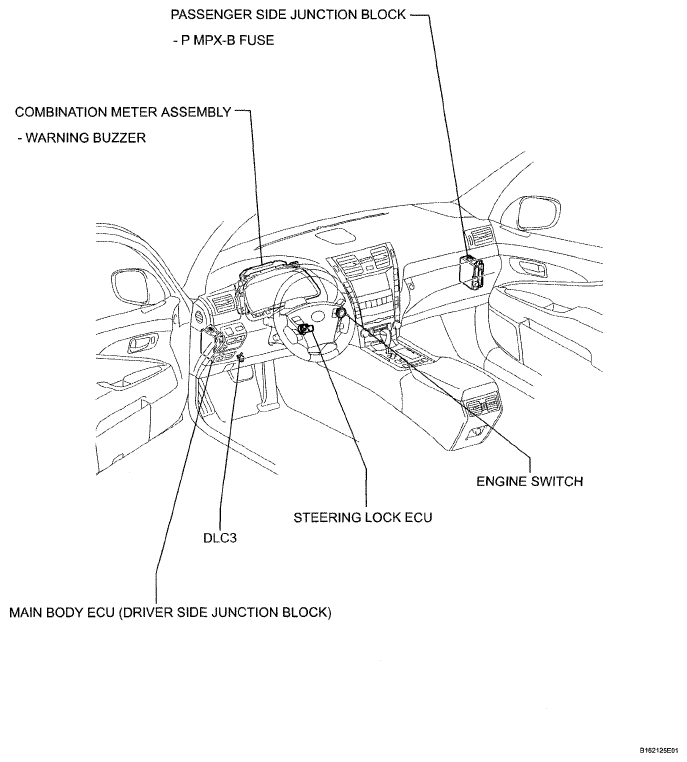

Fig 5: Identifying Smart Access System With Push-Button Start Components Parts Location (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

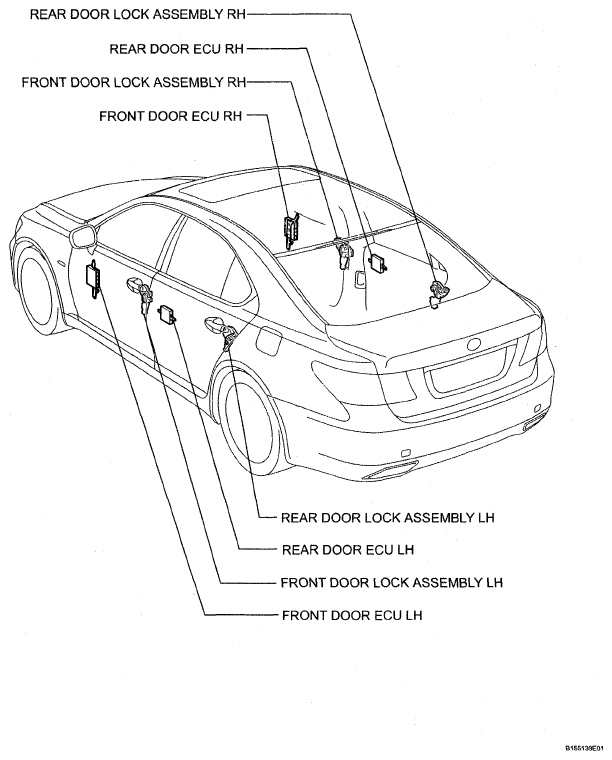

Fig 6: Identifying Smart Access System With Push-Button Start Components Parts Location (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
