Driver Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

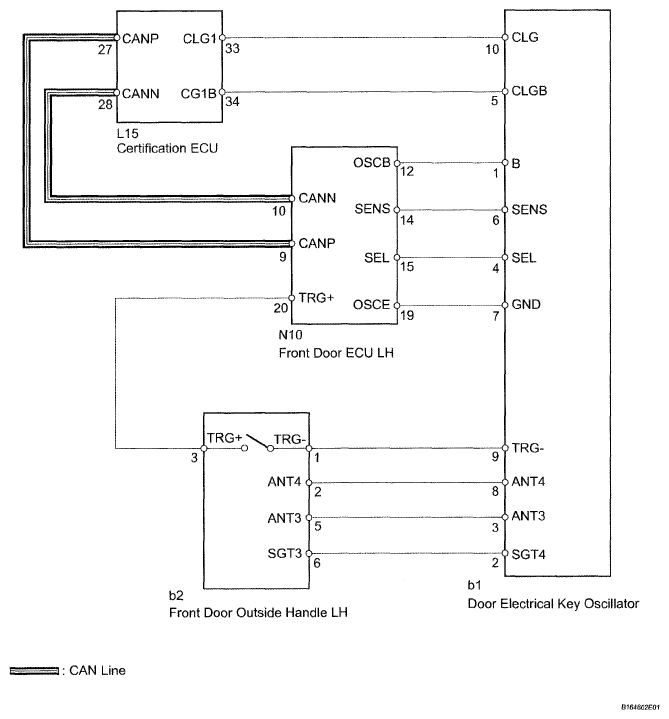

Fig 1: Driver Side Door Entry Lock And Unlock Functions - Wiring Diagram
G04951644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
