Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Door Lock
>>
Power Door Lock Control System
>>
Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parts Location

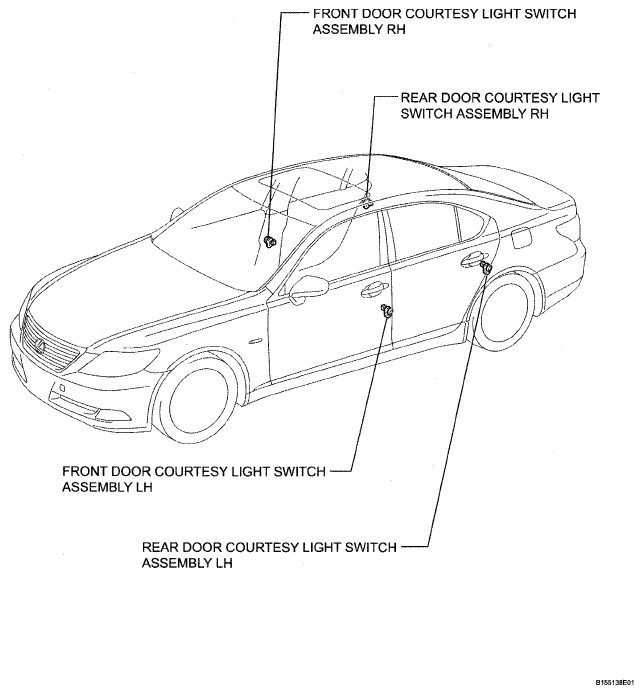

Fig 1: Locating Power Door Lock Control System Components (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

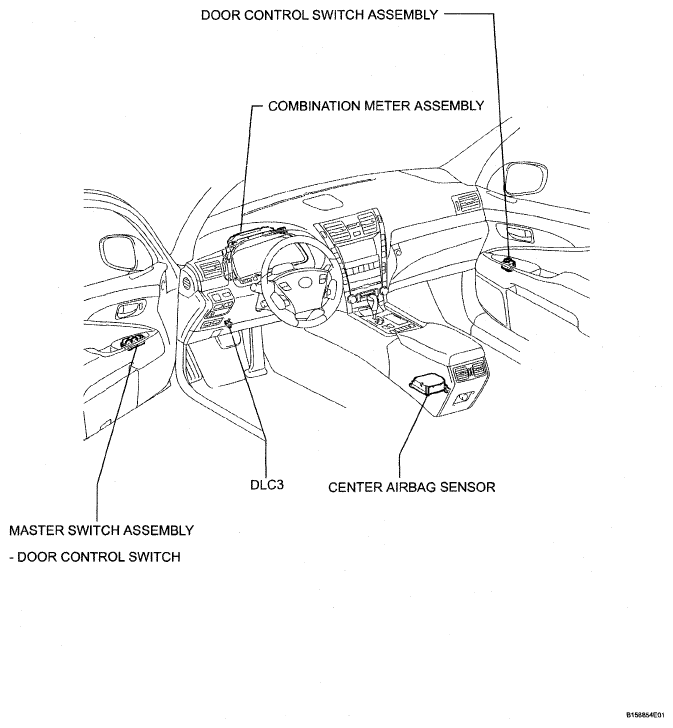

Fig 2: Locating Power Door Lock Control System Components (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

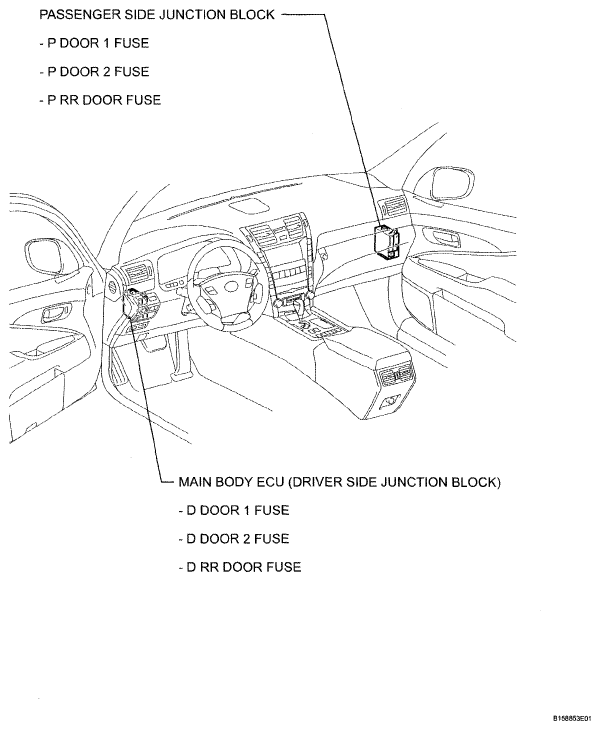

Fig 3: Locating Power Door Lock Control System Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

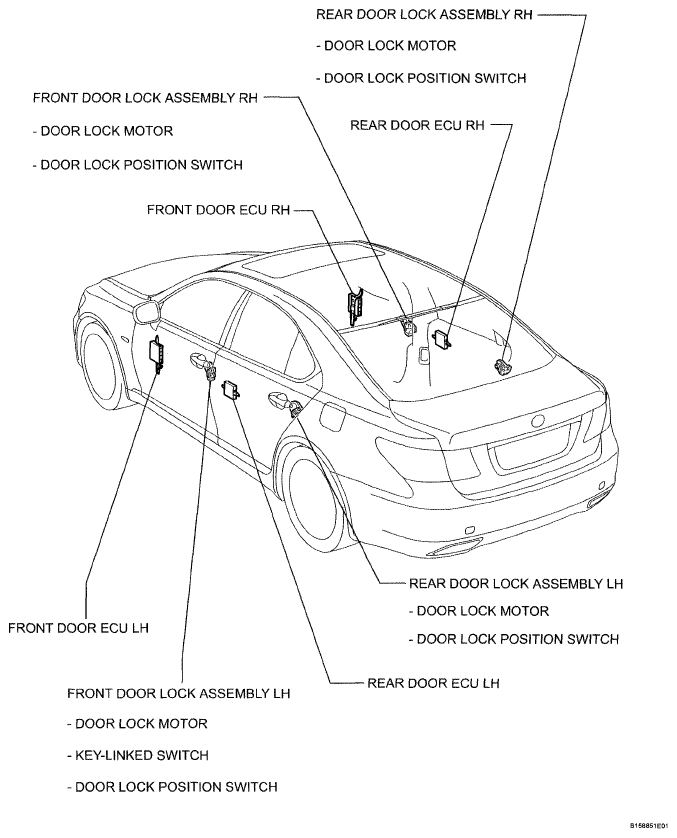

Fig 4: Locating Power Door Lock Control System Components (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

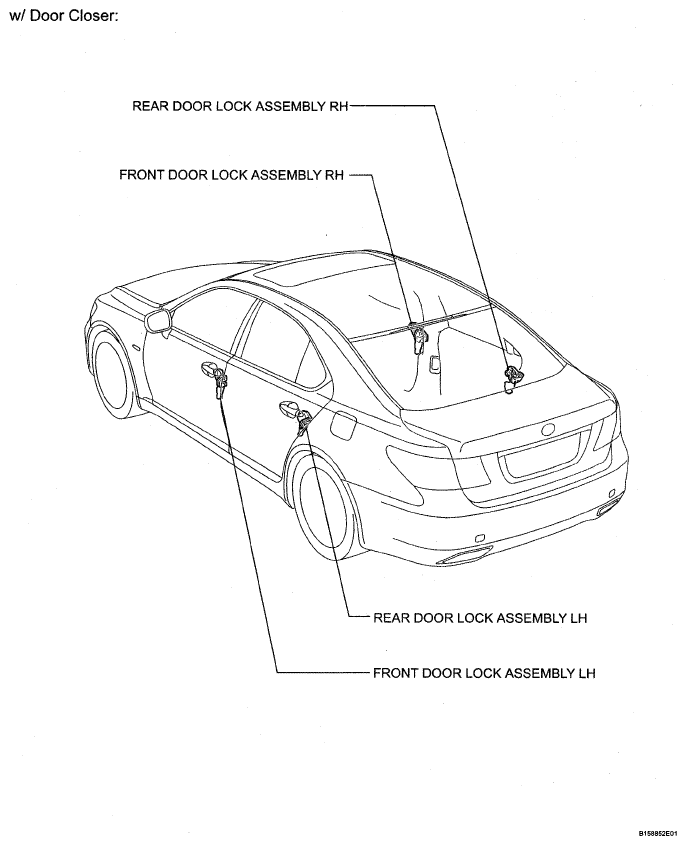

Fig 5: Locating Power Door Lock Control System Components (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
