Parts Location

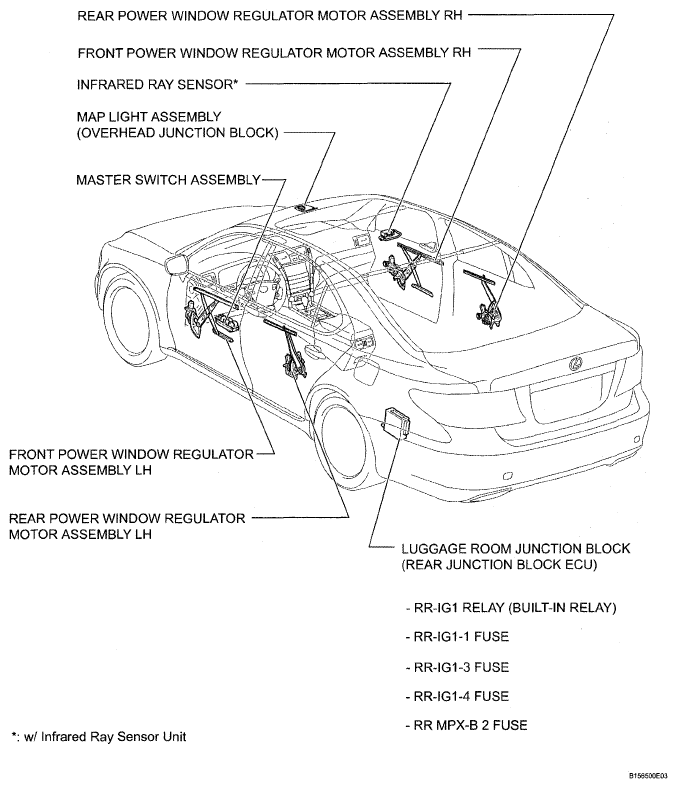

Fig 1: LIN Communication System Parts Location (1 Of 6)
G04946922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

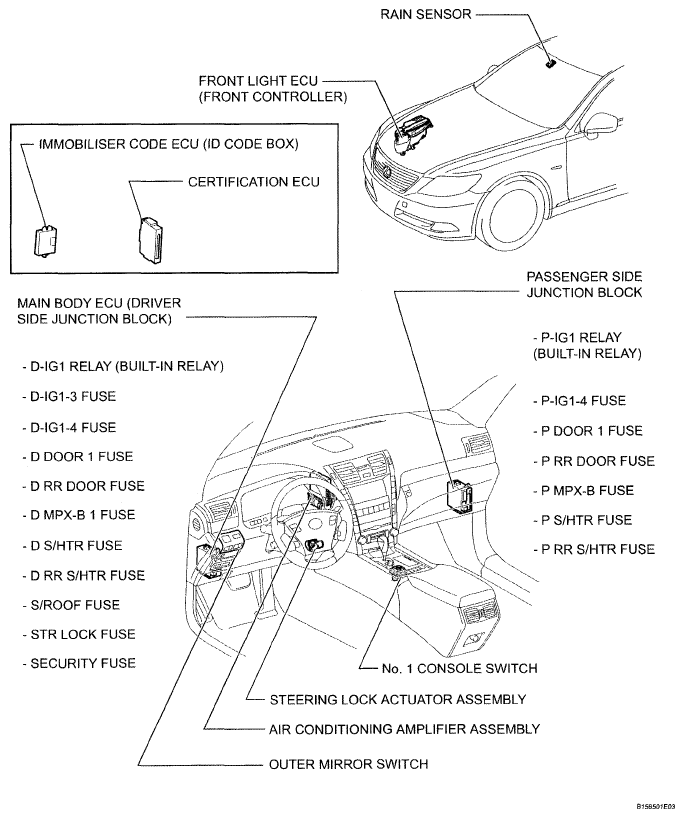

Fig 2: LIN Communication System Parts Location (2 Of 6)
G04946923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

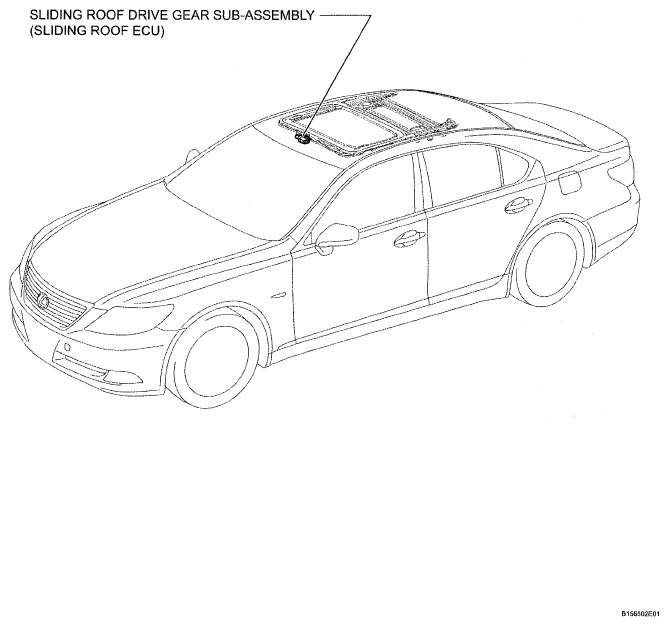

Fig 3: LIN Communication System Parts Location (3 Of 6)
G04946924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

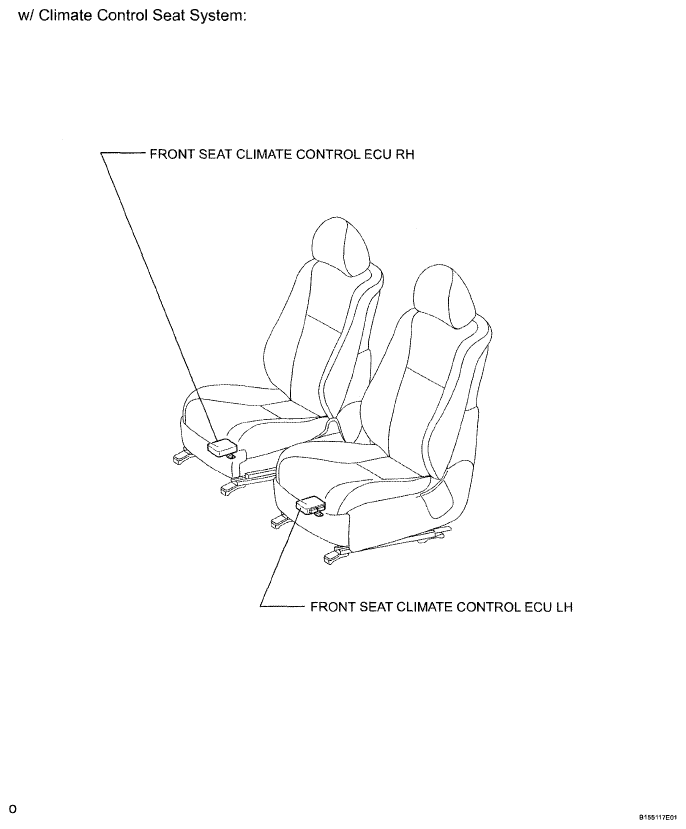

Fig 4: LIN Communication System Parts Location (4 Of 6)
G04946925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

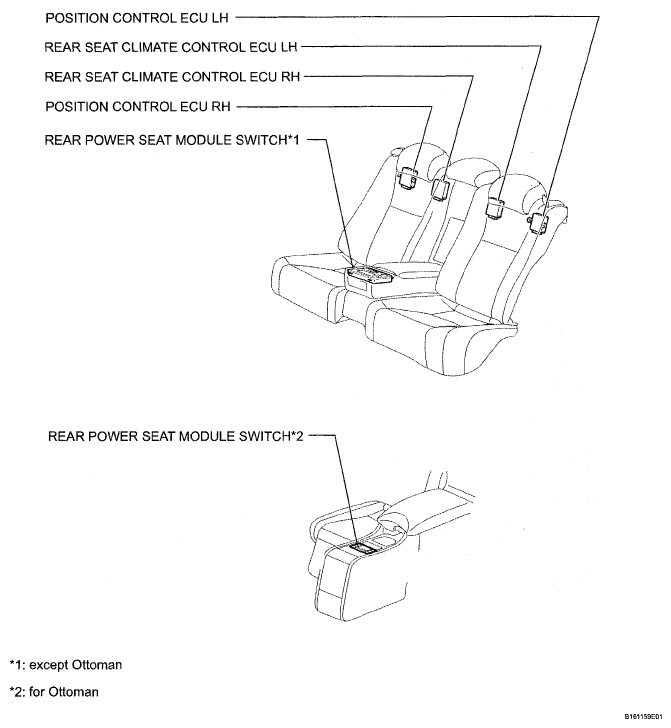

Fig 5: LIN Communication System Parts Location (5 Of 6)
G04946926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

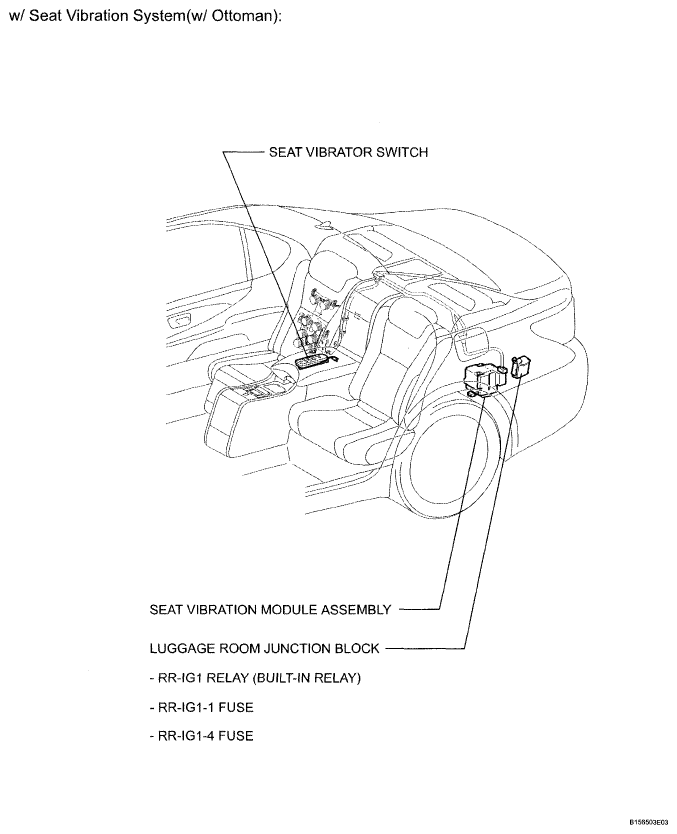

Fig 6: LIN Communication System Parts Location (6 Of 6)
G04946927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
