Automatic Transmission Rear Oil Seal: Components

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 6)
G04948394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Automatic Transmission Rear Oil Seal Components (2 Of 3)
G04948395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

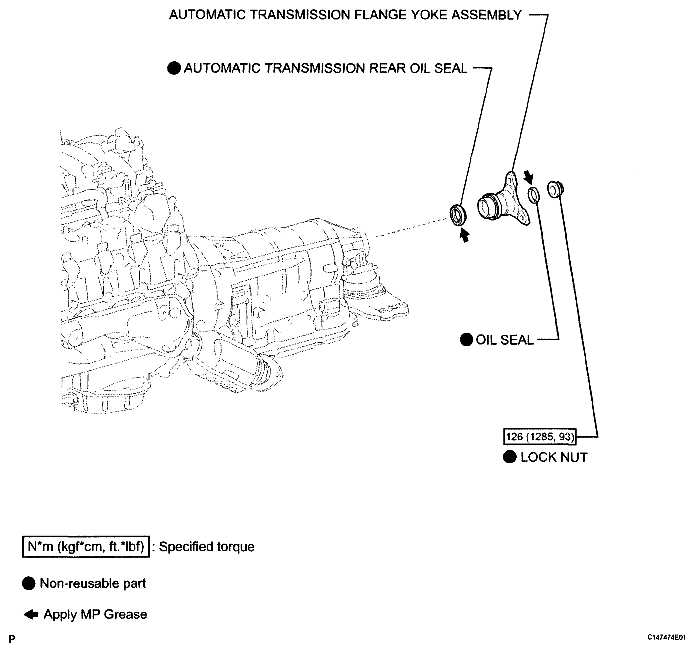

Fig 3: Identifying Automatic Transmission Rear Oil Seal Components (3 Of 3)
G04948396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
