Removal and Installation: Notes

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

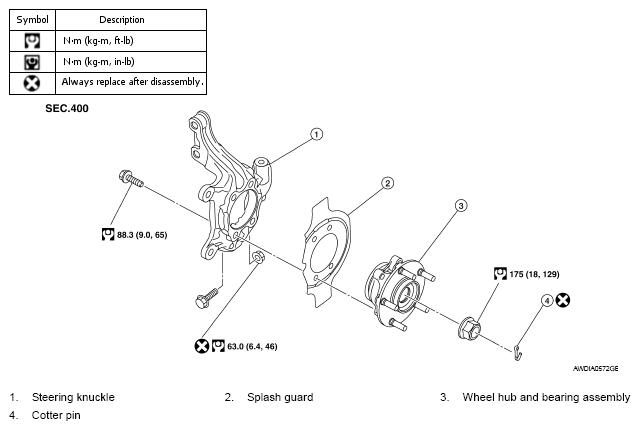

Fig 1: Wheel Hub Bearing Assembly, Splash Guard, Cotter Pin And Steering Knuckle With Torque Specifications
G05878060Courtesy of NISSAN MOTOR CO., U.S.A.
