DTC B2651 Reclining Sensor Malfunction: Wiring Diagram

Fig 1: Wiring Diagram - Reclining Sensor Malfunction (Driver Side)
G04952434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

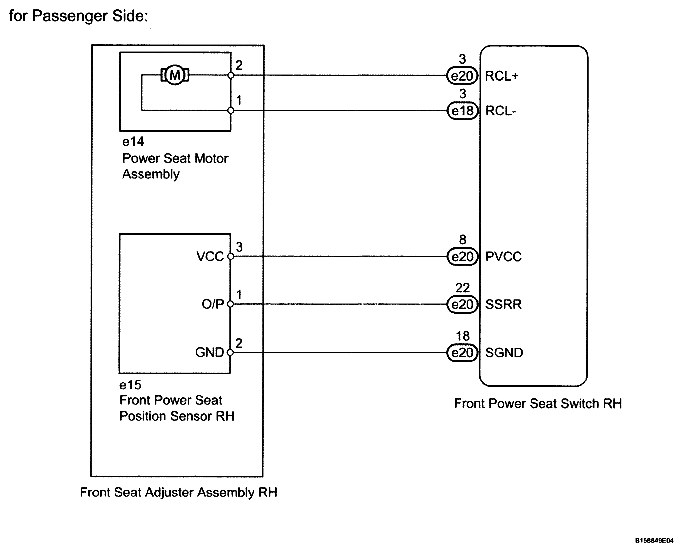

Fig 2: Wiring Diagram - Reclining Sensor Malfunction (Passenger Side)
G04952435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
