Fail-Safe Chart

FAIL-SAFE CHART

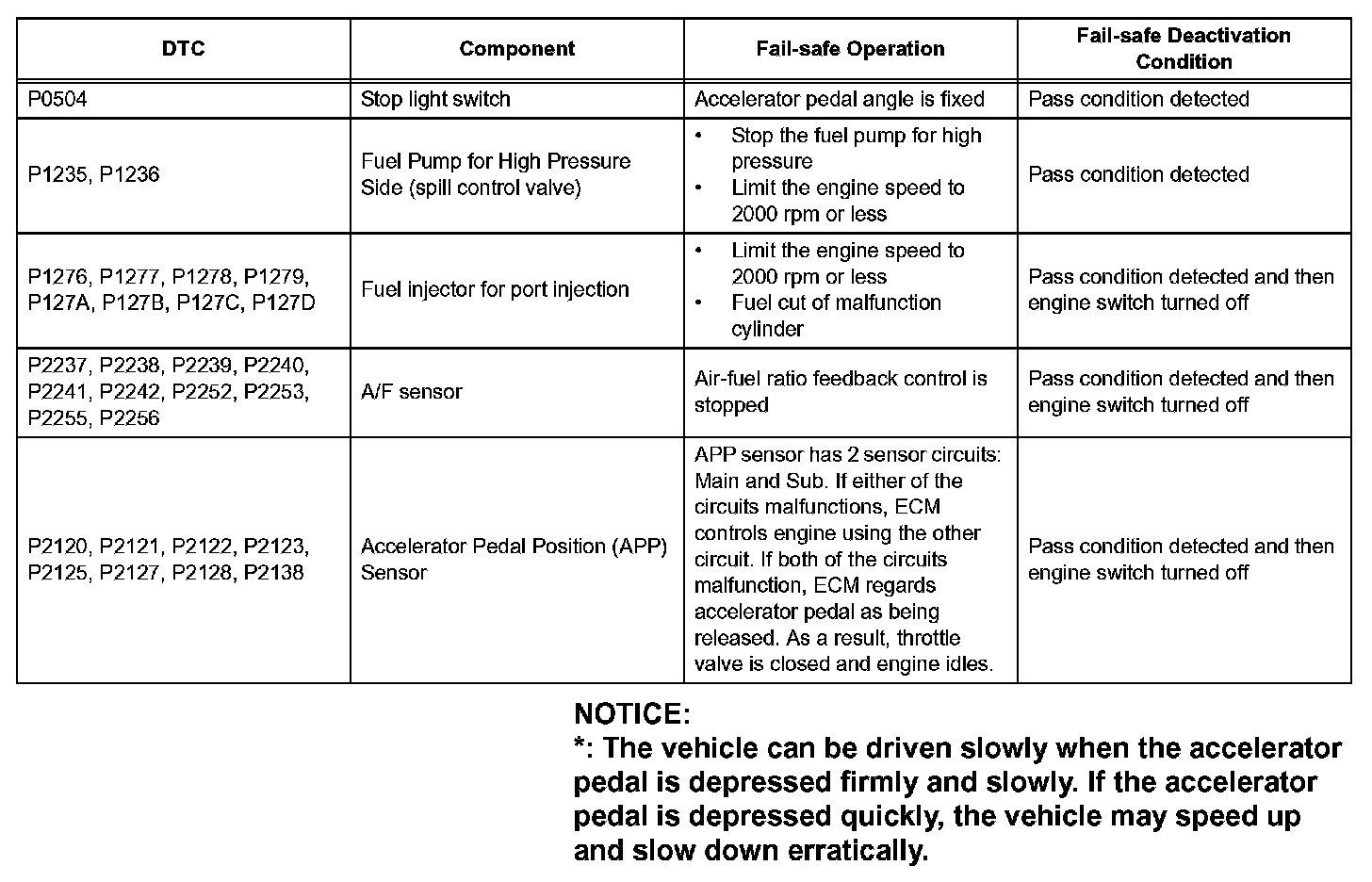

Fail-Safe Chart (Part 1):

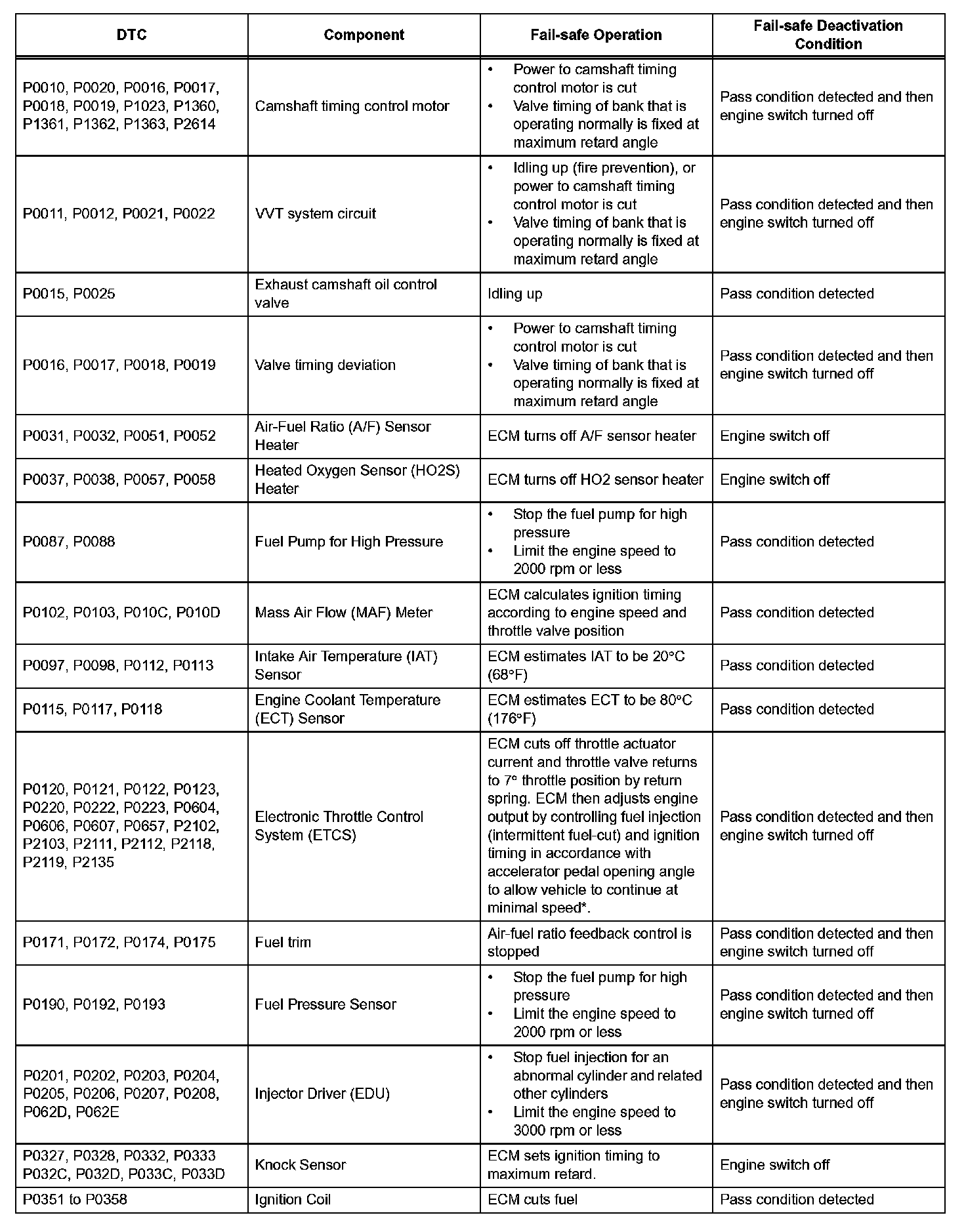

Fail-Safe Chart (Part 2):




If any of the following DTCs are set, the ECM enters fail-safe mode to allow the vehicle to be driven temporarily.
