Programming and Relearning
CUSTOMIZE PARAMETERS1. CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER OR TECHSTREAM (REFERENCE)
NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first male sure that the function is set to the default setting.
a. Connect the intelligent tester or Techstream to the DLC3.
b. Turn the engine switch on (IG).
c. Turn the tester on.
d. Enter the following menus:
1. Intelligent tester - Select: CUSTOMIZE /
2. Techstream - Select: Customize Setting /
e. Select the setting by referring to the table.
1. Intelligent tester
HINT: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

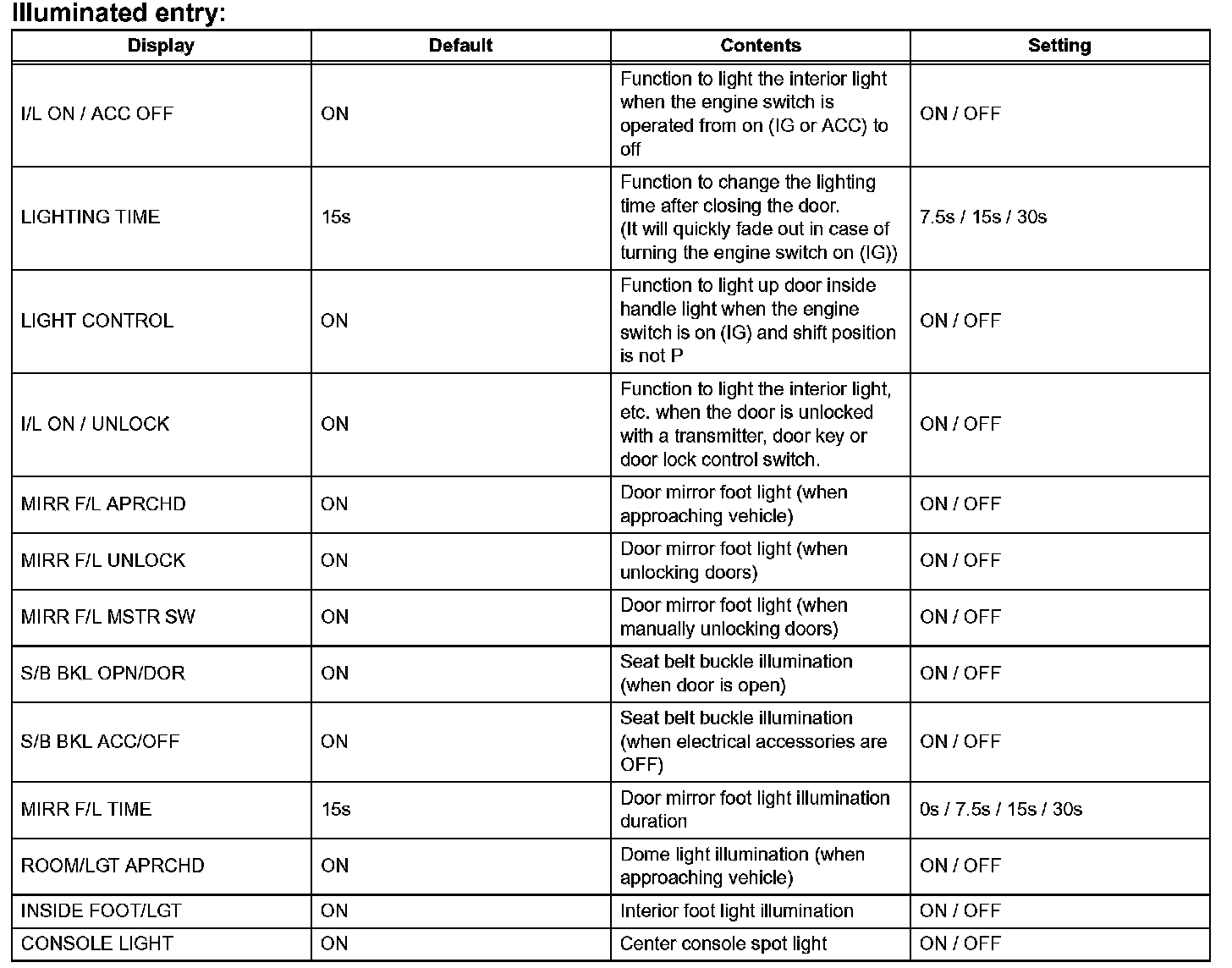

Part 1:

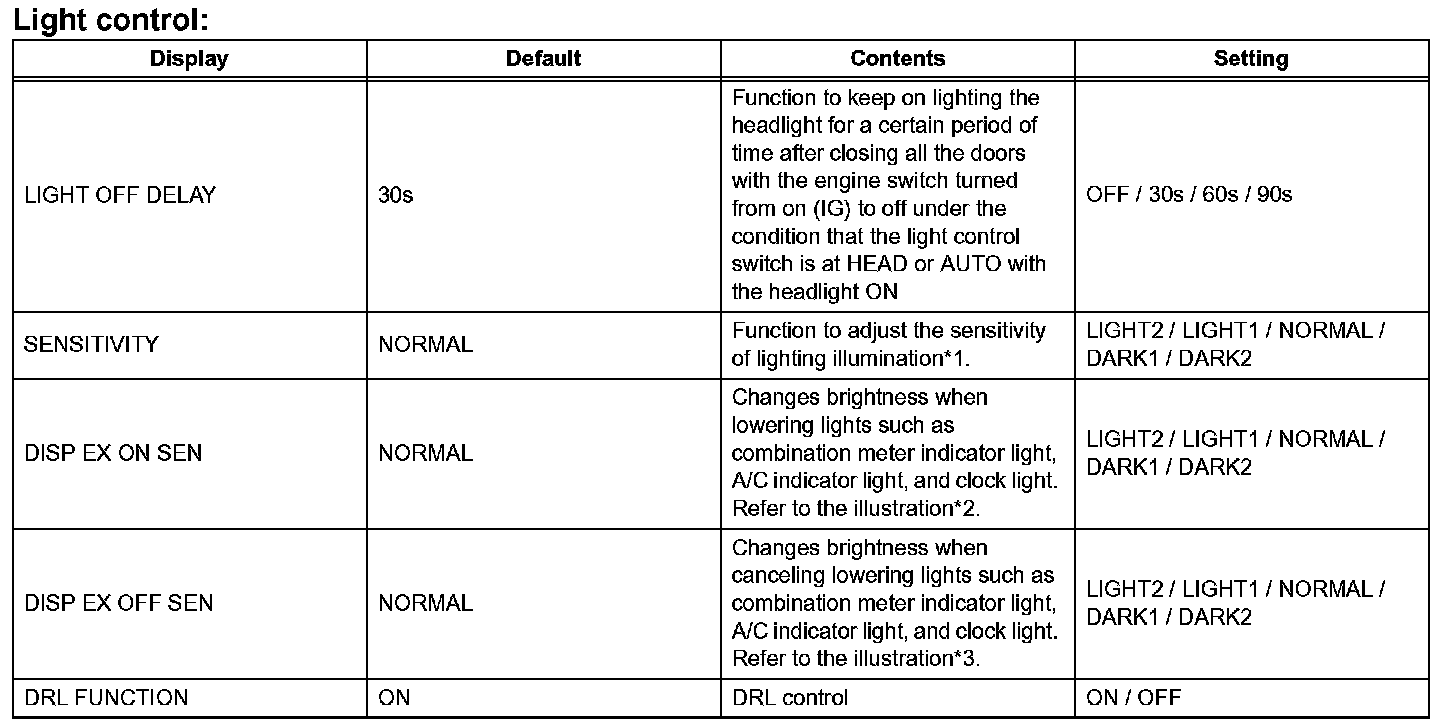

Part 2:

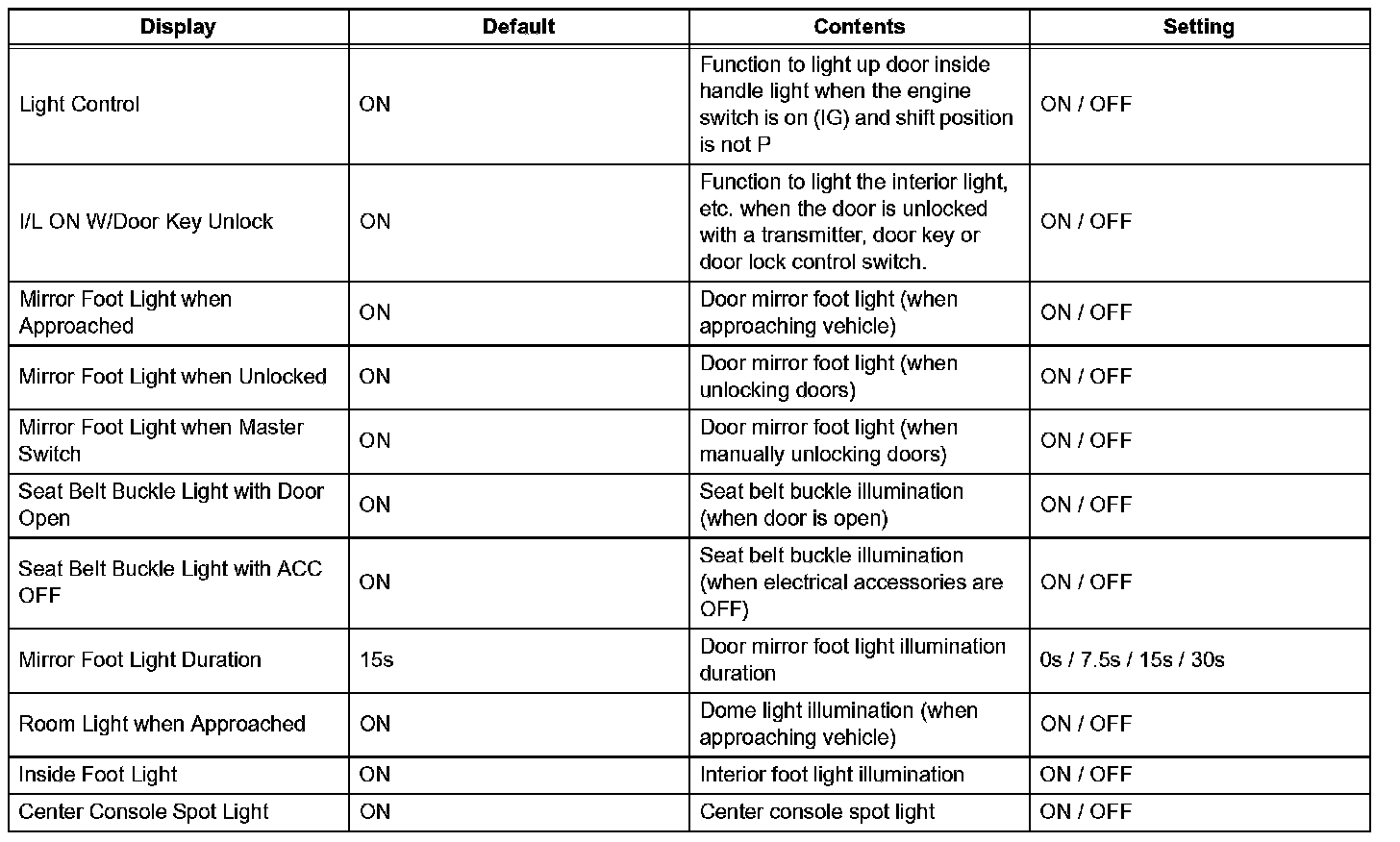

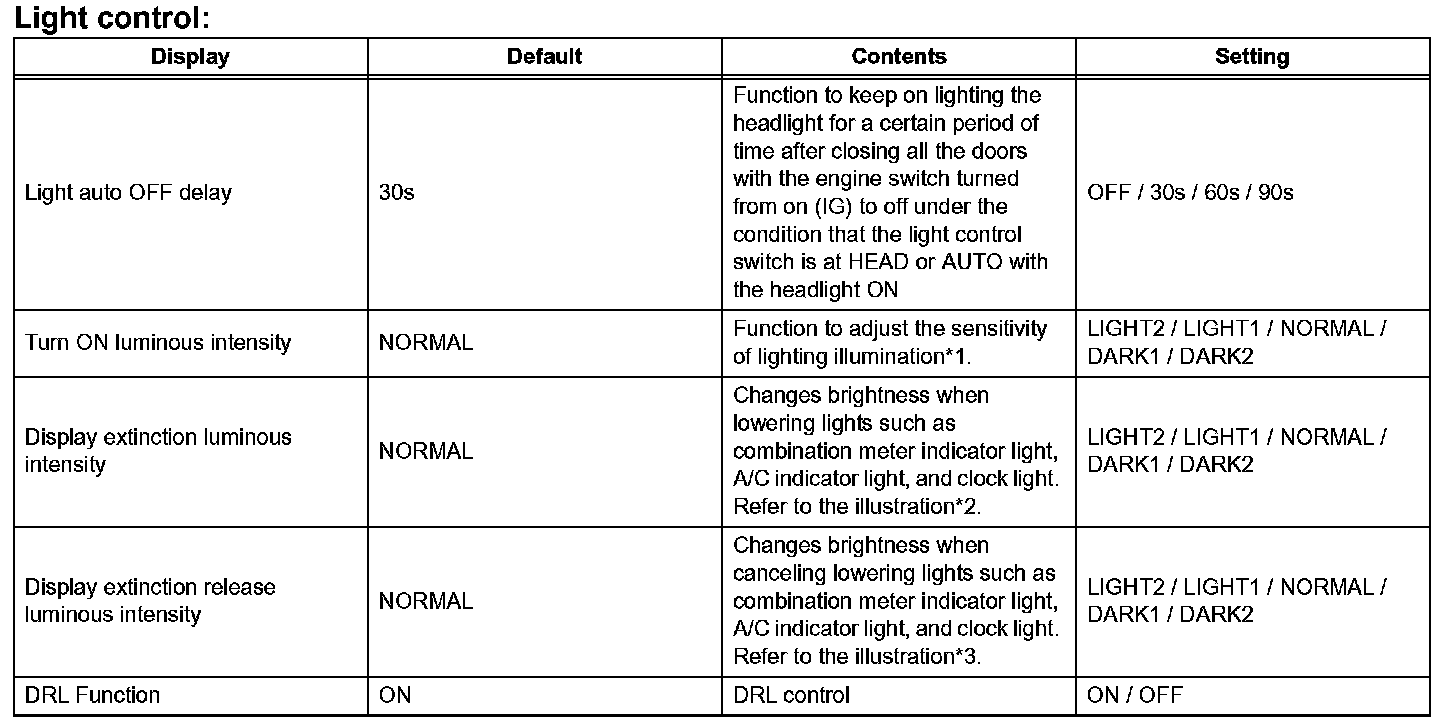

2. Techstream
HINT: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.
3. Door linked map light and personal light illumination control
Mode 1: When door is opened, map light of opened door illuminates, or personal light illuminates
Mode 2: When door is opened, all map lights and personal lights illuminate
Mode 3: Map lights and personal lights are not linked to doors
4. To change modes, press the map light assembly DOOR and ON switch simultaneously, and then turn the engine switch from off to on (IG). Each engine switch off to on (IG) operation will change the mode (Mode 1 -> Mode 2 -> Mode 3 -> Mode 1).
HINT: After changing modes, the map light responds by blinking as follows: Mode 1: once; Mode 2: twice; Mode 3: three times.
