Smart Access System With Push-Button Start

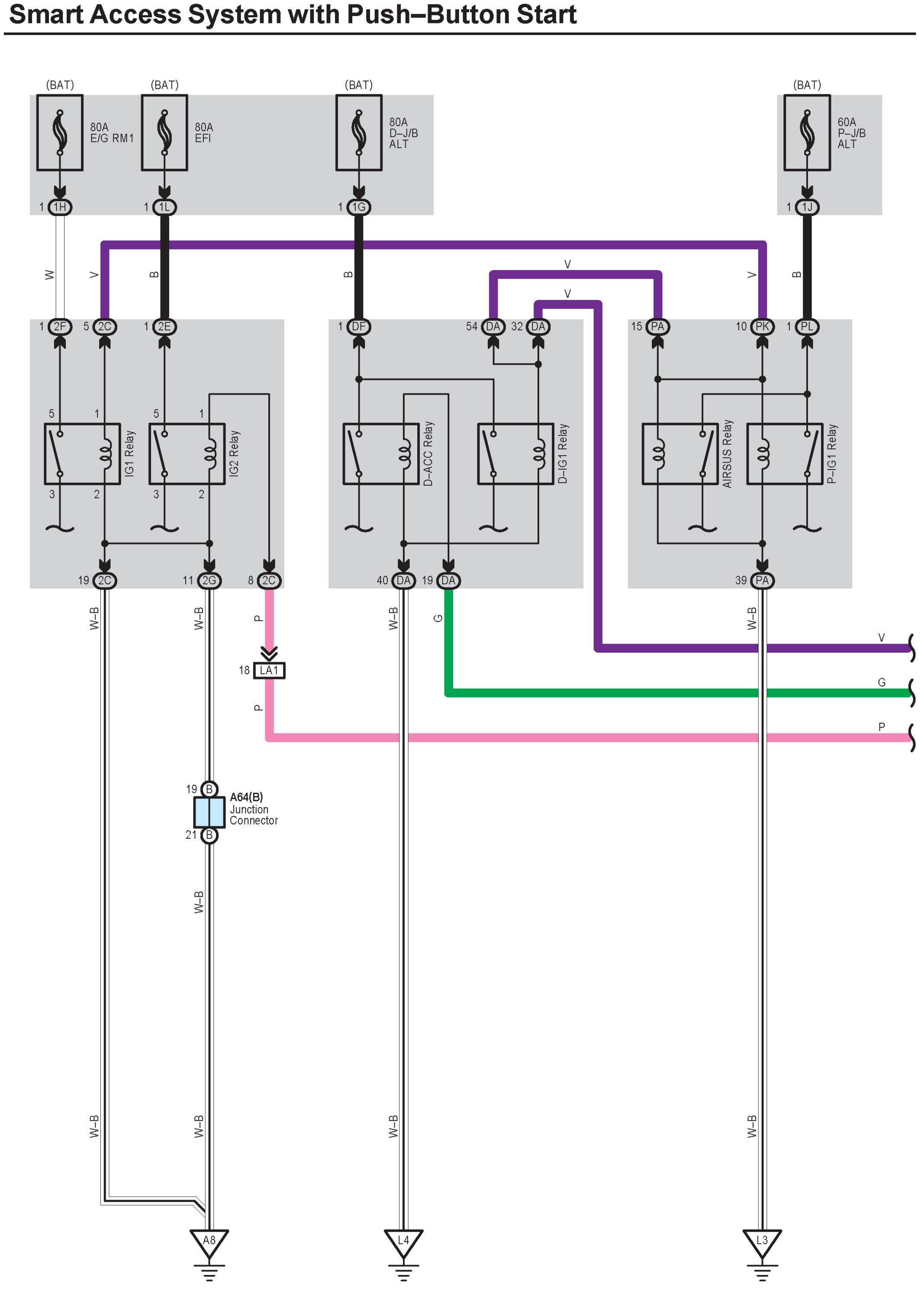

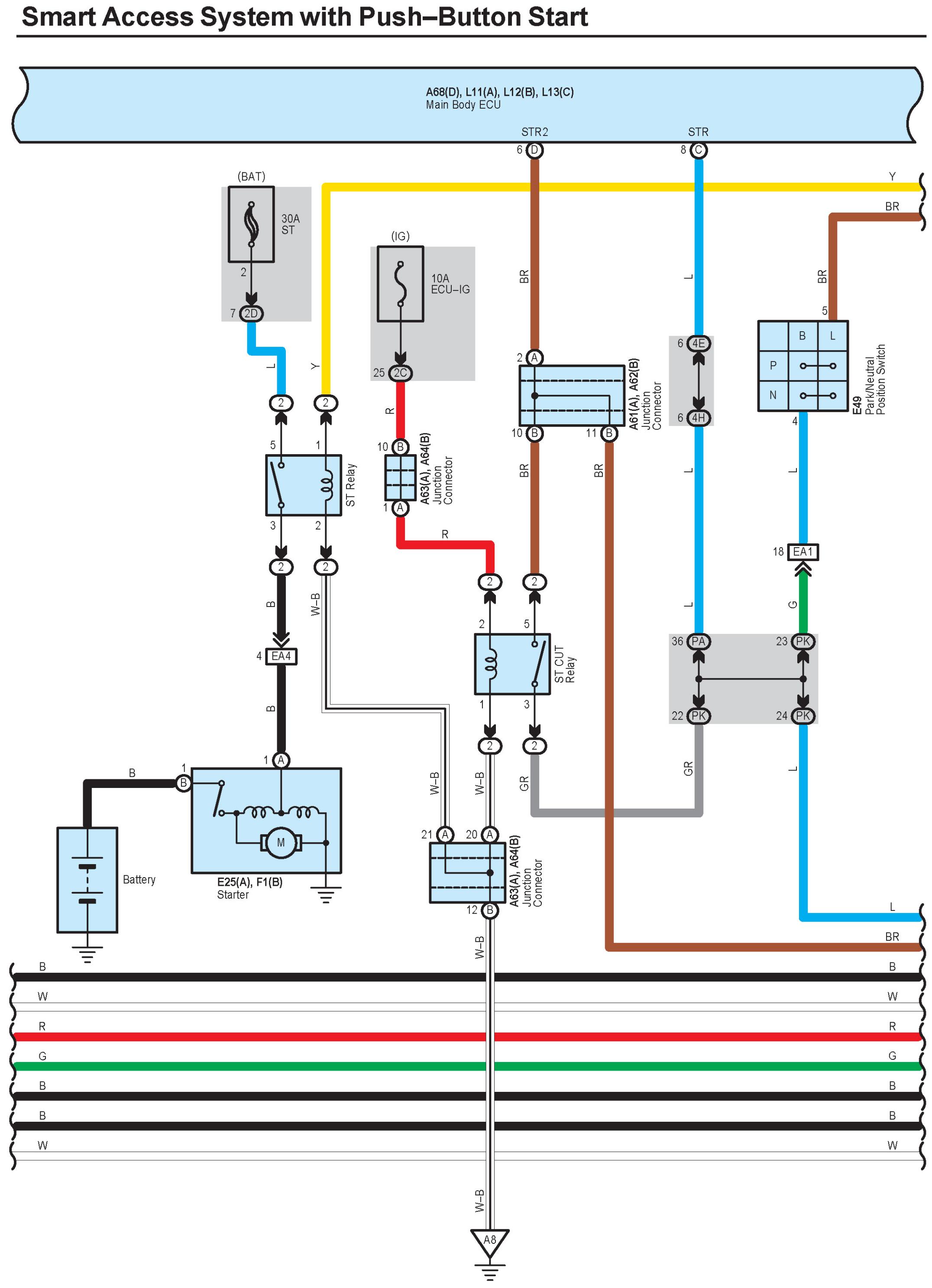

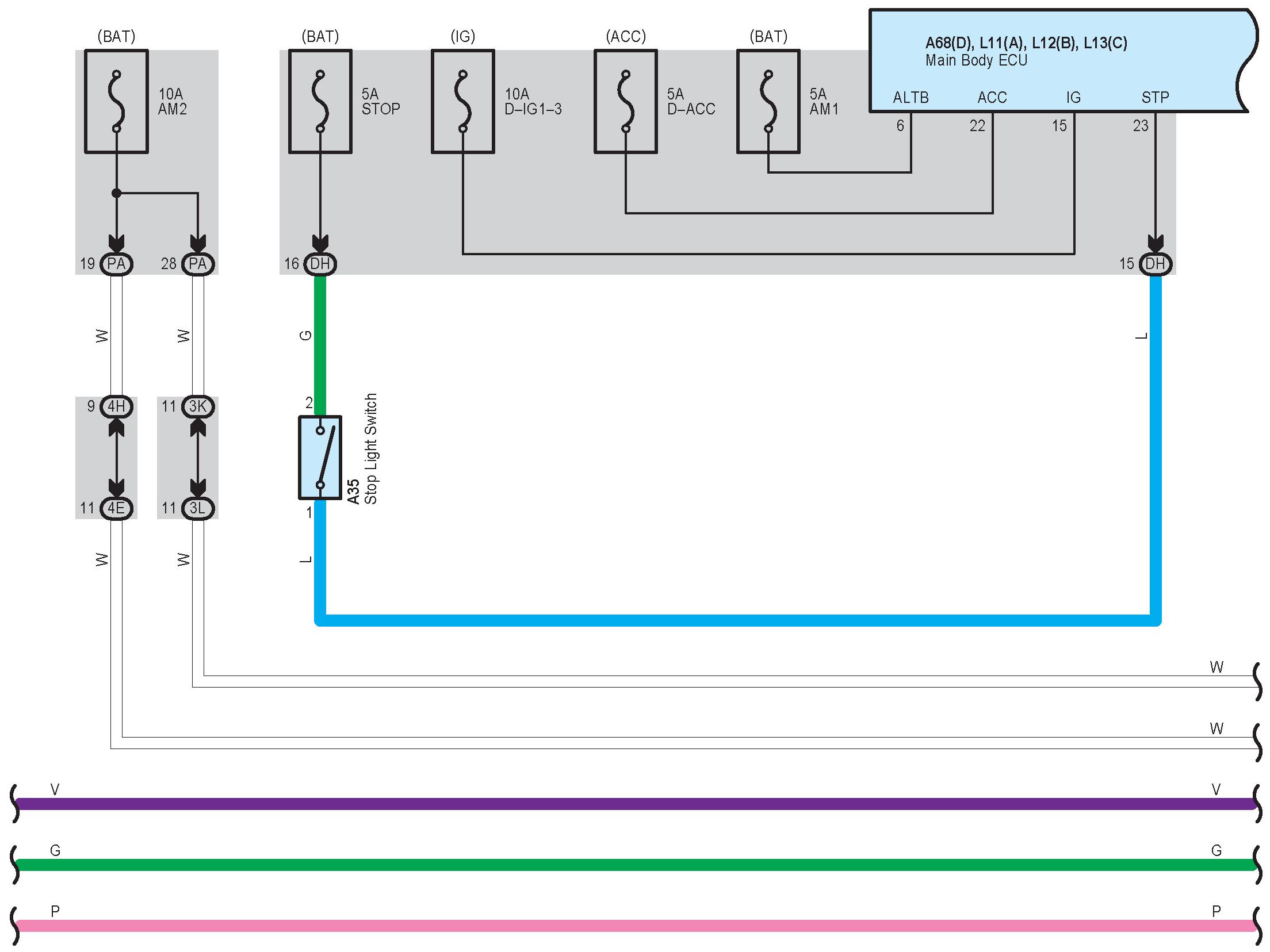

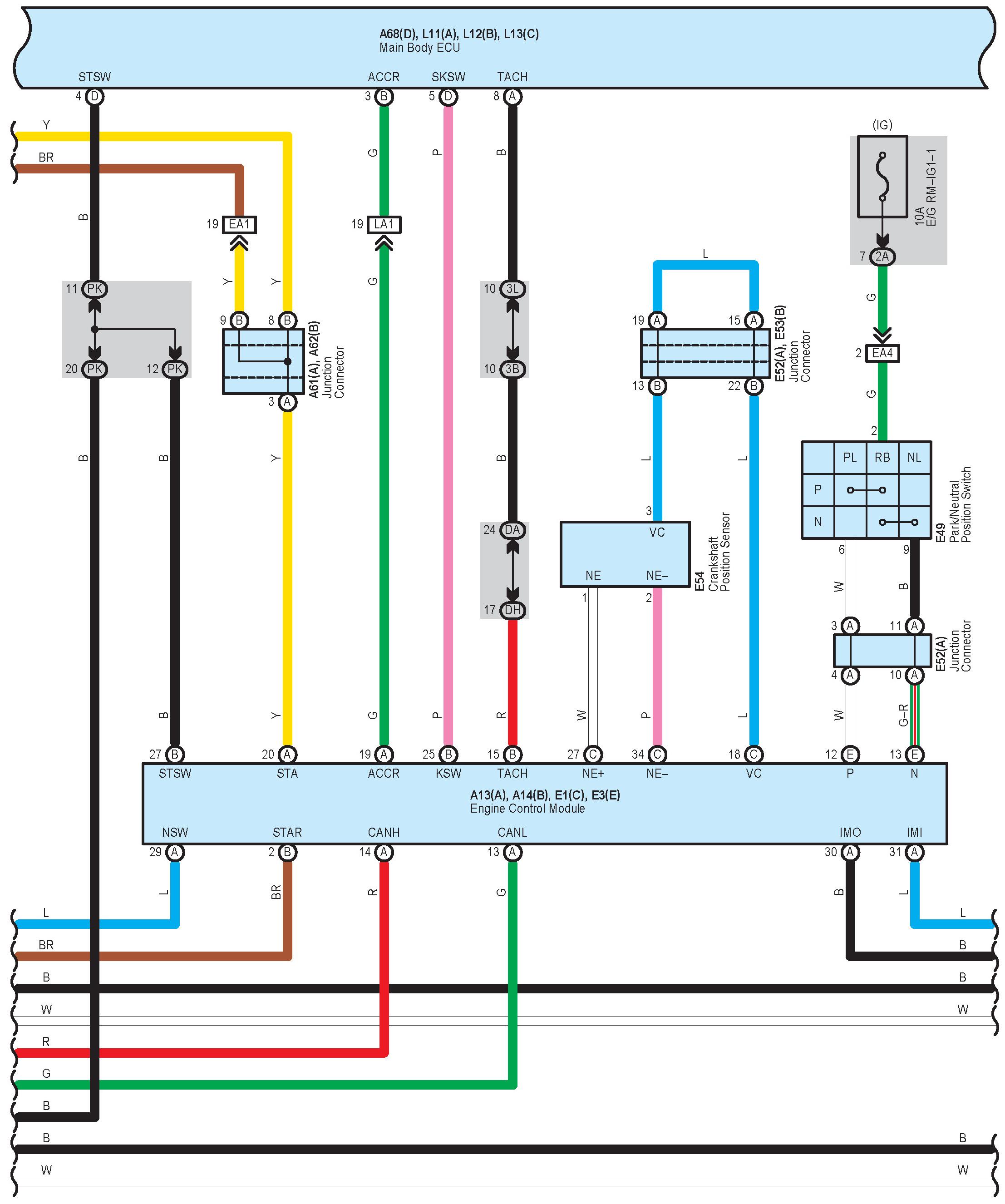

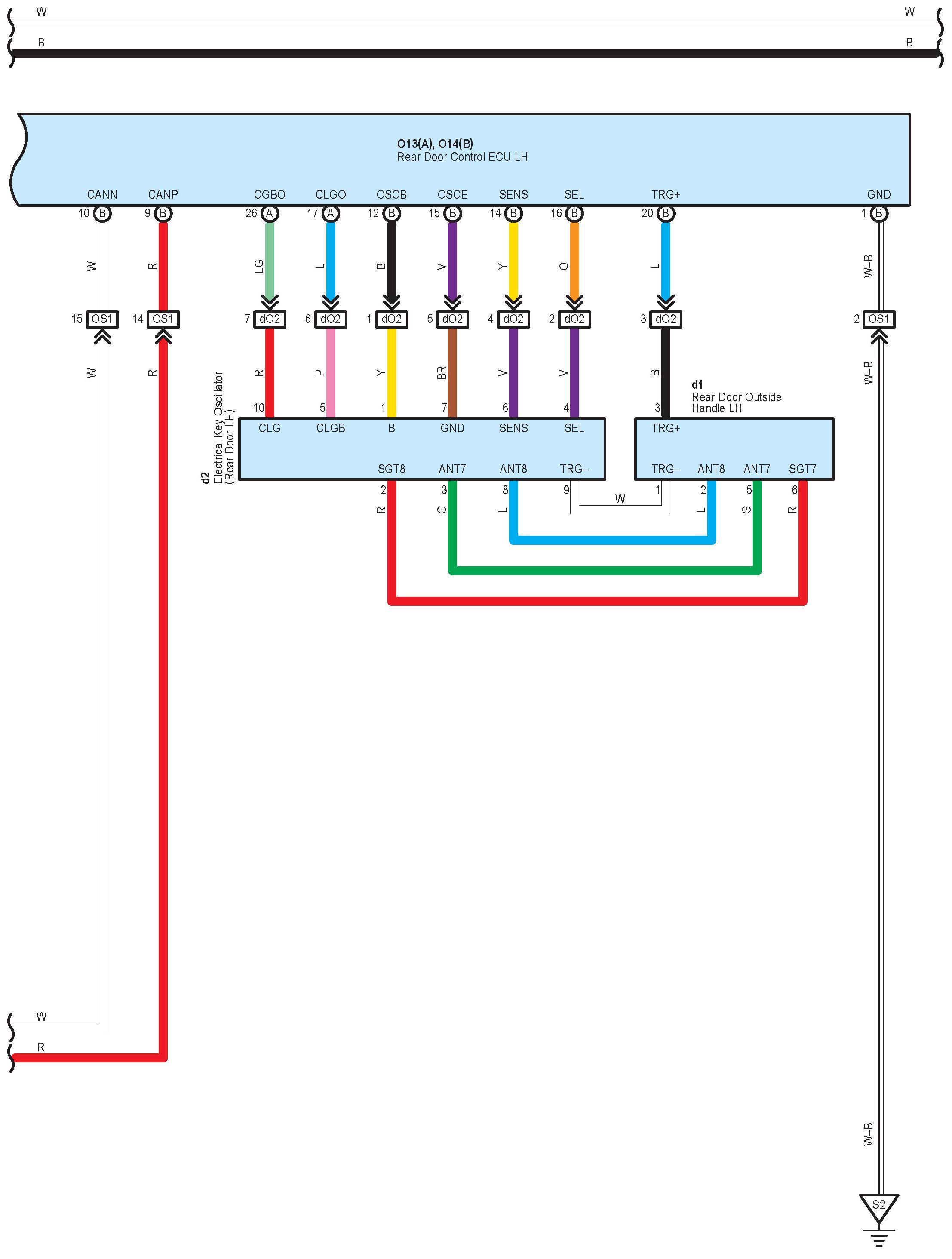

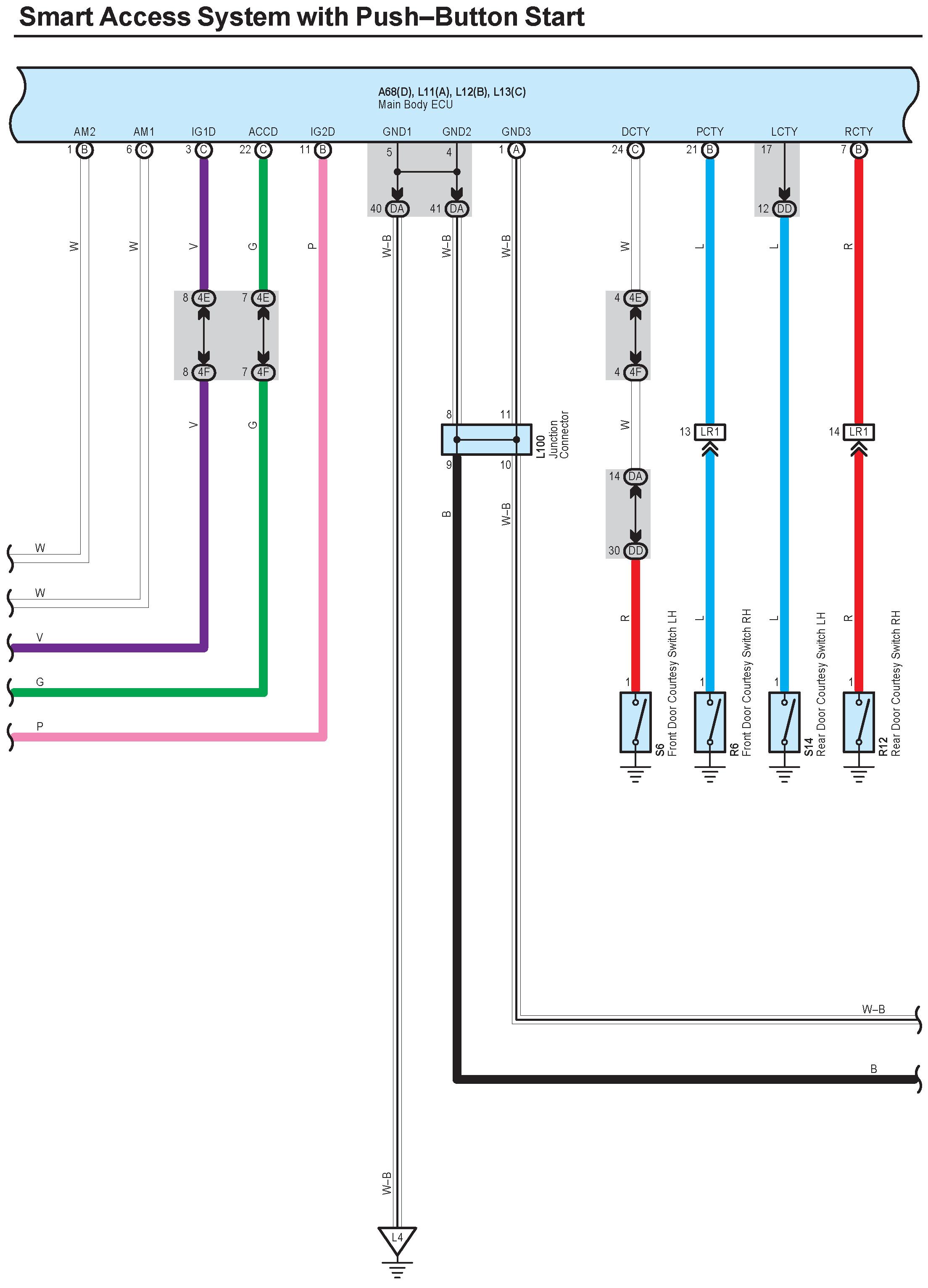

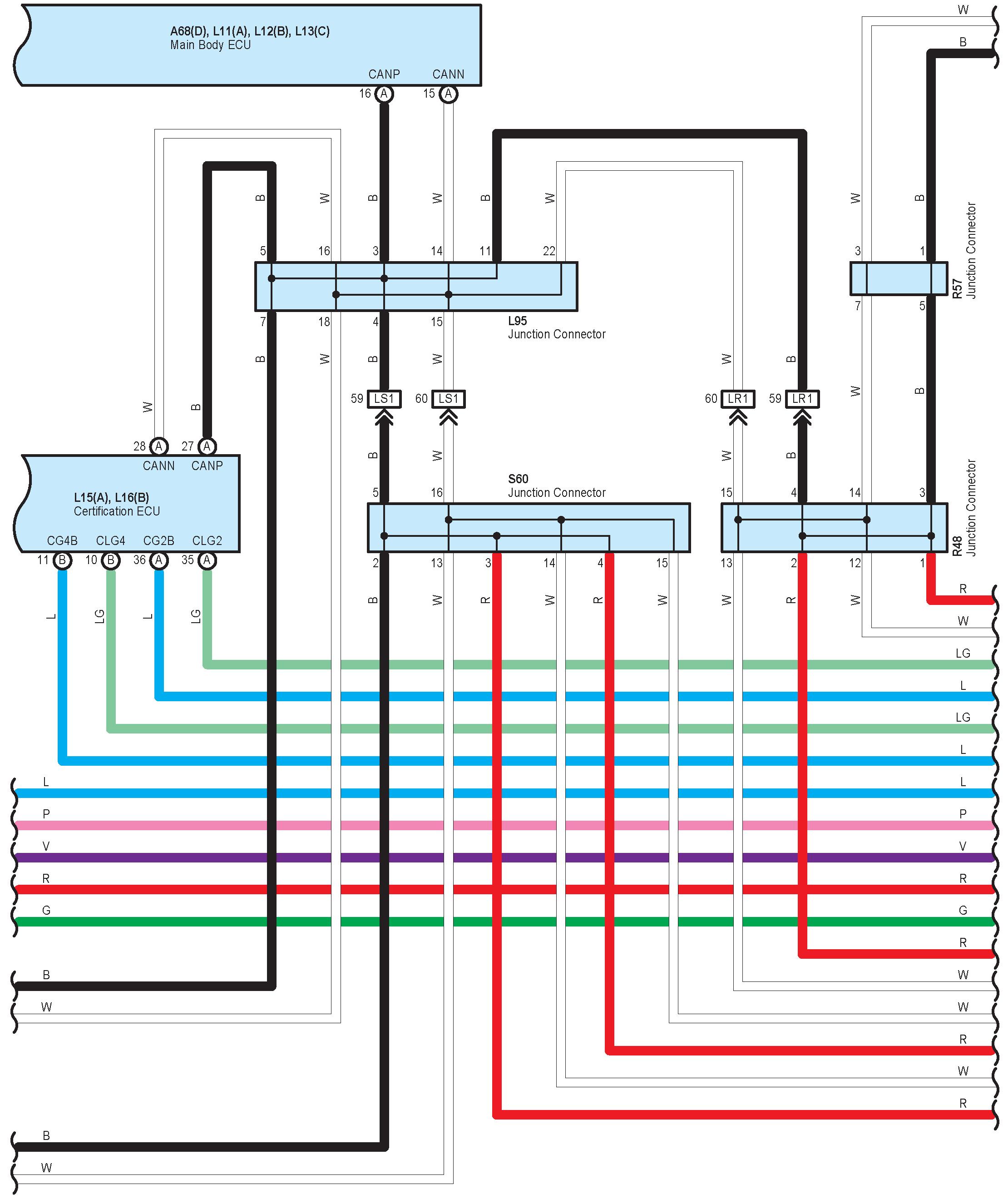

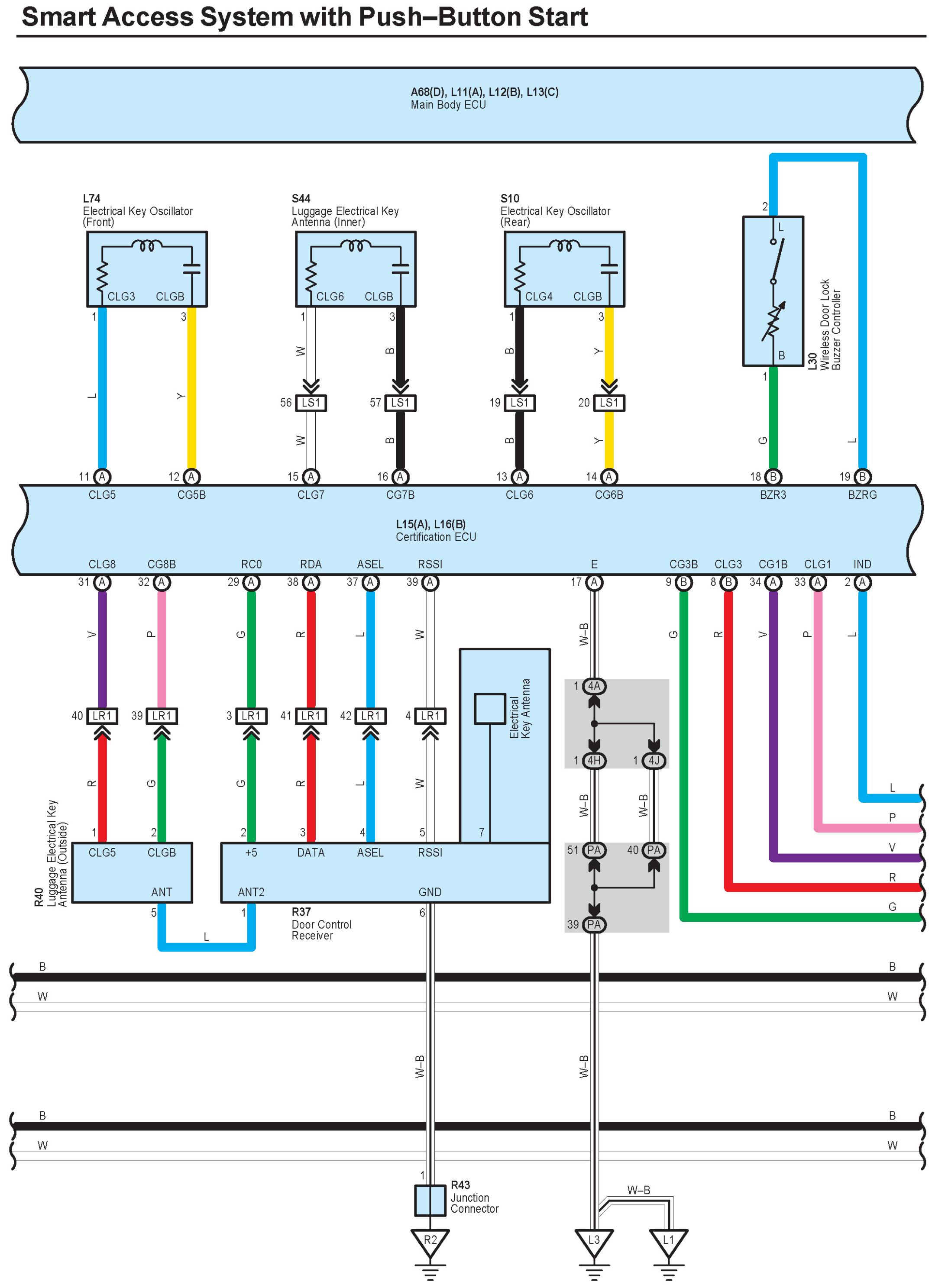

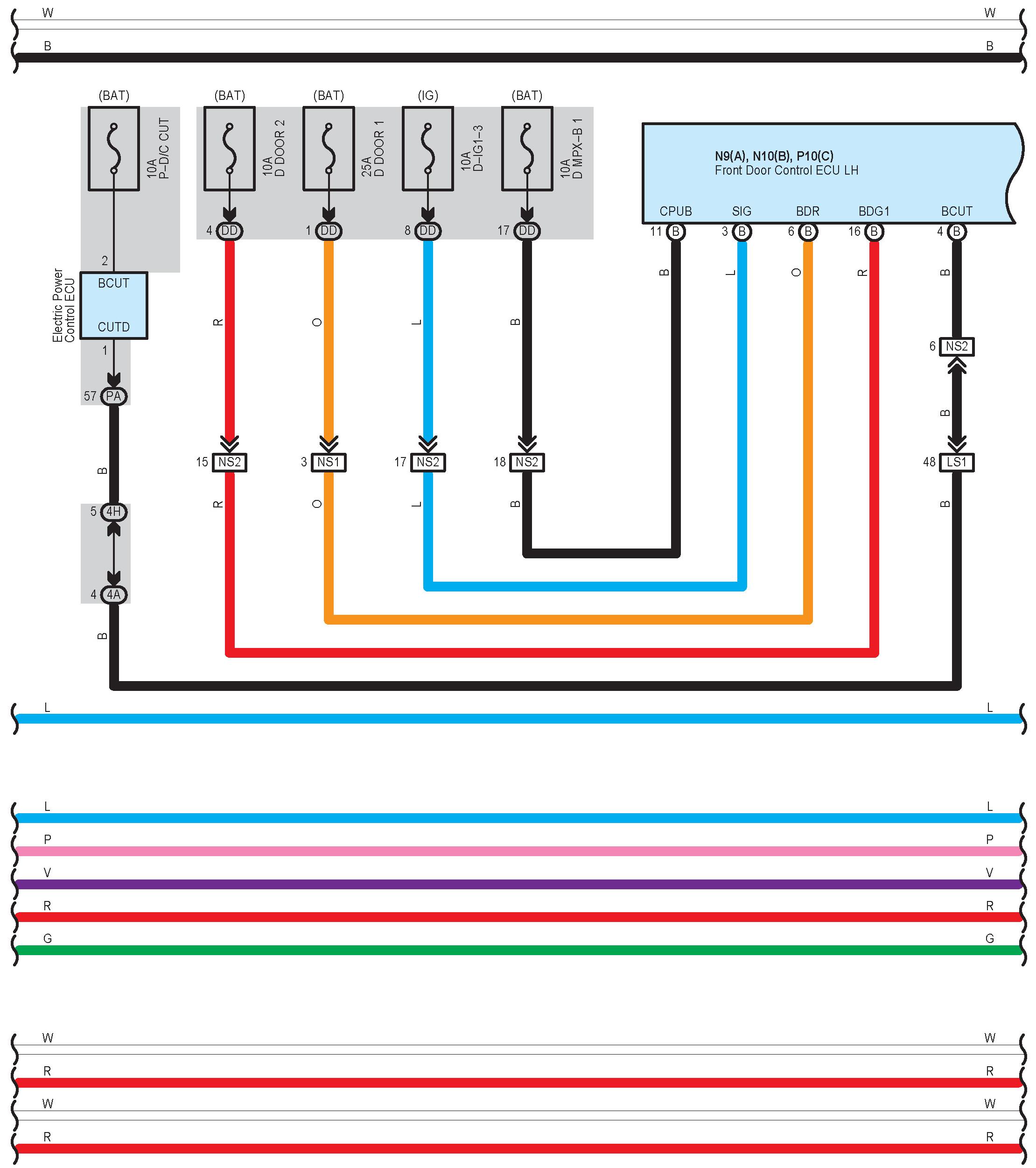

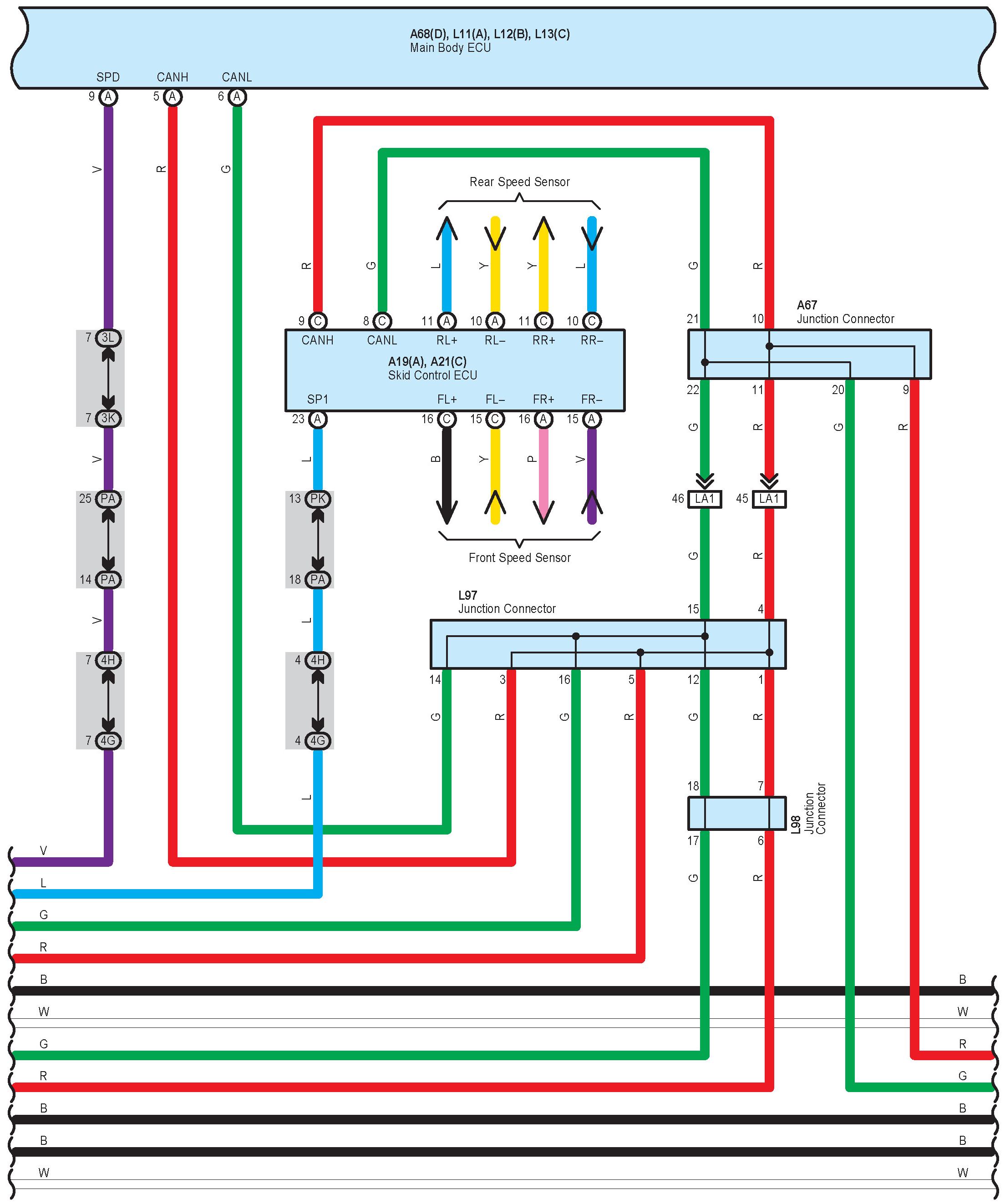

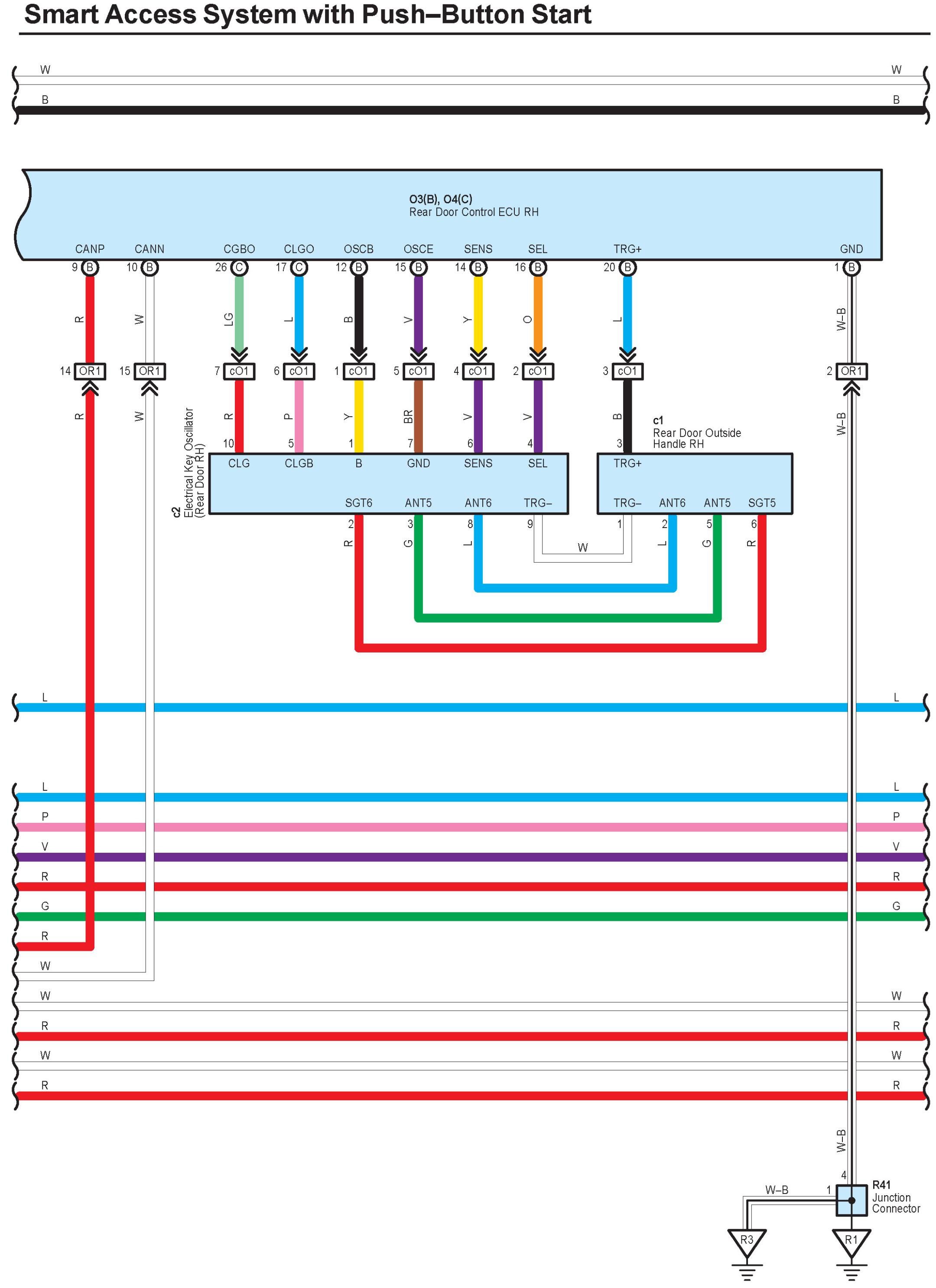

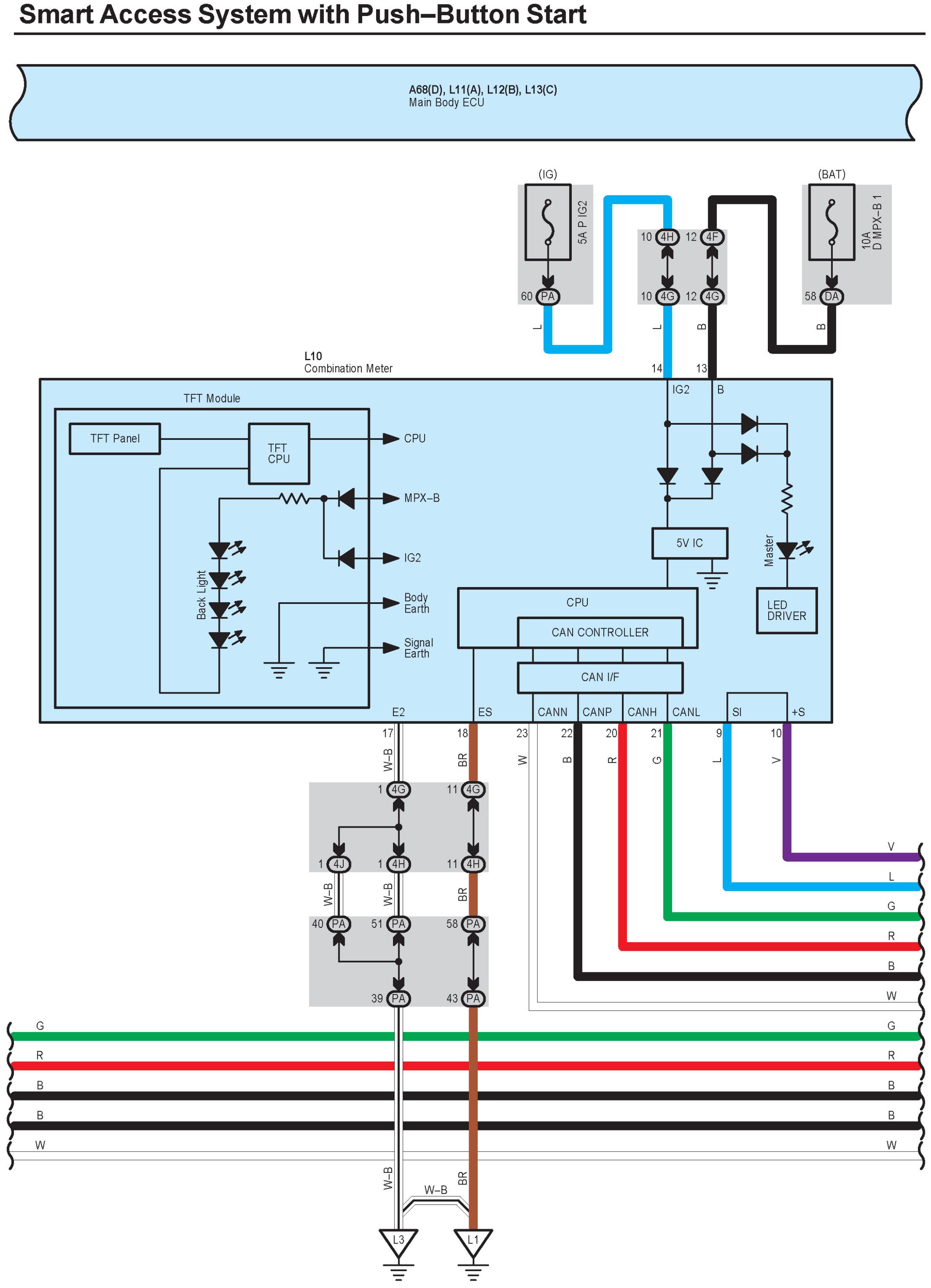

Smart Access System With Push-Button Start Part 1:

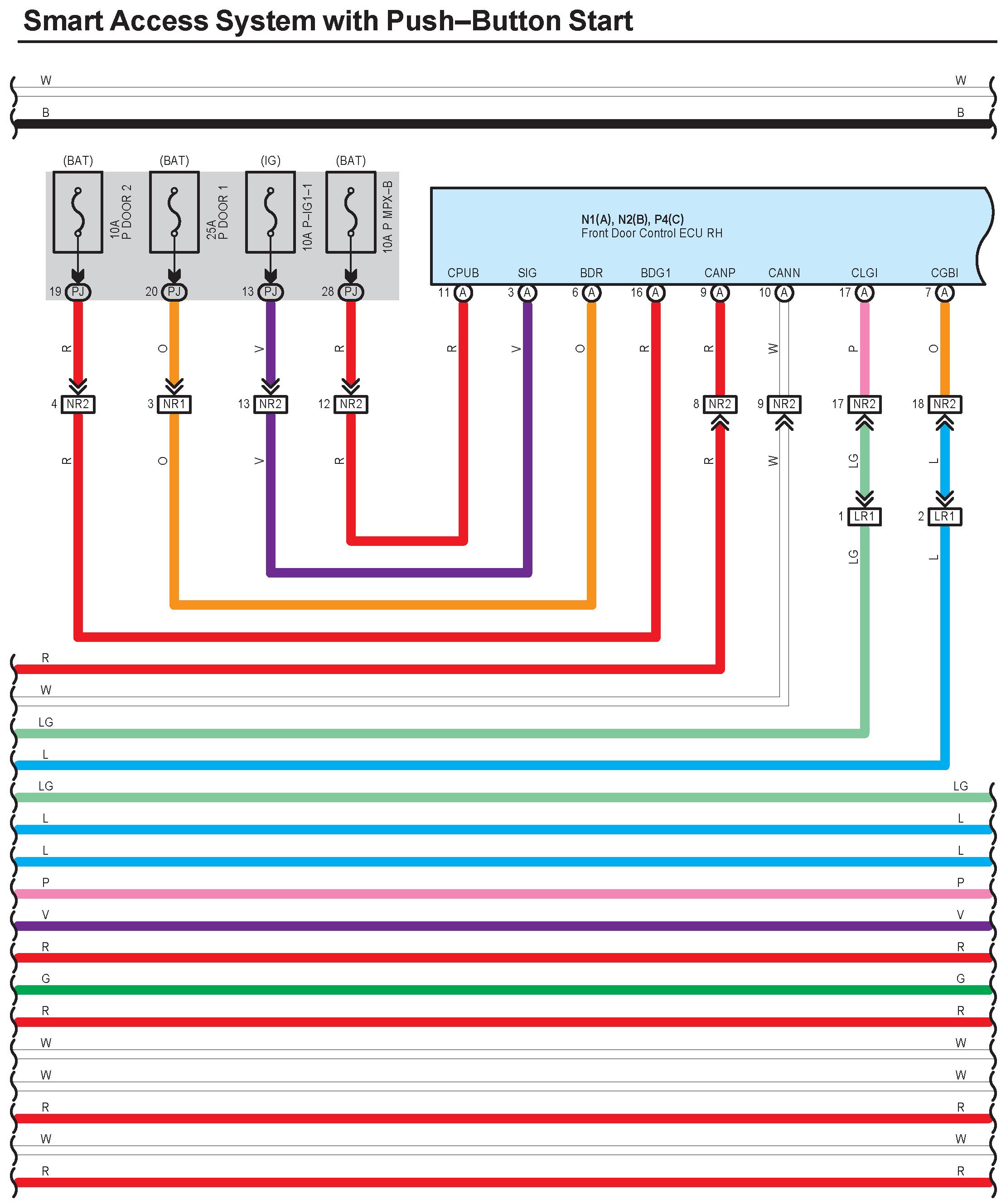

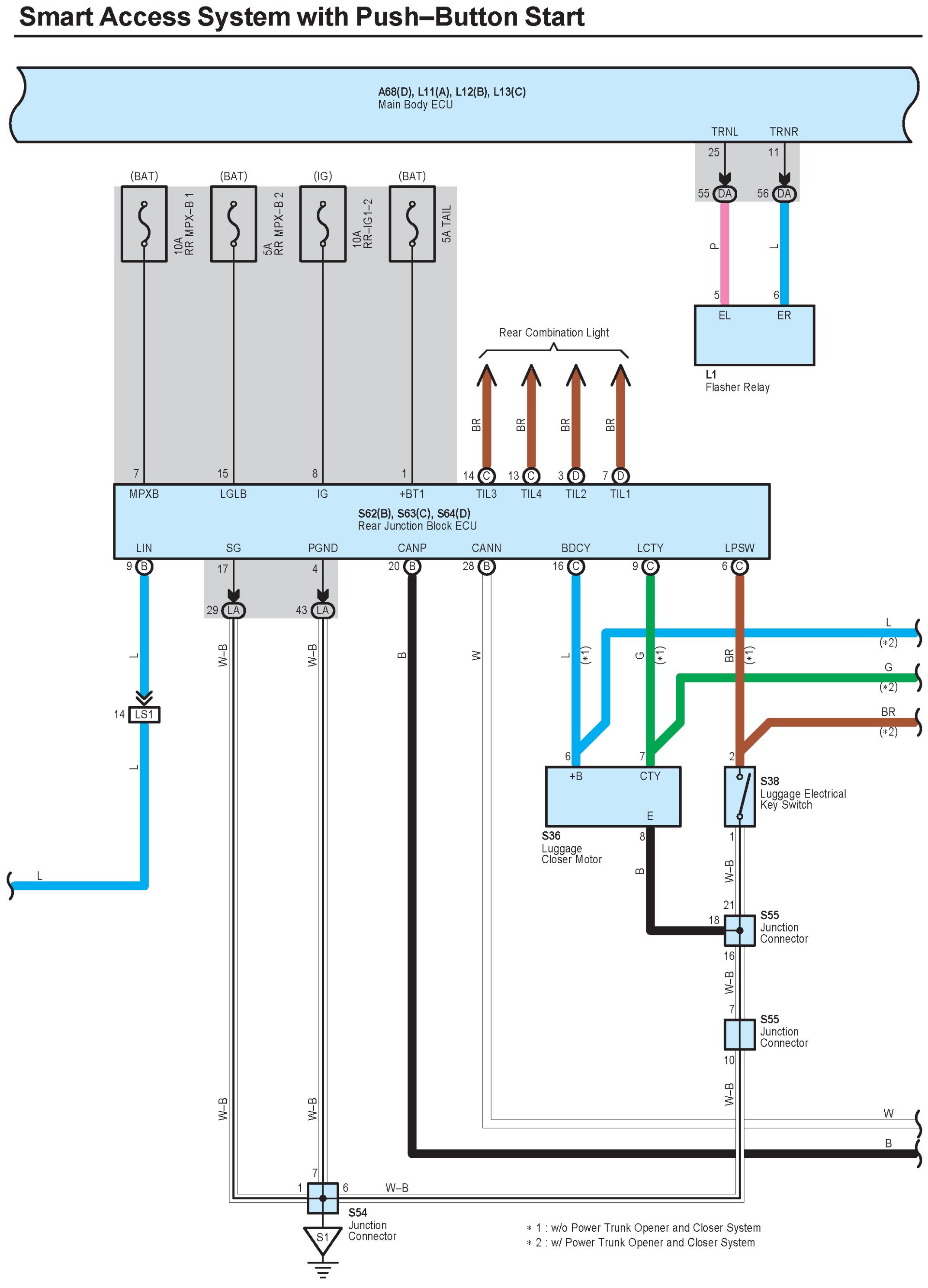

Smart Access System With Push-Button Start Part 2:

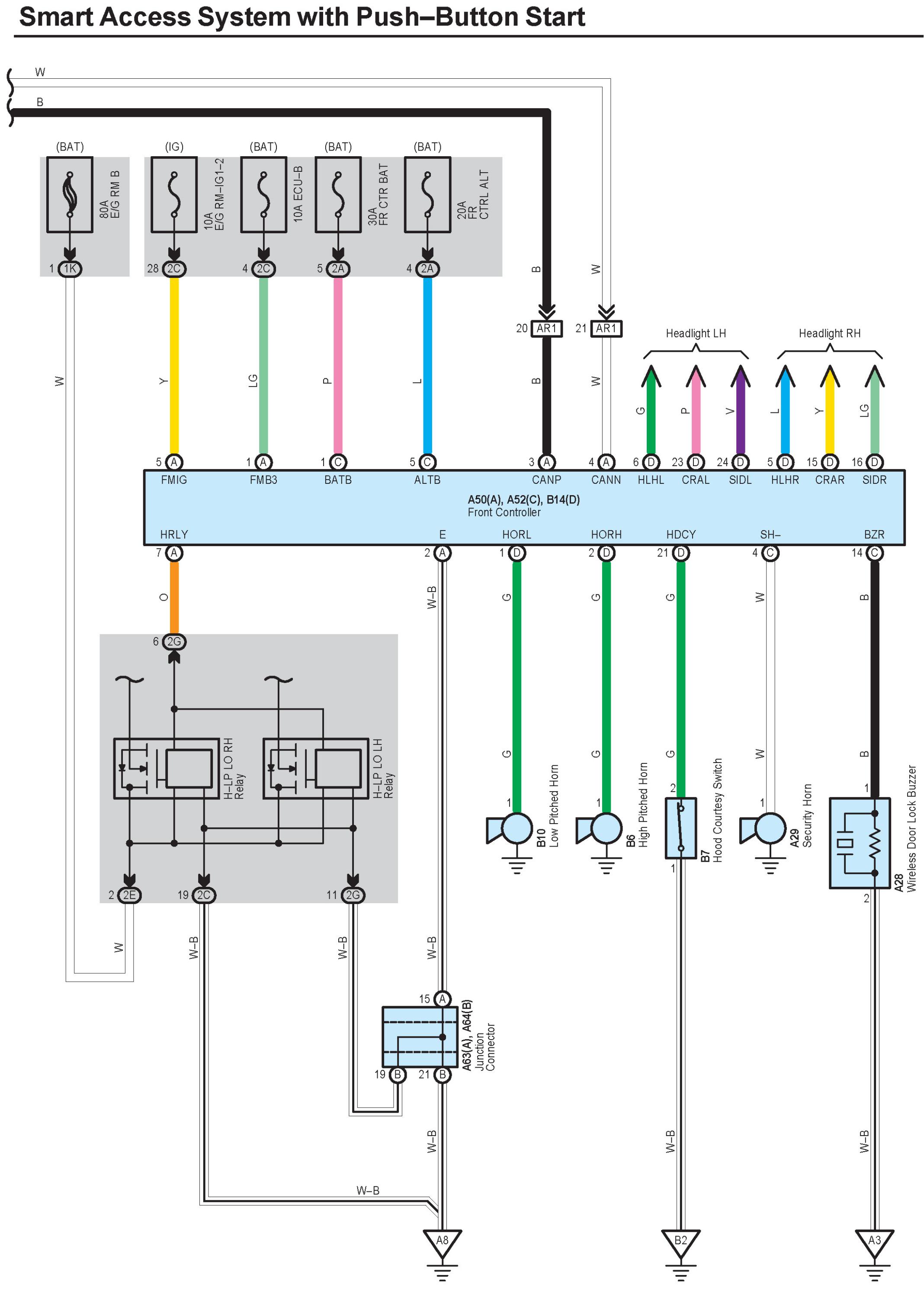

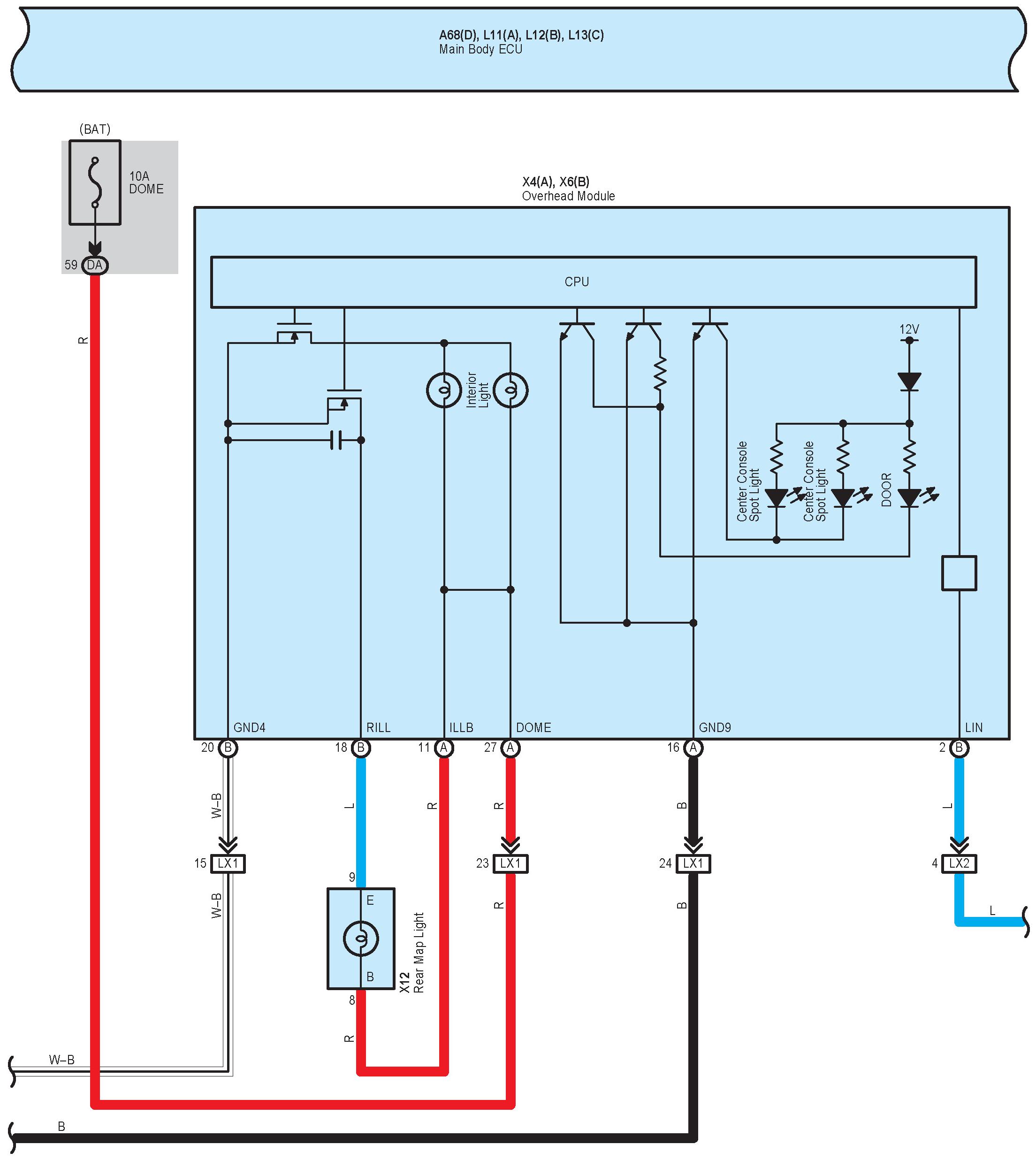

Smart Access System With Push-Button Start Part 3:

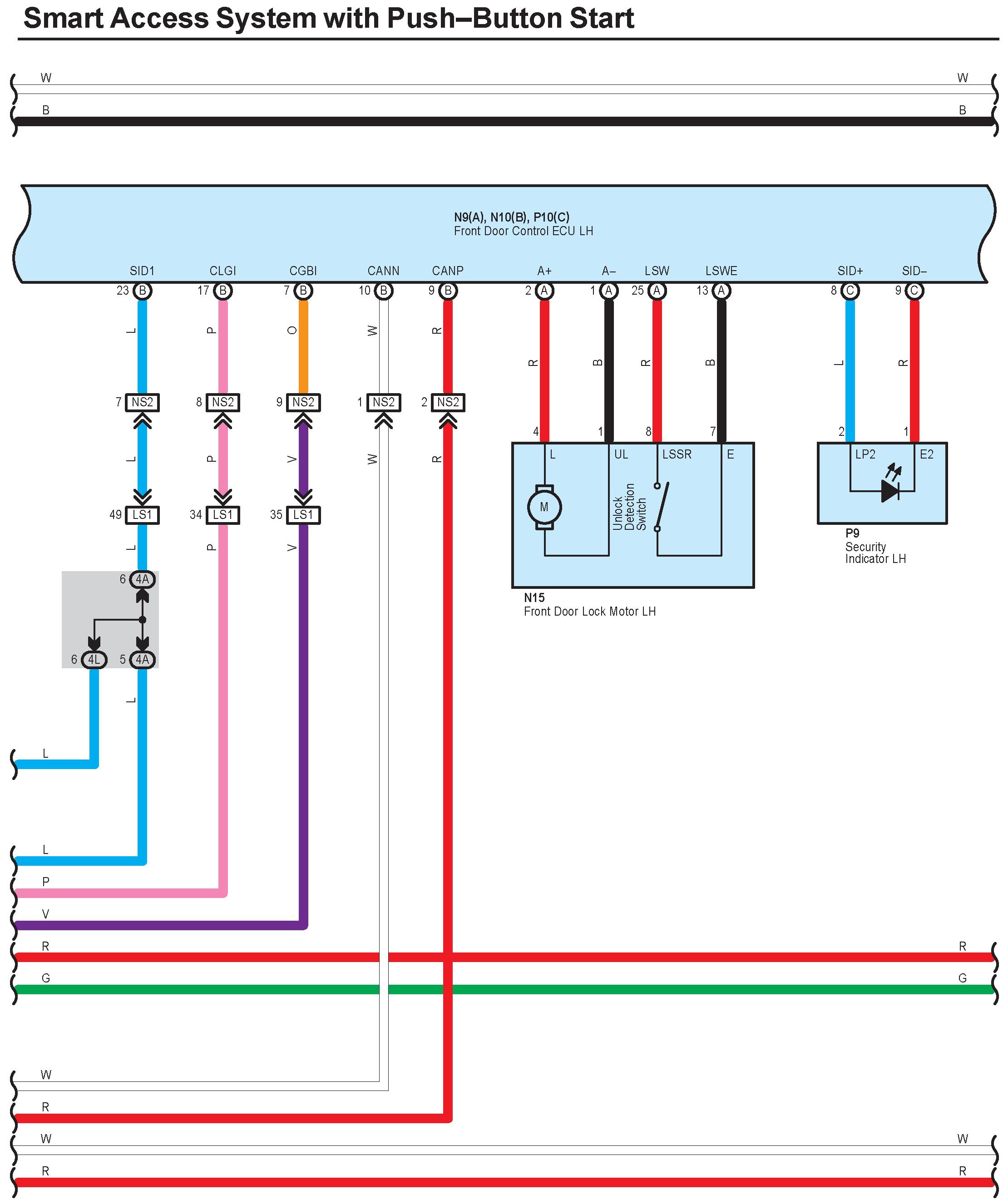

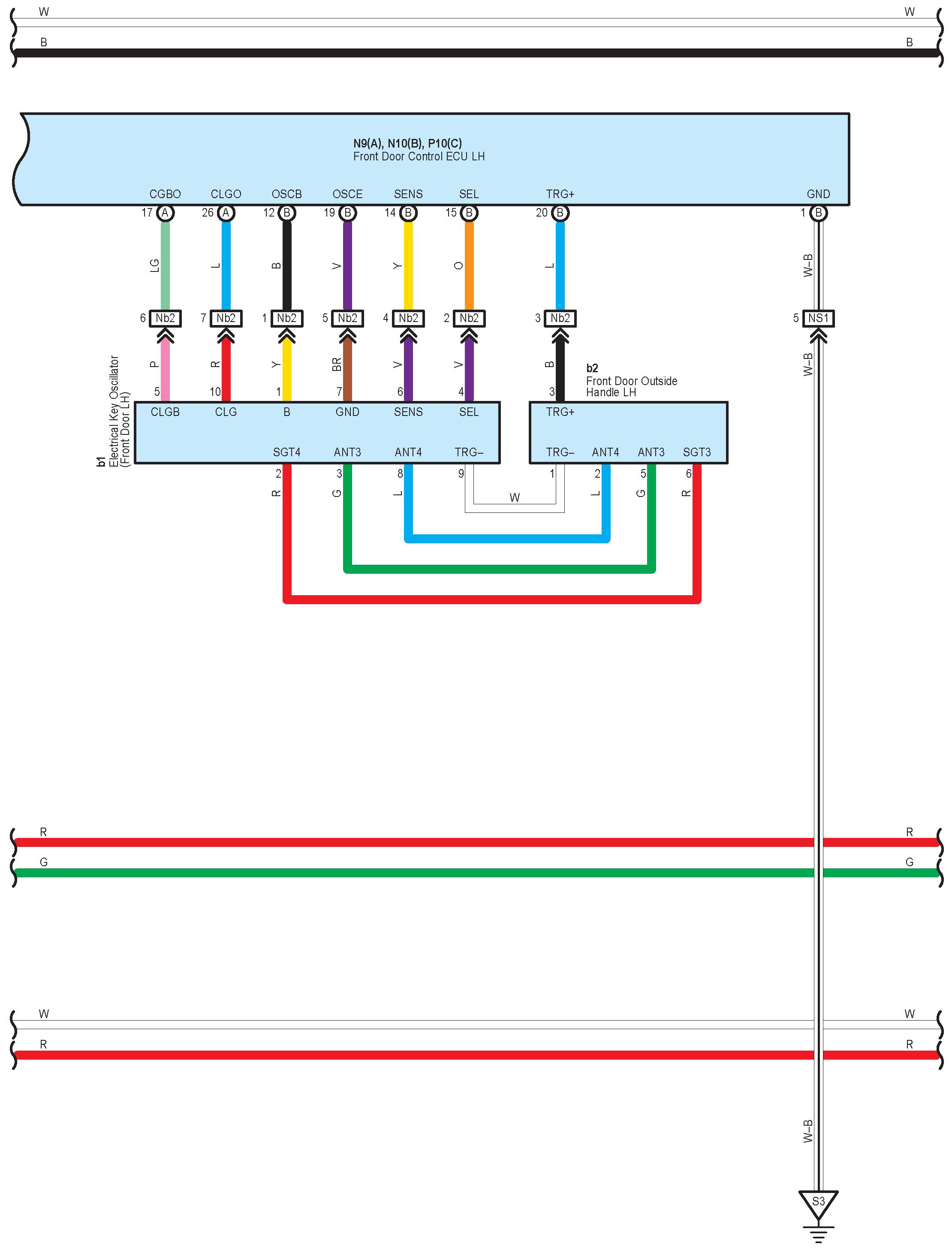

Smart Access System With Push-Button Start Part 4:

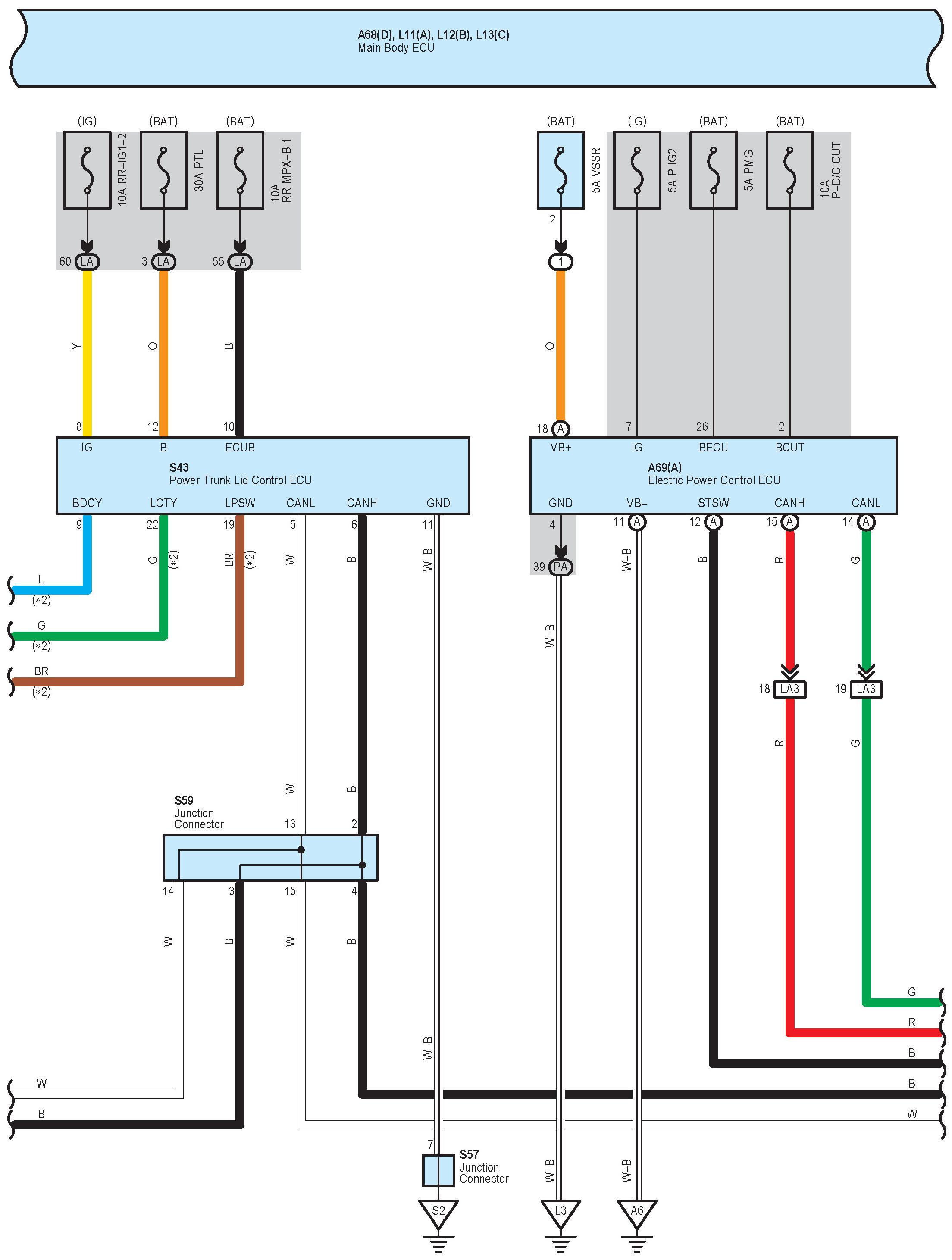

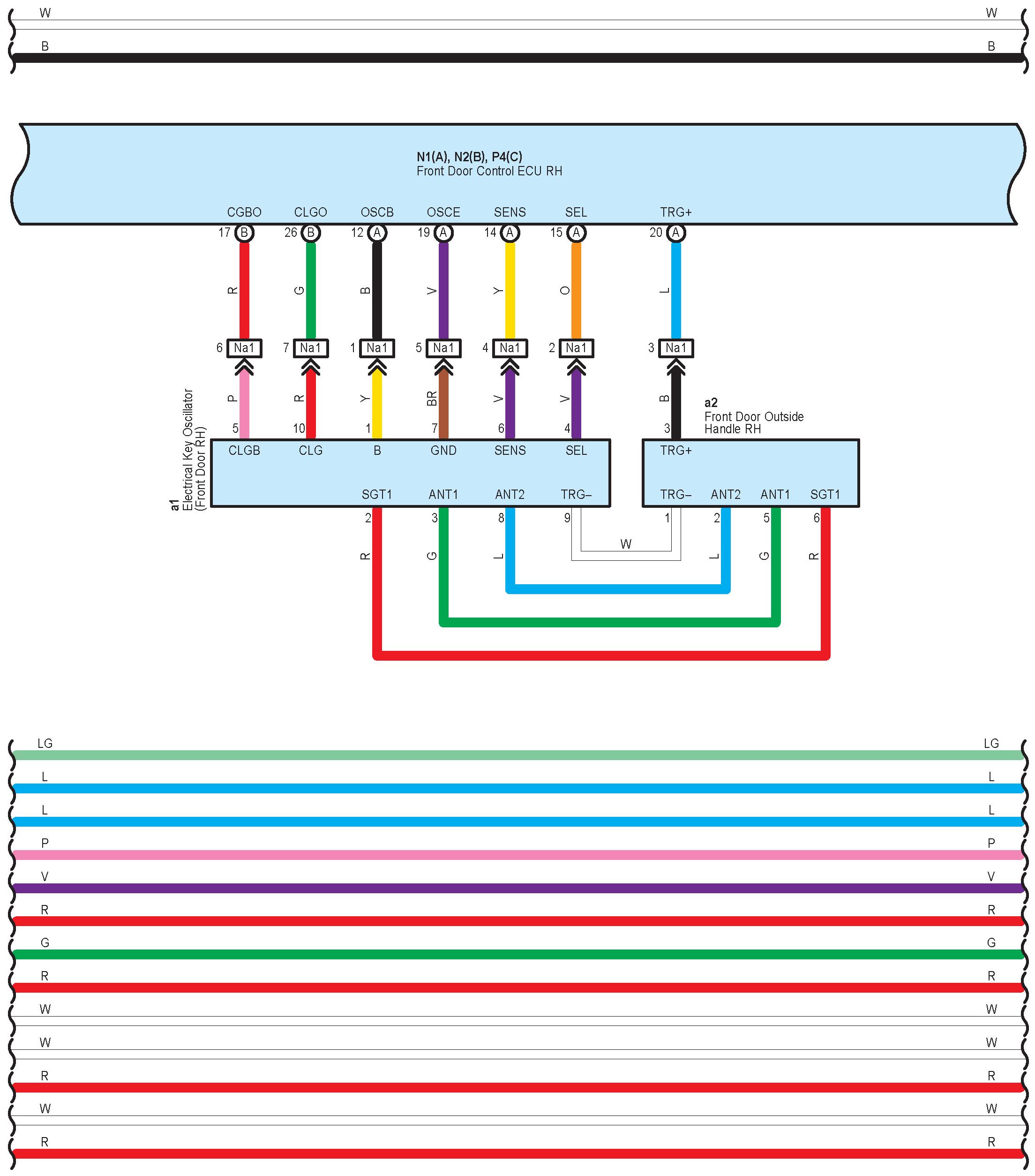

Smart Access System With Push-Button Start Part 5:

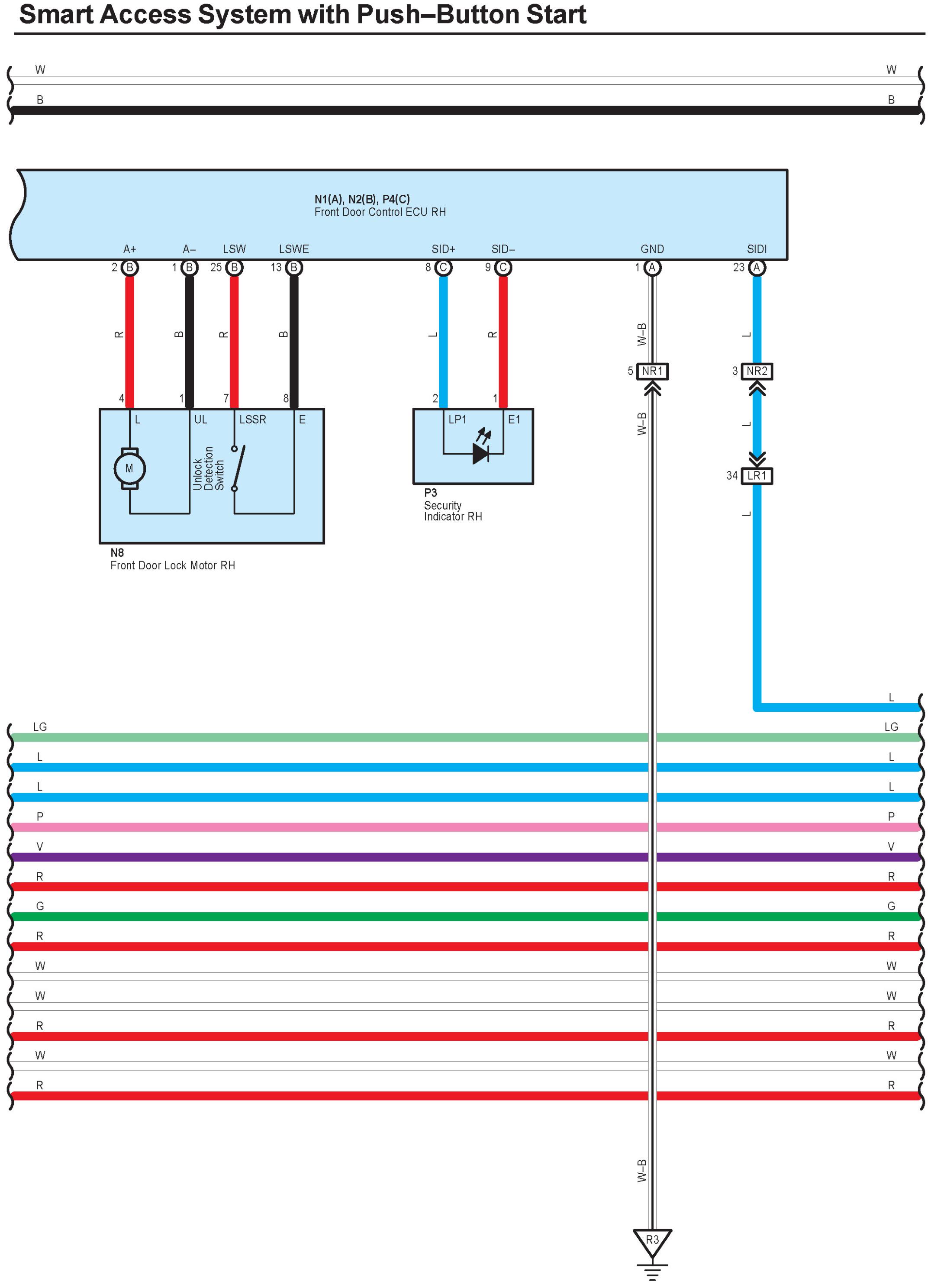

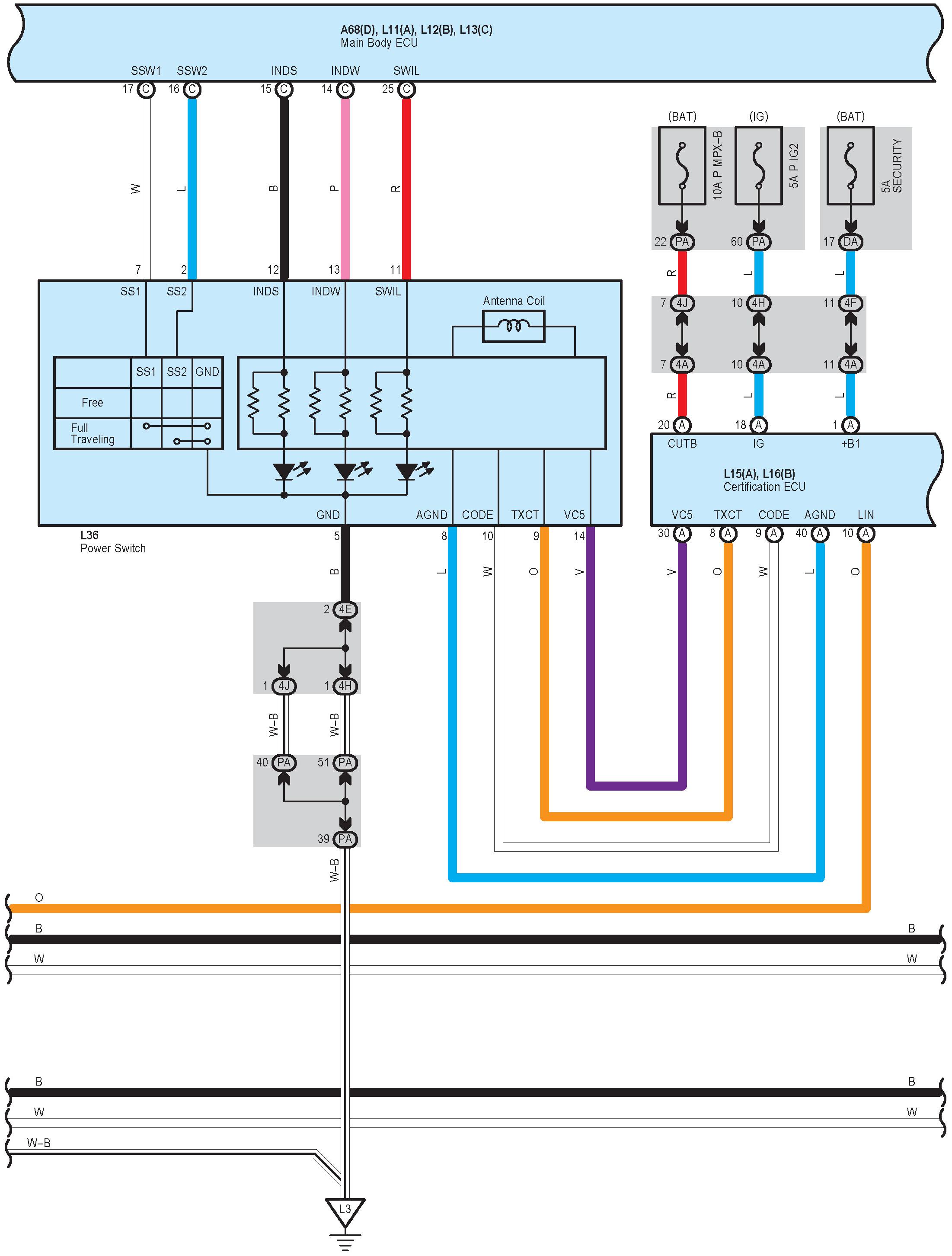

Smart Access System With Push-Button Start Part 6:

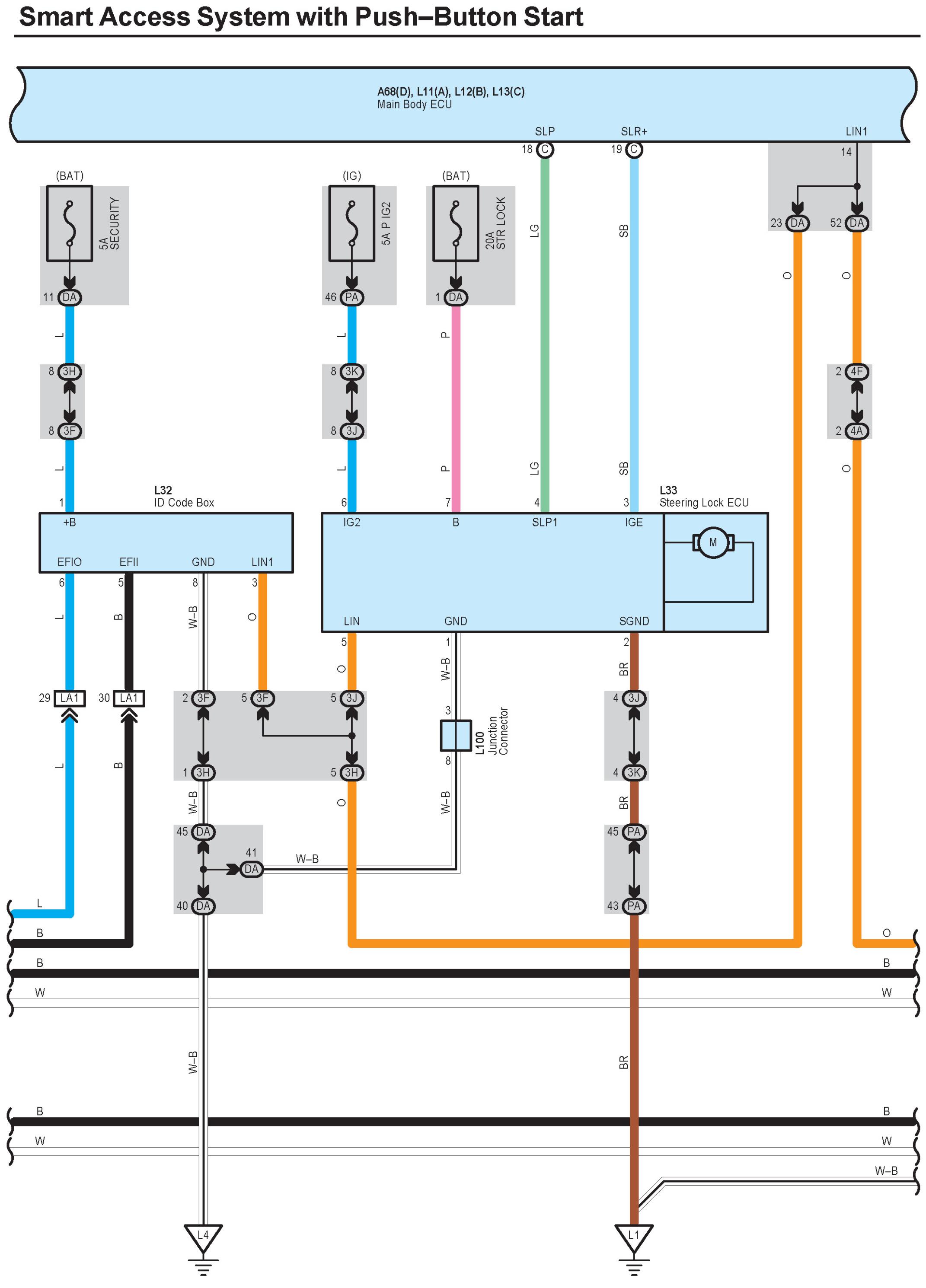

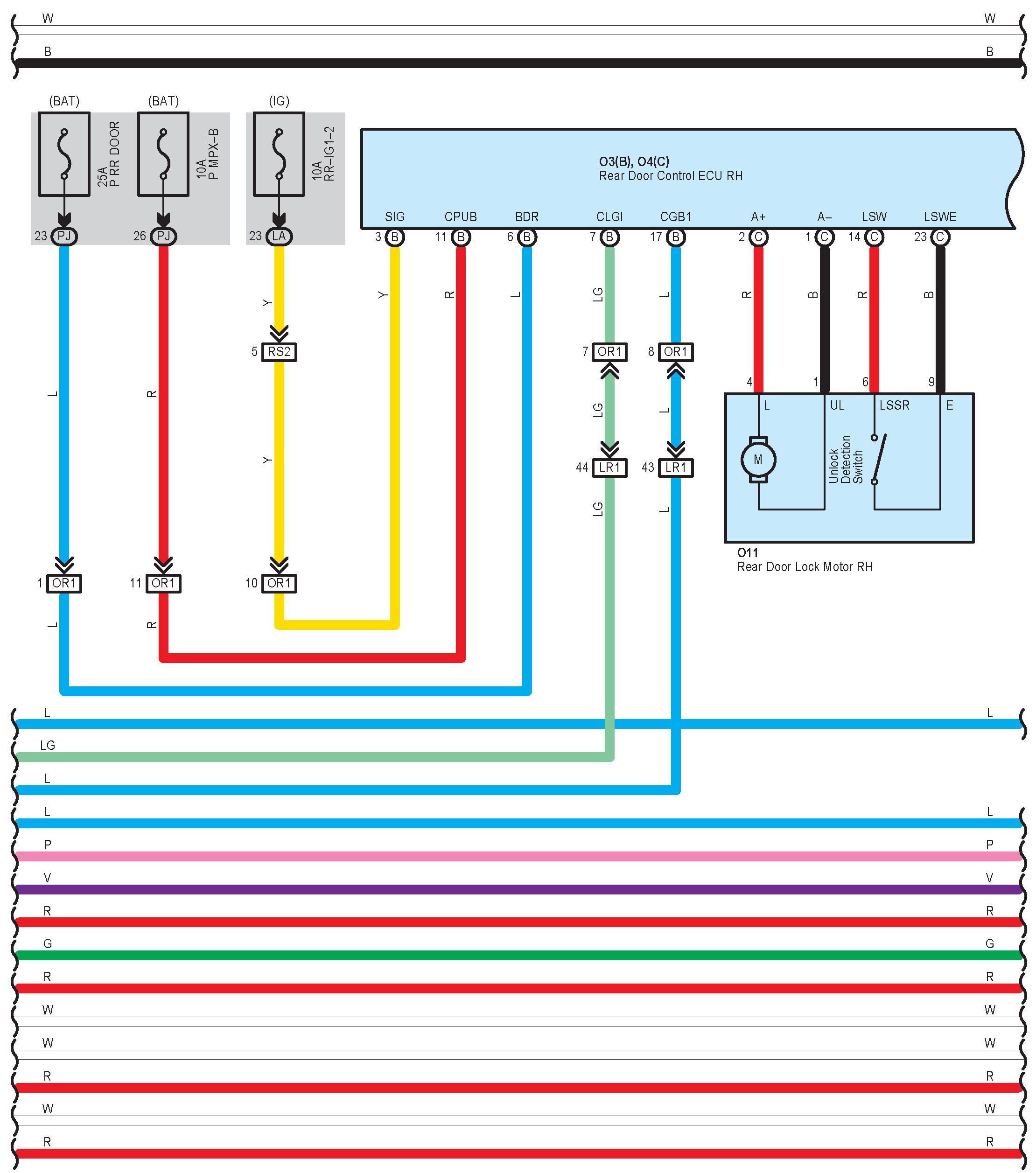

Smart Access System With Push-Button Start Part 7:

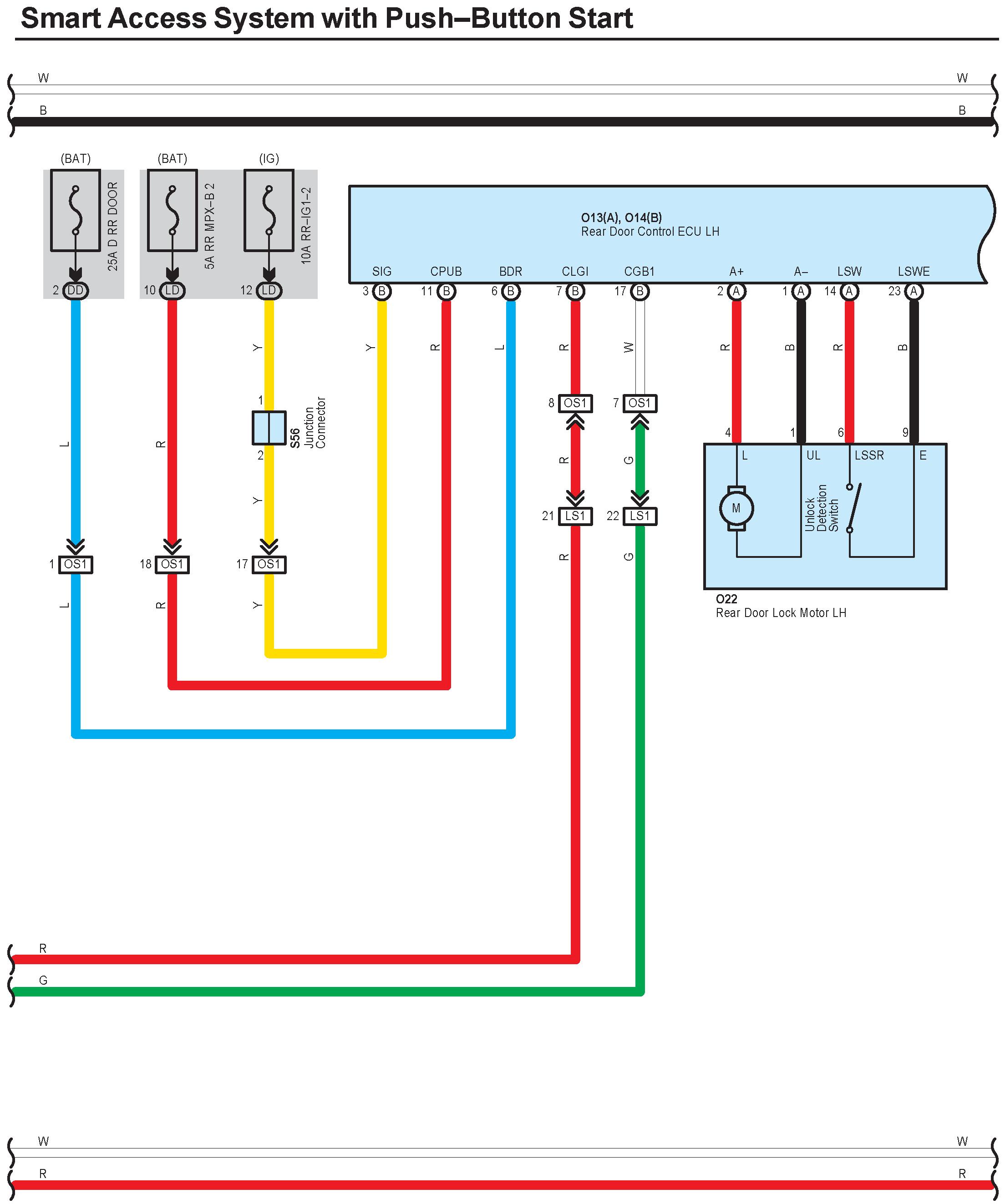

Smart Access System With Push-Button Start Part 8:

Smart Access System With Push-Button Start Part 9:

Smart Access System With Push-Button Start Part 10:

Smart Access System With Push-Button Start Part 11:

Smart Access System With Push-Button Start Part 12:

Smart Access System With Push-Button Start Part 13:

Smart Access System With Push-Button Start Part 14:

Smart Access System With Push-Button Start Part 15:

Smart Access System With Push-Button Start Part 16:

Smart Access System With Push-Button Start Part 17:

Smart Access System With Push-Button Start Part 18:

Smart Access System With Push-Button Start Part 19:

Smart Access System With Push-Button Start Part 20:

Smart Access System With Push-Button Start Part 21:

Smart Access System With Push-Button Start Part 22:

Smart Access System With Push-Button Start Part 23:

Smart Access System With Push-Button Start Part 24:

Smart Access System With Push-Button Start Part 25:

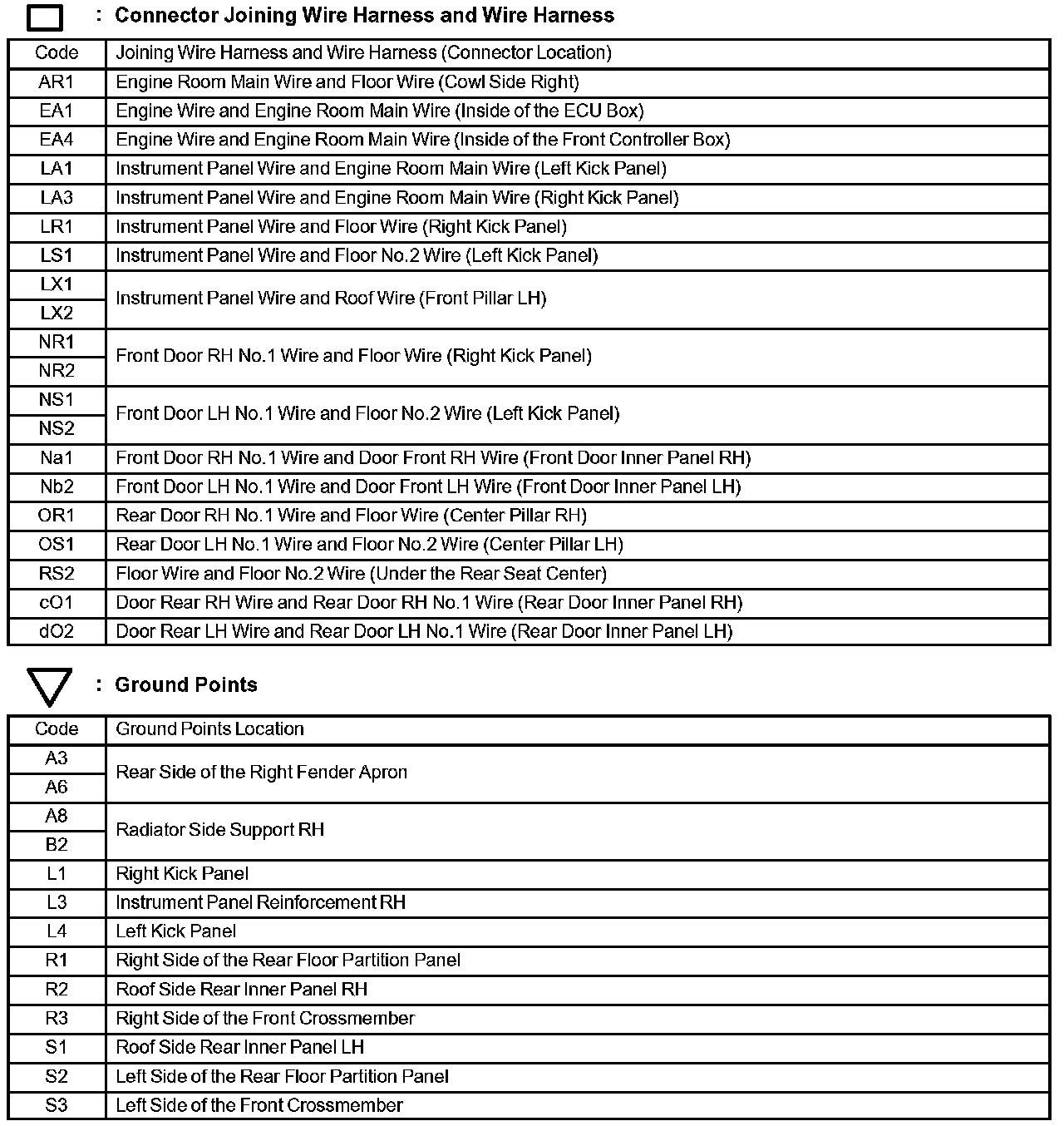

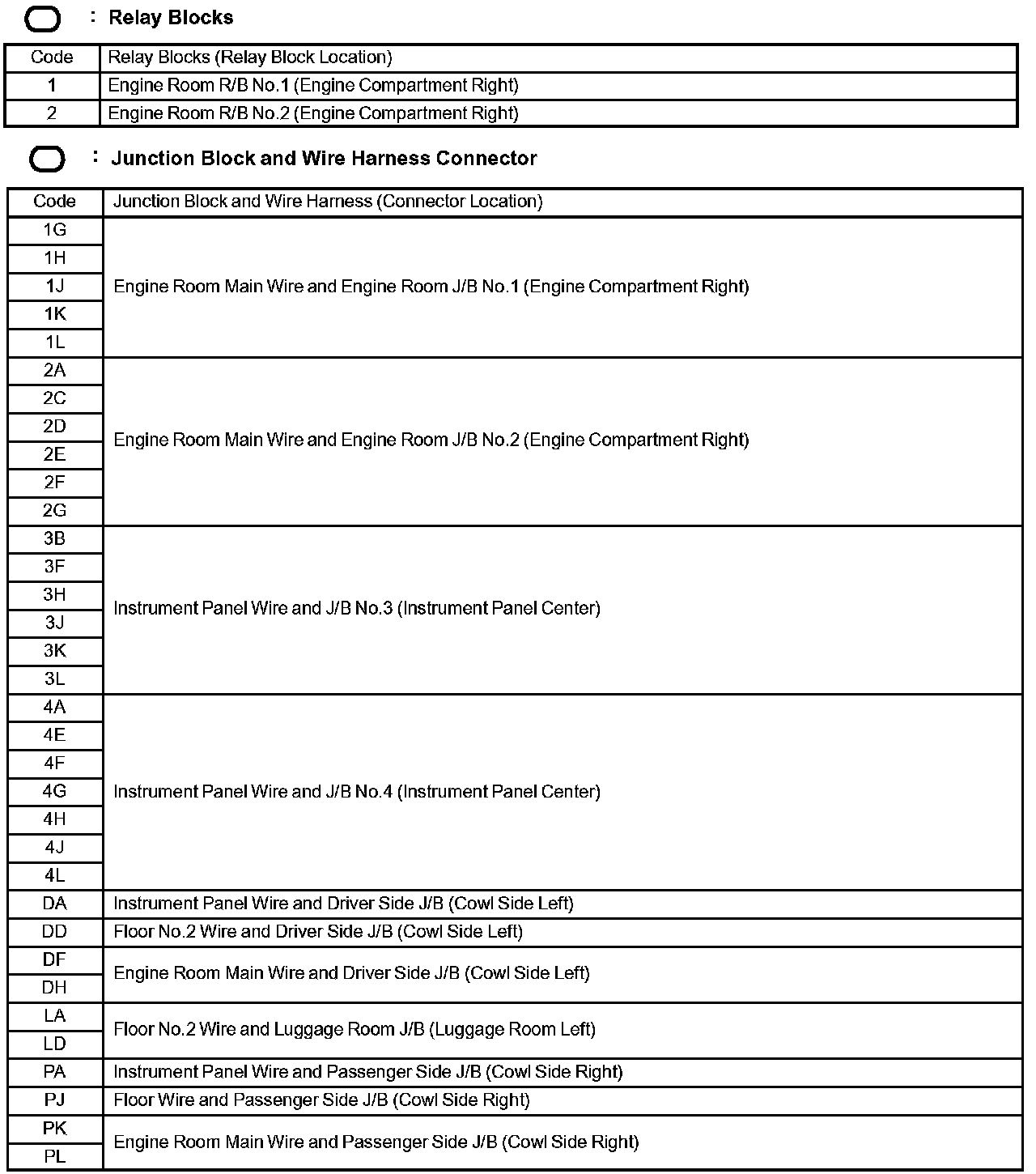

Diagram Legend Part 1:

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
