Millimeter Wave Radar Sensor Power Source Circuit

Millimeter Wave Radar Sensor Power Source Circuit

DESCRIPTION
This circuit provides power to the front millimeter wave radar sensor. The front millimeter wave radar sensor emits radio waves towards an object in front and measures the distance and direction of the object by receiving the beam reflections. Based on the reflections, the sensor calculates the difference in speed between the vehicle and the object in front. This data is transmitted to the driving support ECU.

Wiring Diagram:

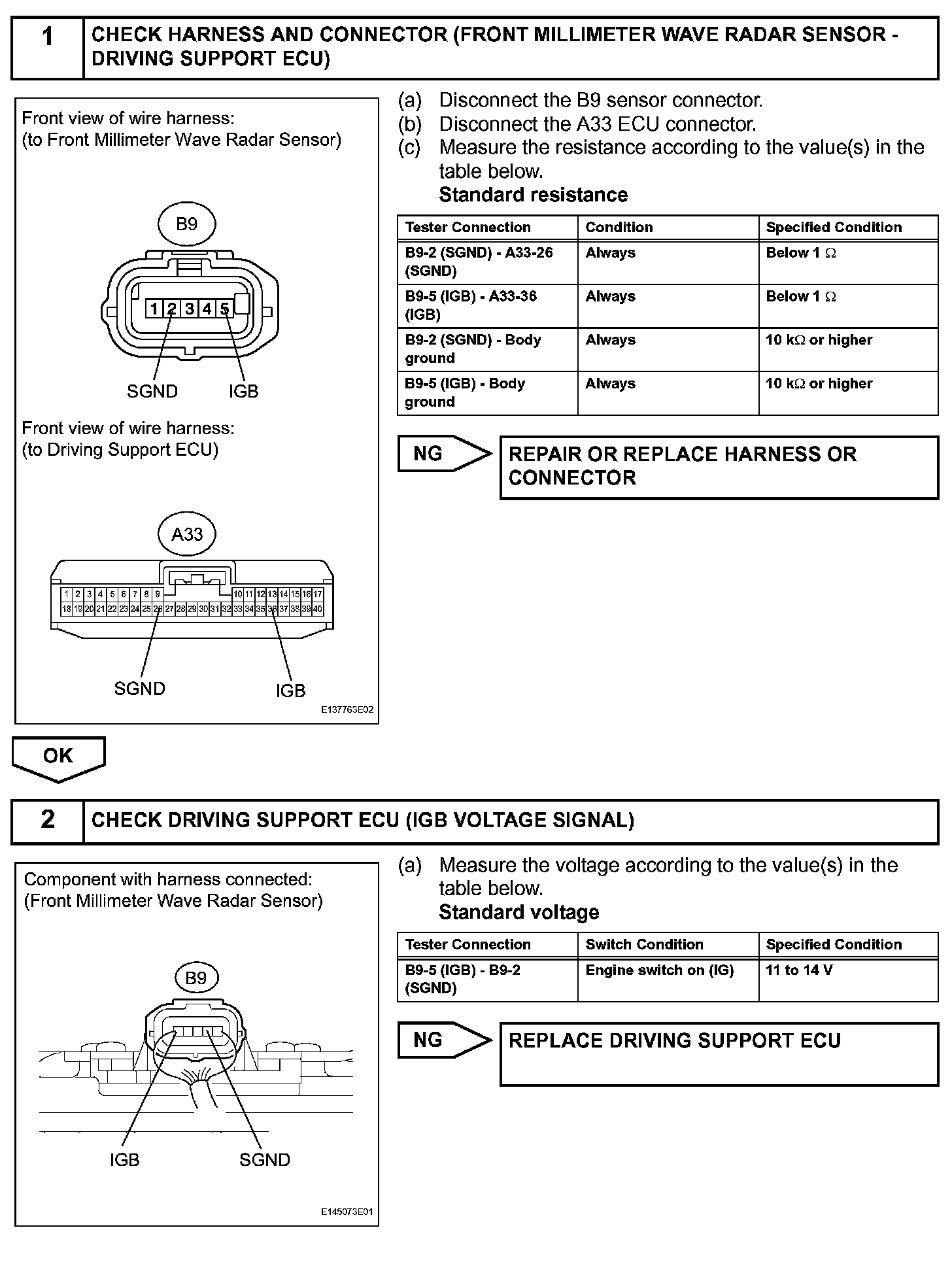

Step 1-2:

Step 2 (Continued):

INSPECTION PROCEDURE
