Symptom Index

PROBLEM SYMPTOMS TABLE

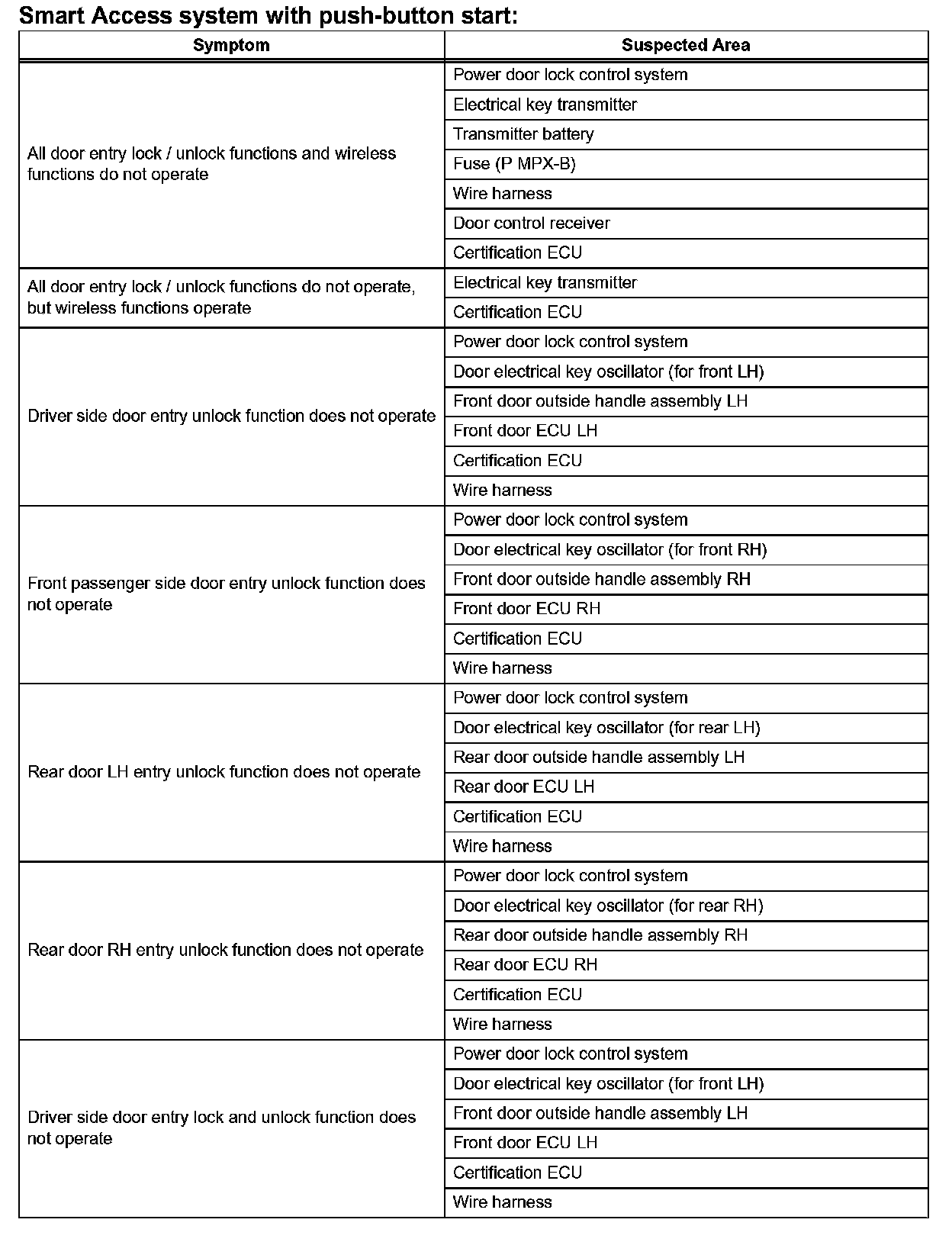

Problem Symptoms Table - Smart Access System With Push-button Start (Part 1):

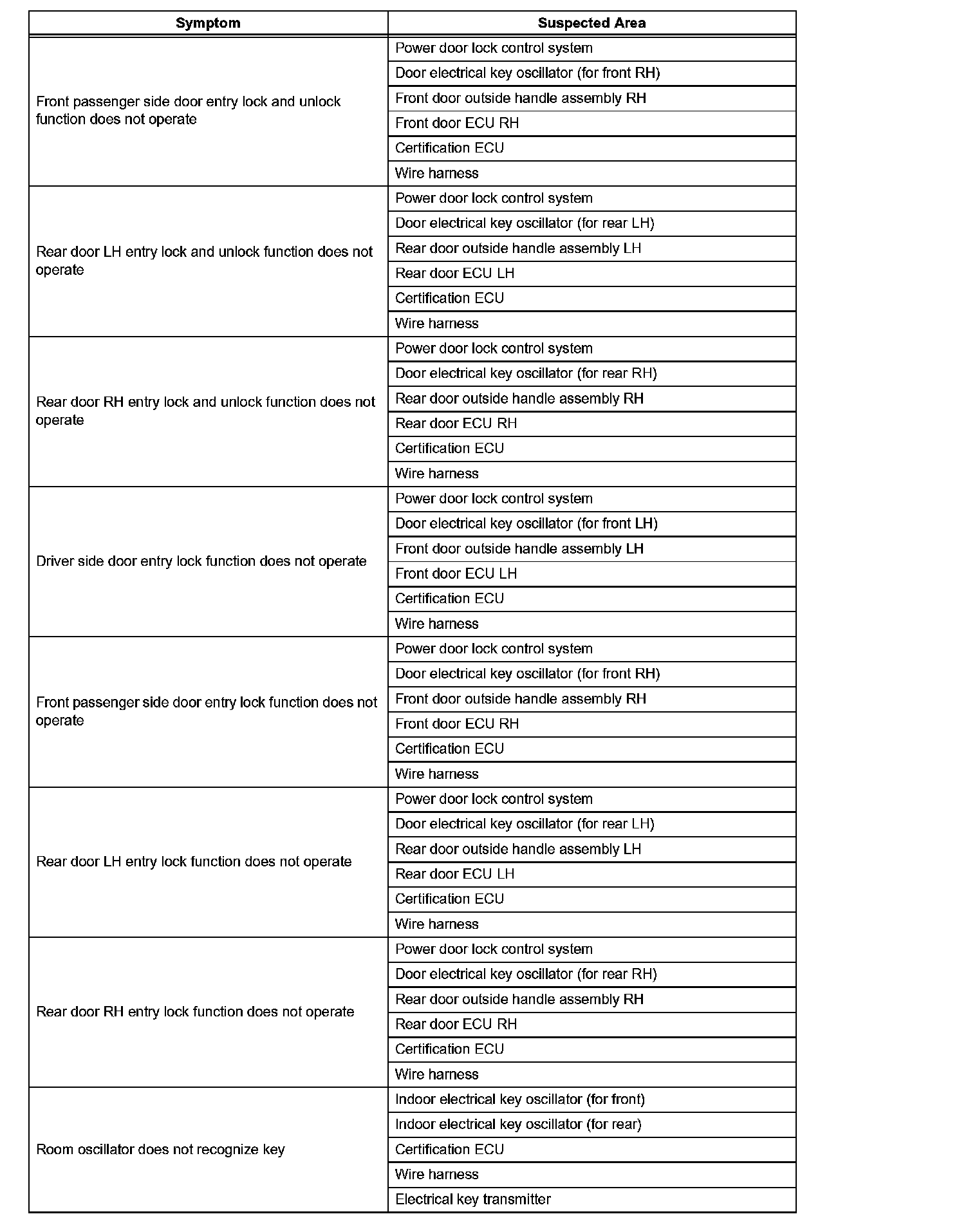

Problem Symptoms Table - Smart Access System With Push-button Start (Part 2):

Problem Symptoms Table - Smart Access System With Push-button Start (Part 3):

HINT: Use the table given to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
