Room Oscillator Does Not Recognize Key

Room Oscillator does not Recognize Key

DESCRIPTION
If the room oscillator does not recognize key, either of the following may be the cause: 1) communication between the indoor electrical key oscillator (for front) and electrical key transmitter cannot be performed; or 2) communication between the indoor electrical key oscillator (for rear) and electrical key transmitter cannot be performed.

Wiring Diagram:

Step 1:

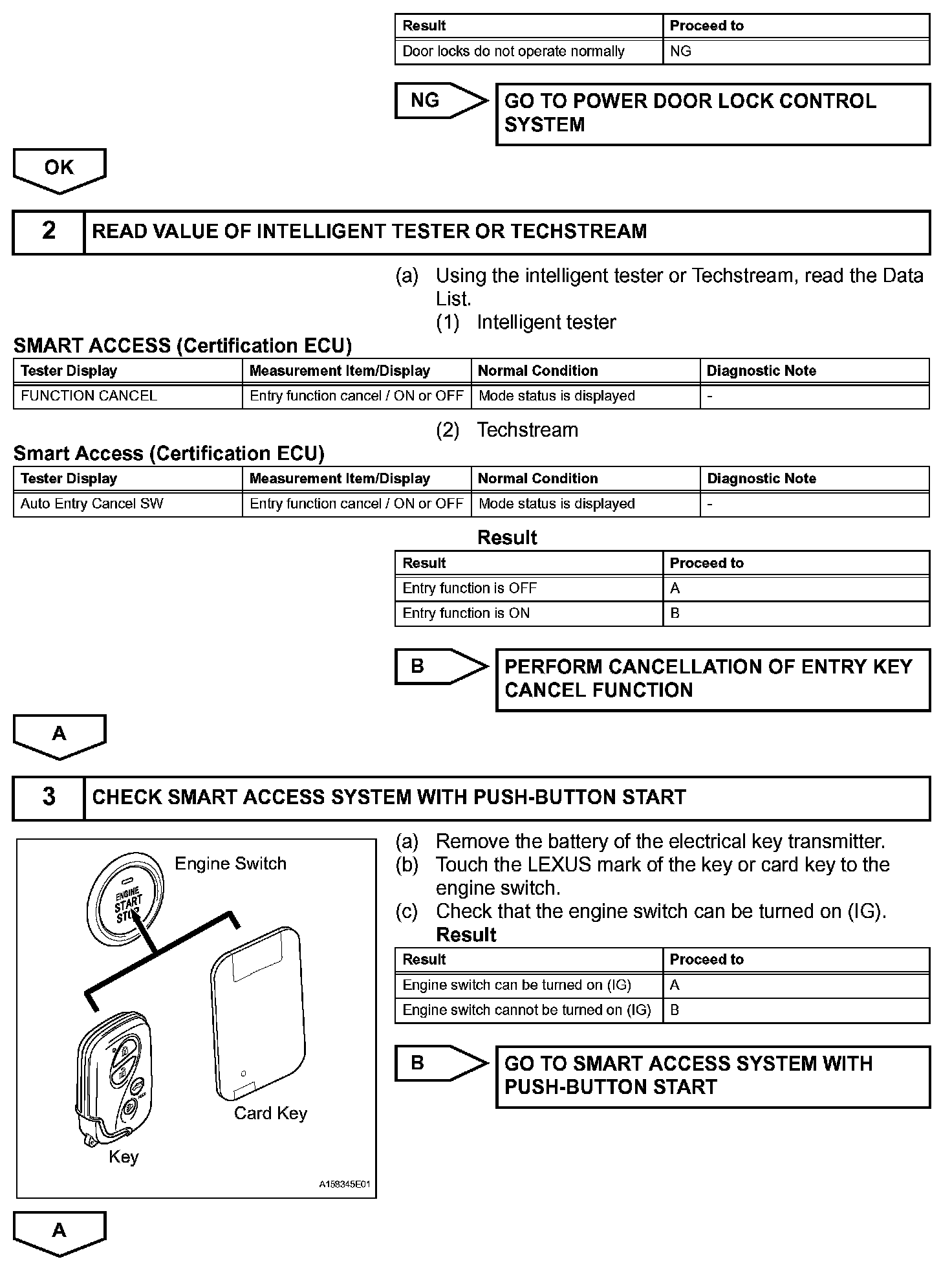

Step 1 (Continued)-3:

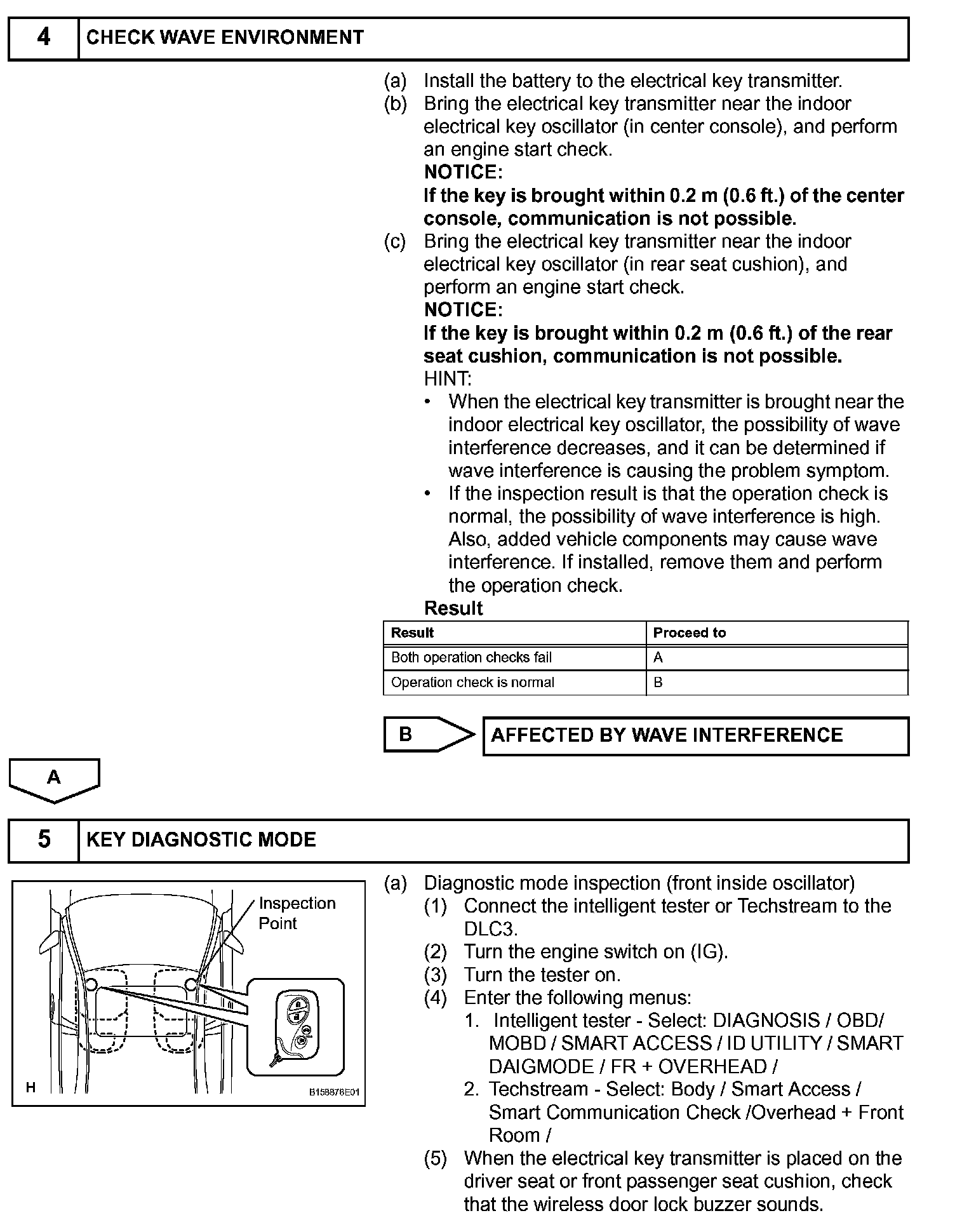

Step 4-5:

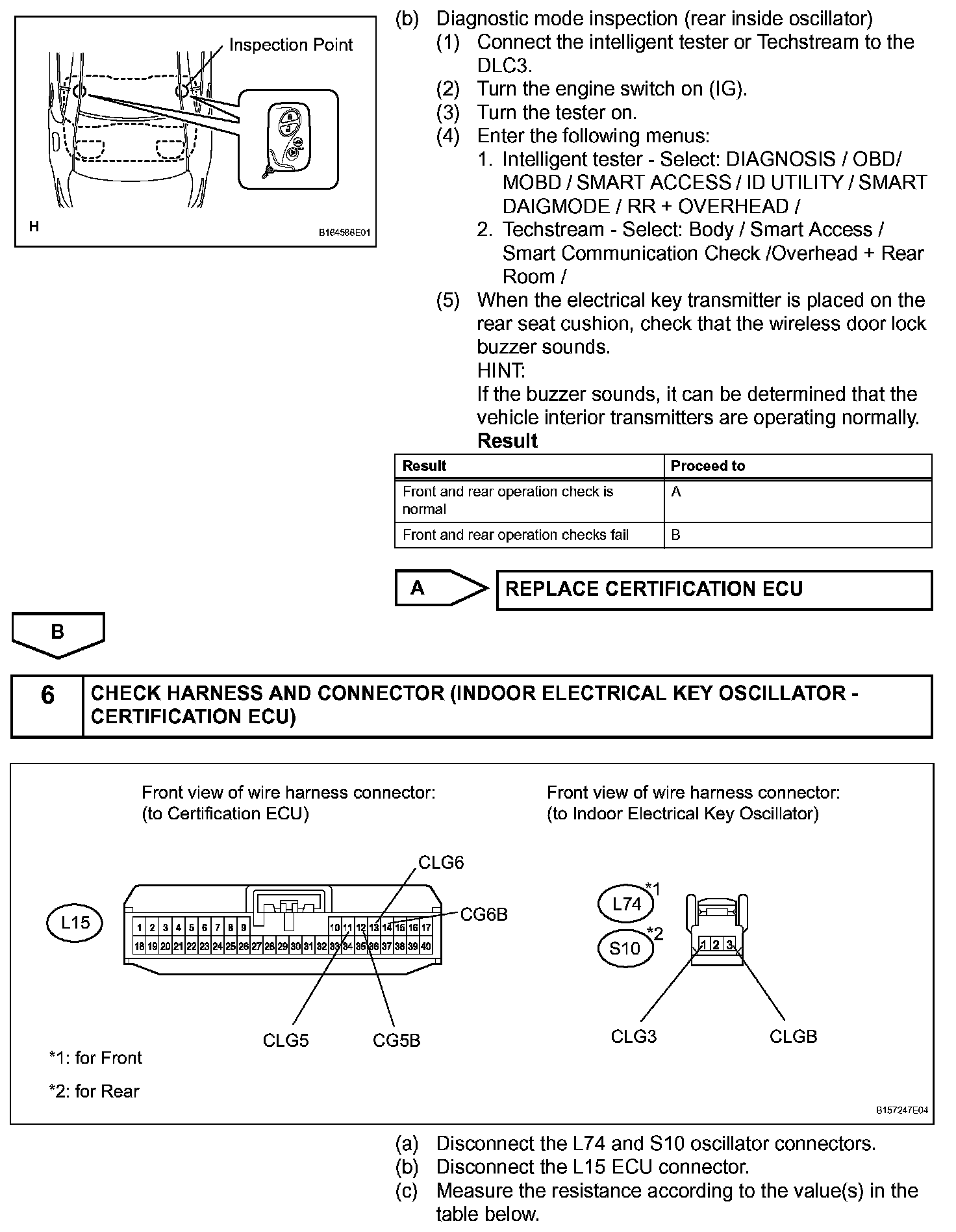

Step 5 (Continued)-6:

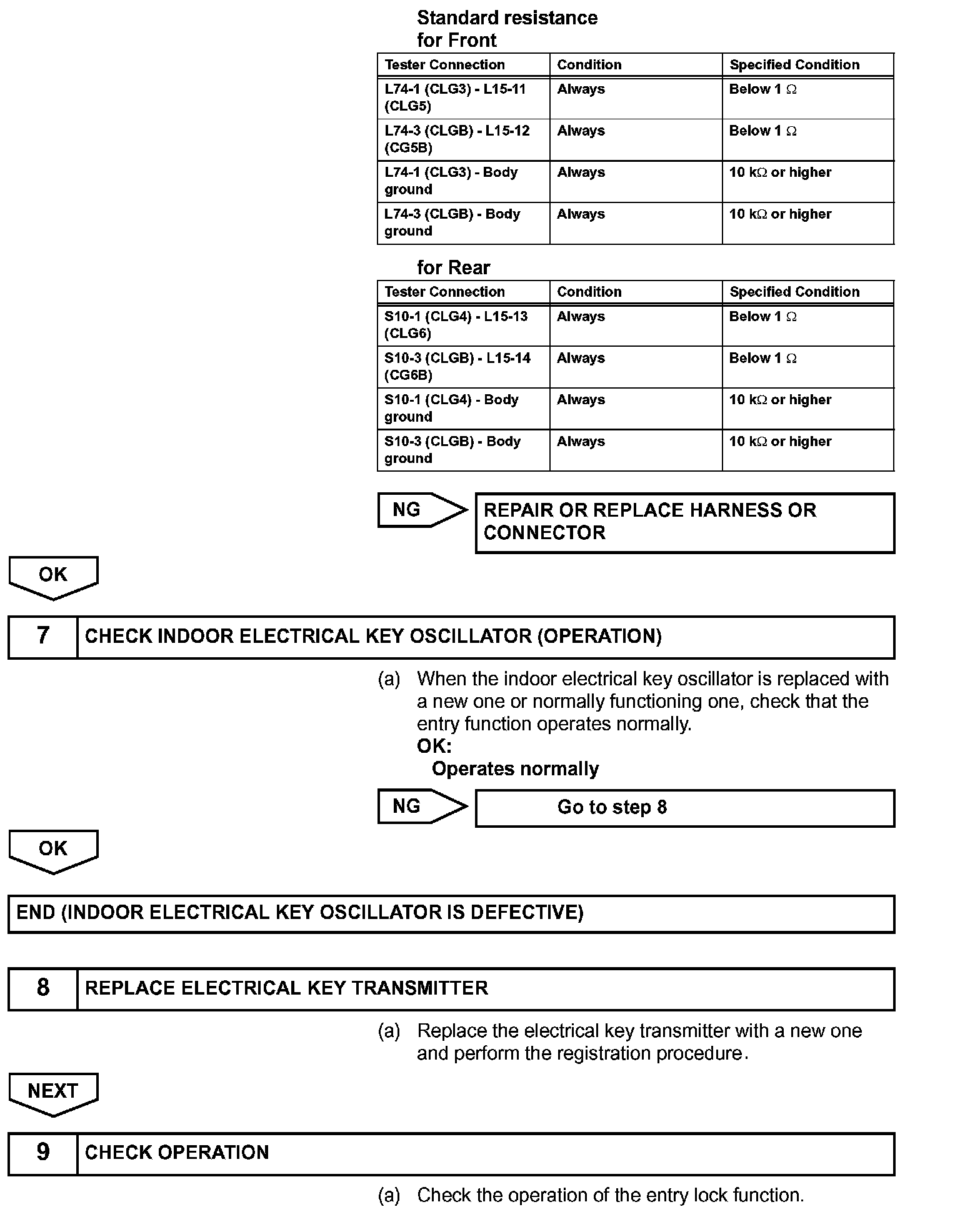

Step 6 (Continued)-9:

Step 9 (Continued):

INSPECTION PROCEDURE
