All Door Entry Lock / Unlock Functions and Wireless Functions Do Not Operate

All Door Entry Lock / Unlock Functions and Wireless Functions do not Operate

DESCRIPTION
When the entry operation and wireless operation door lock function does not operate, a malfunction or wave interference may be occurring in either of the following: 1) signal communication line between the door control receiver and certification ECU (line is used by entry and wireless); or 2) electrical key transmitter.

Wiring Diagram:

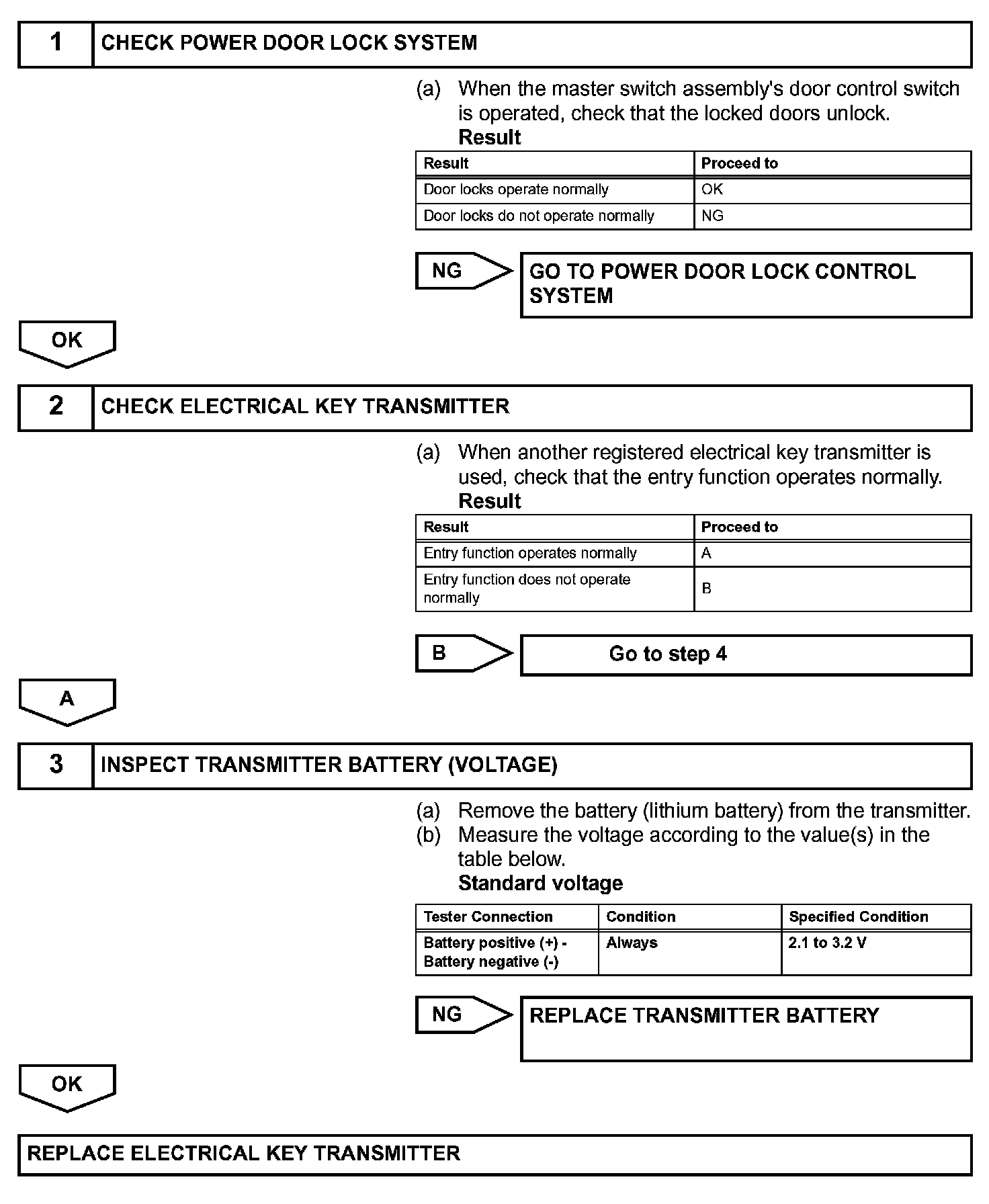

Step 1-3:

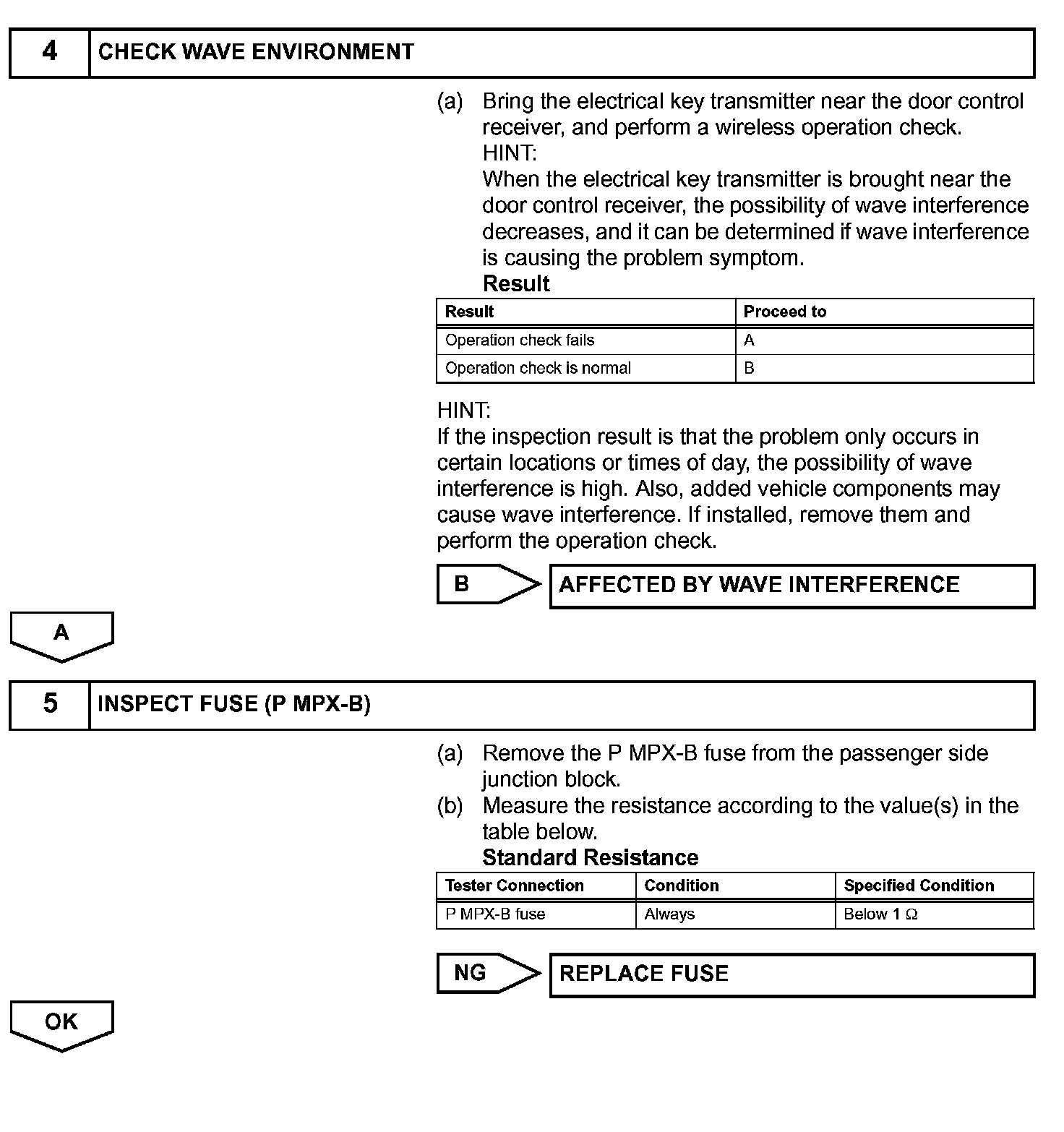

Step 4-5:

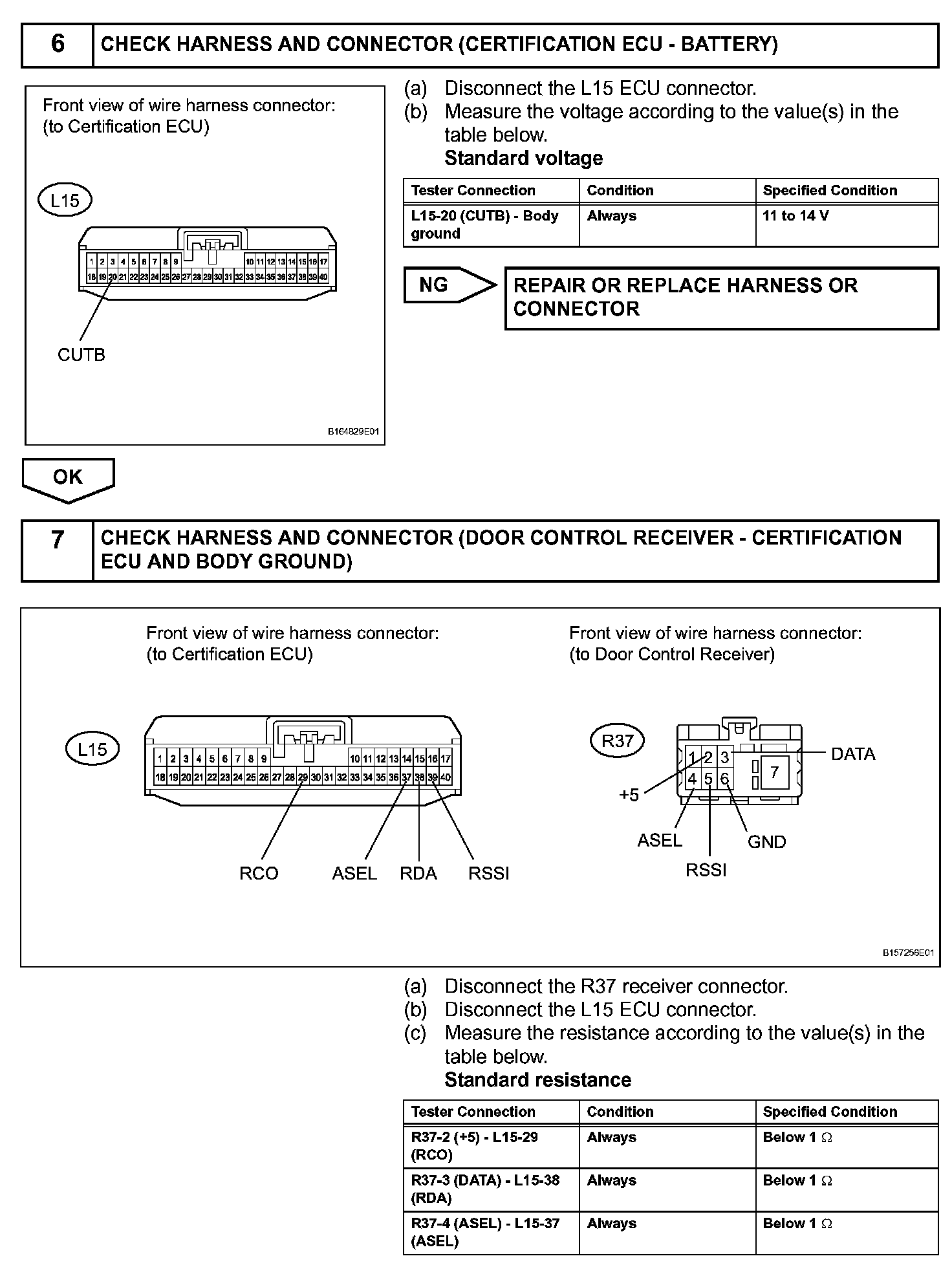

Step 6-7:

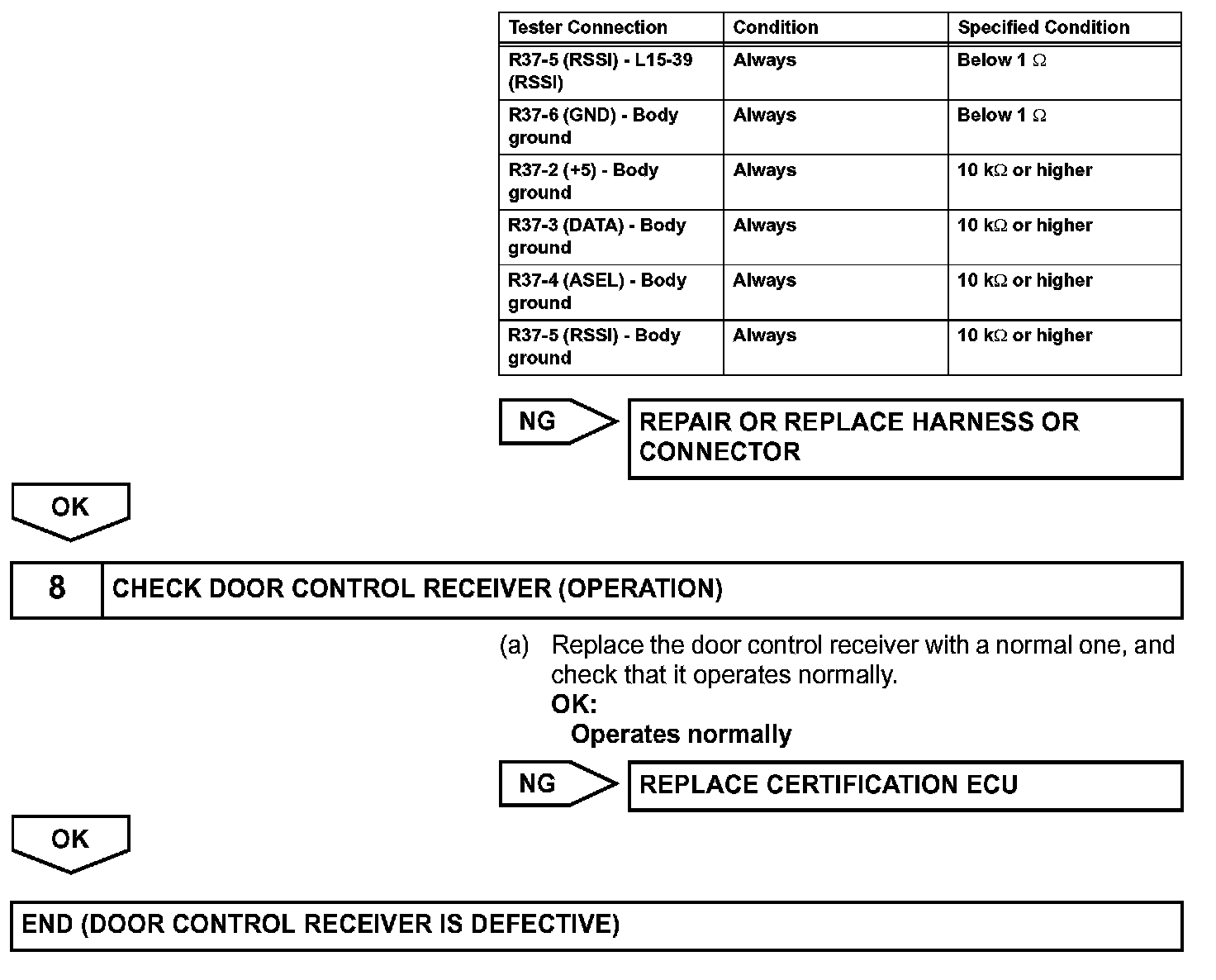

Step 7 (Continued)-8:

INSPECTION PROCEDURE
