Rear Axle Hub: Components
WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

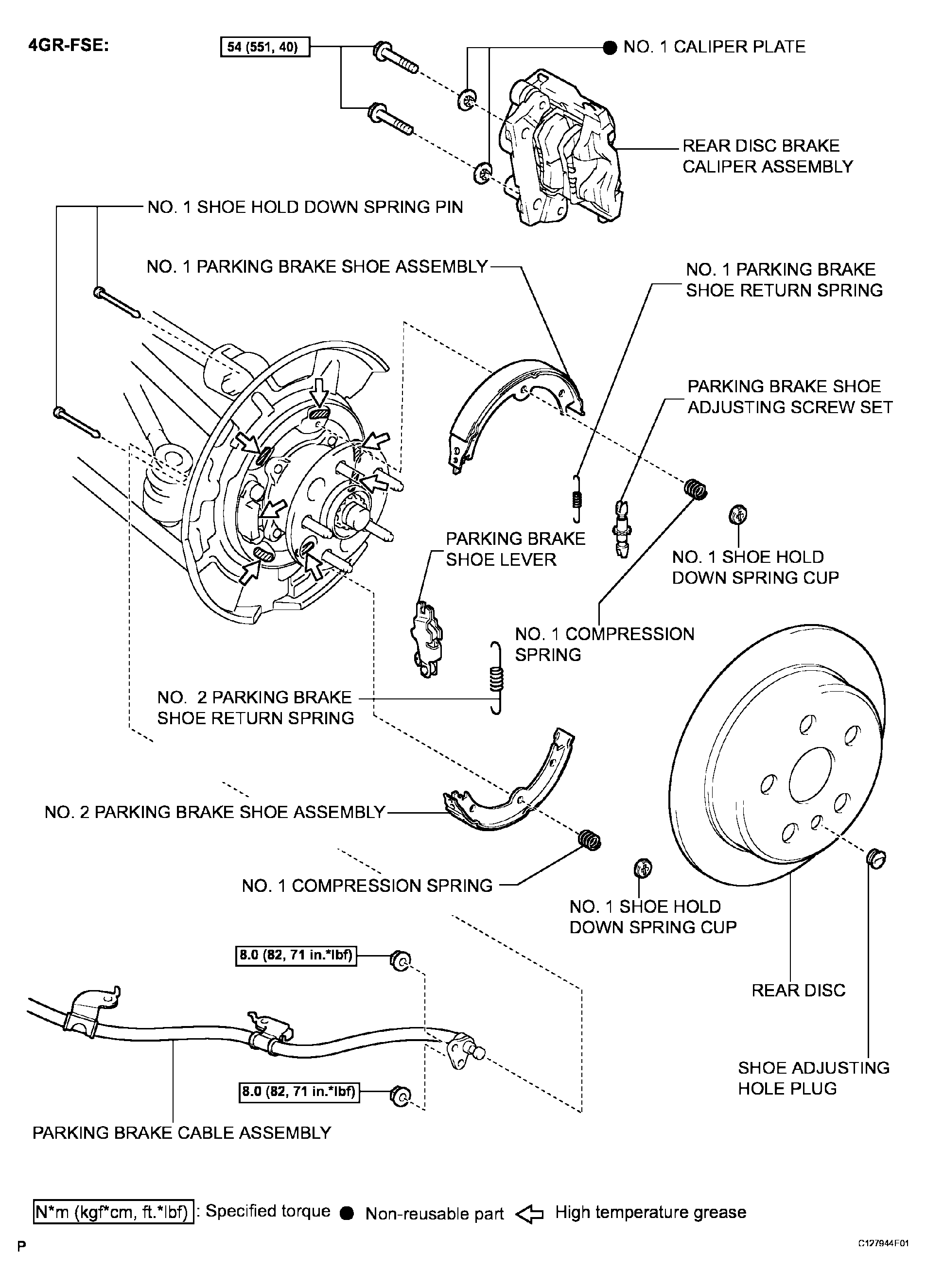

Fig 1: Rear Axle Hub Replacement Components (1 Of 3) With Torque Specifications
