Outer Mirror Switch: Installation

  1. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Standard)
    1. Engage the 4 claws to install the outer mirror switch assembly.

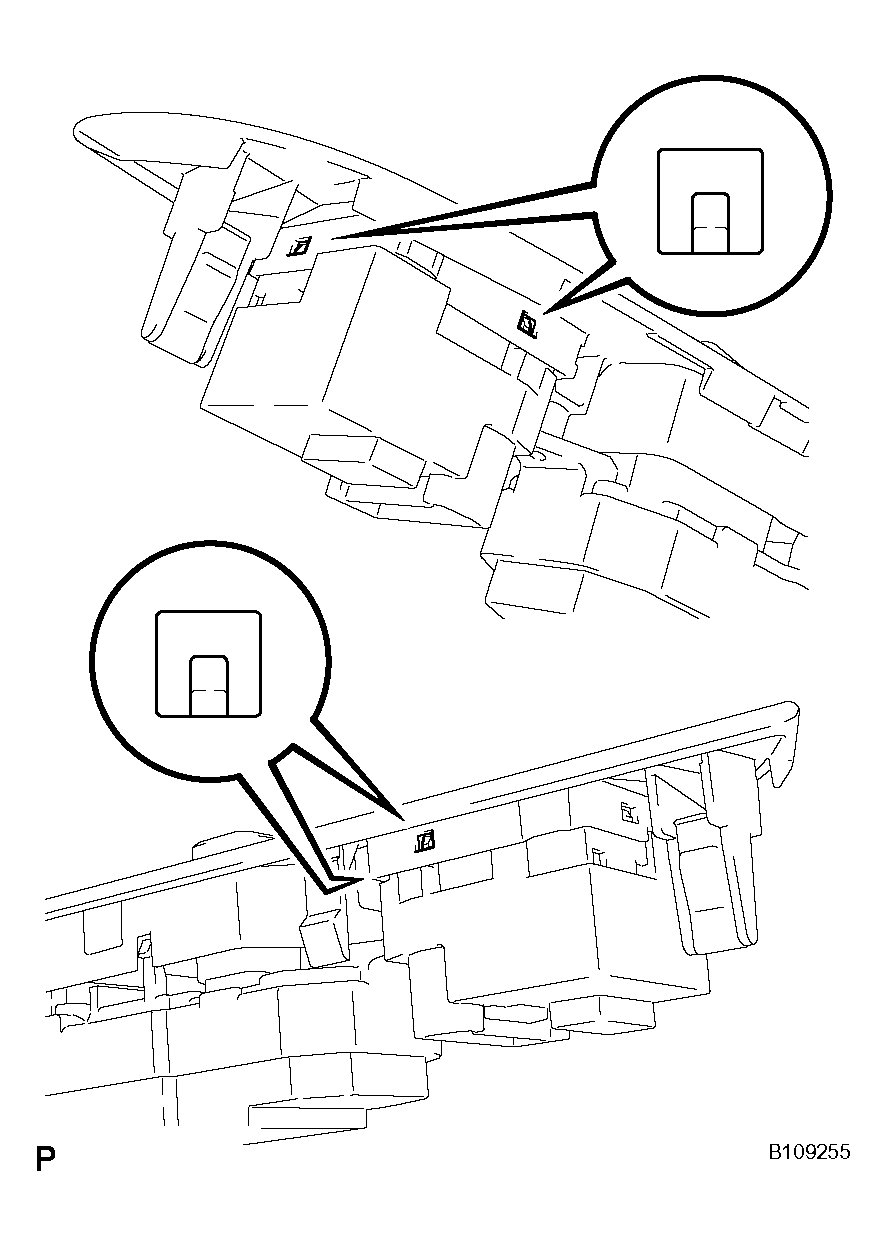

    Fig 1: Installing Outer Mirror Switch Assembly (For Standard)
    G04050873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel)
    1. Engage the 4 claws to install the outer mirror switch assembly.

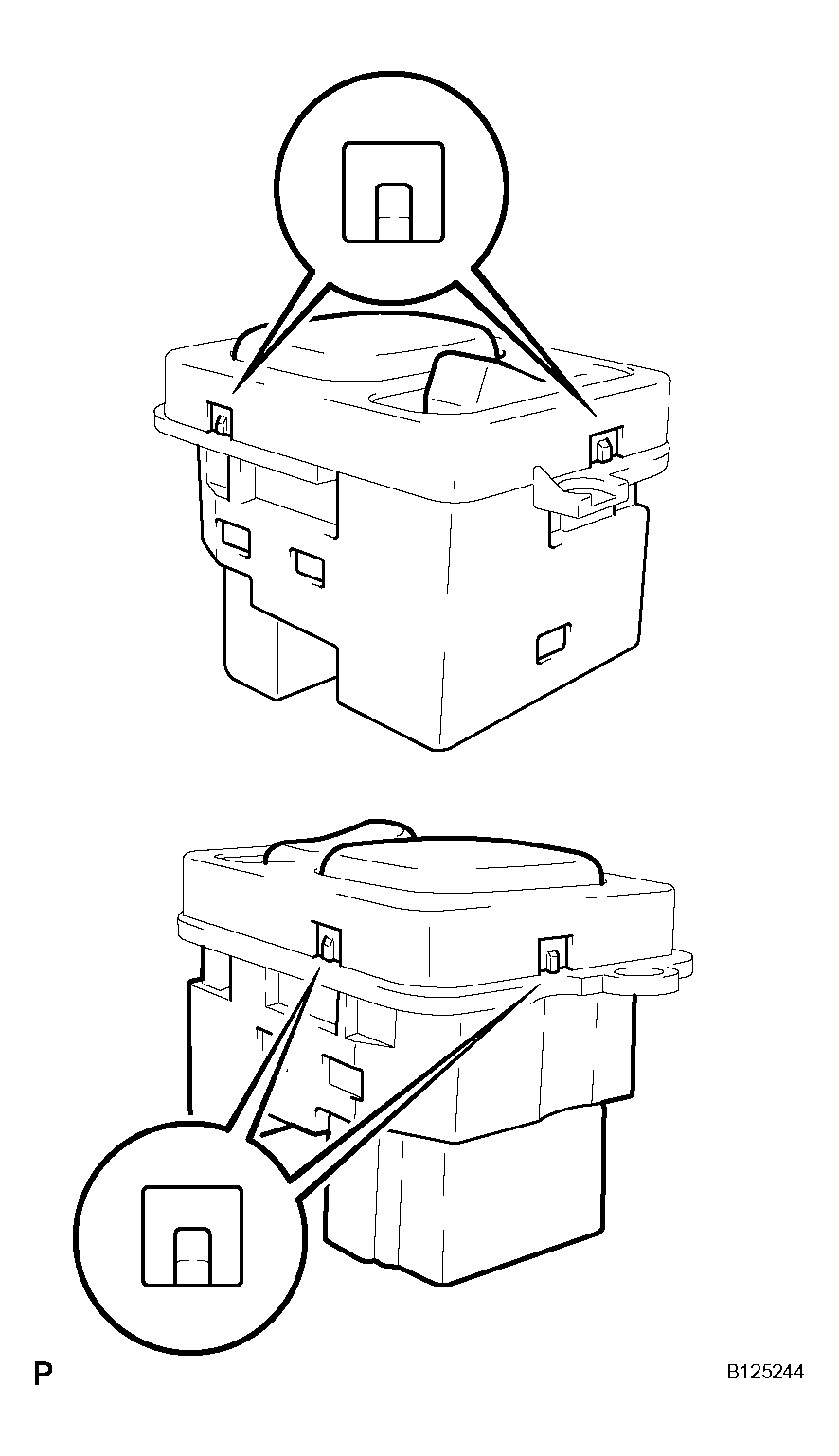

      Fig 2: Installing Outer Mirror Switch Assembly (For Wood Panel)
      G04050874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the outer mirror switch assembly with the front door armrest base cover lower LH with the 2 screws.
  3. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See Step 38 in  REASSEMBLY  )
  4. INITIALIZE POWER WINDOW CONTROL SYSTEM (See Step 40 in  REASSEMBLY  )
    Fig 3: Installing Outer Mirror Switch Assembly
    G04050875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
