Front Bumper: Reassembly

  1. INSTALL RADIATOR SUPPORT OPENING COVER
  2. INSTALL FRONT BUMPER SIDE RETAINER RH
  3. INSTALL FRONT BUMPER SIDE RETAINER LH
  4. INSTALL FRONT BUMPER REINFORCEMENT
    1. Install the front bumper reinforcement with the 6 bolts.

      Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

    2. Install the cooler (ambient temp sensor) thermistor with the bolt.
    3. Install the radiator support opening cover with the 2 clips.
  5. INSTALL FRONT BUMPER ENERGY ABSORBER

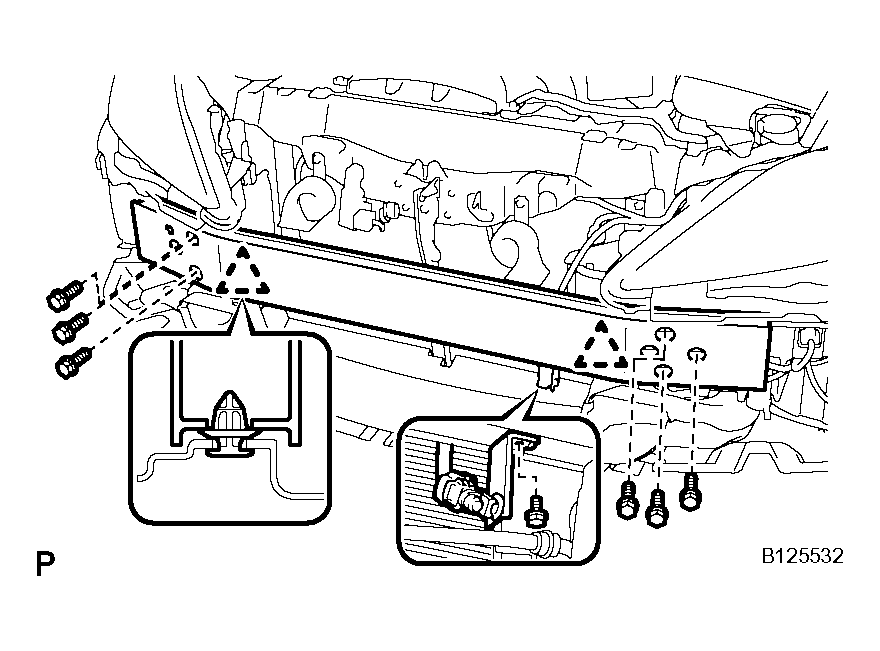

    Fig 1: Installing Radiator Support Opening Cover With Clips
    G04051533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT BUMPER COVER
  7. INSTALL FRONT FENDER LINER RETAINER
  8. INSTALL FRONT BUMPER PROTECTOR
    1. Install 2 new front bumper protectors.
  9. INSTALL FRONT SPOILER COVER LH
  10. INSTALL FRONT SPOILER COVER RH
  11. INSTALL LOWER RADIATOR GRILLE
    1. Install the lower radiator grille with the 14 claws.
    2. Using a soldering gun, install the lower radiator grille at the 2 portions shown in Fig 2 .
  12. INSTALL FRONT BUMPER GUARD COVER RH
  13. INSTALL FRONT BUMPER GUARD COVER LH
  14. INSTALL LOWER FRONT BUMPER COVER
  15. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET

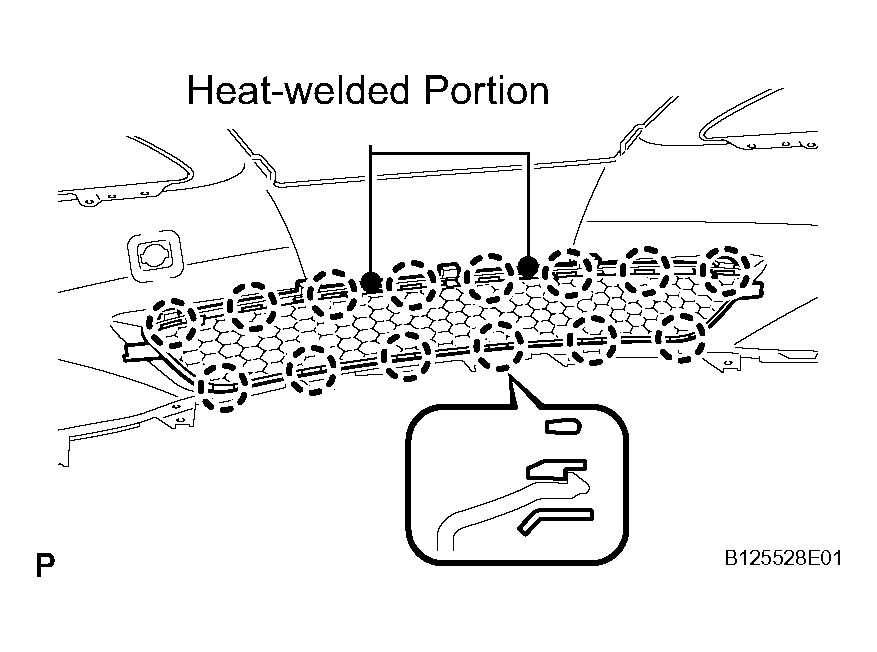

    Fig 2: Installing Lower Radiator Grille With Claws
    G04051534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL RADIATOR GRILLE EMBLEM (w/ Dynamic Radar Cruise Control System)
  17. INSTALL RADIATOR GRILLE EMBLEM (w/o Dynamic Radar Cruise Control System)

    HINT:

    When installing the radiator grille emblem, heat the vehicle body and radiator grille emblem using a heat light.

    Heating temperature:

    HEATING TEMPERATURE

    Item Temperature
    Vehicle Body 40 to 60°C (104 to 140°F)
    Emblem 20 to 30°C (68 to 86°F)
    NOTE: Do not heat the vehicle body and radiator grille emblem excessively.
    1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Clean the radiator grille emblem. (If reusing the radiator grille emblem)
      1. Using a heat light, heat the radiator grille emblem.
      2. Remove the double-sided tape from the radiator grille emblem.
      3. Wipe off any tape adhesive residue with cleaner.
      4. Apply new double-sided tape to the radiator grille emblem.
    3. Install the radiator grille emblem.
      1. Using a heat light, heat the vehicle body and radiator grille emblem.
      2. Remove the peeling paper from the face of the radiator grille emblem.

        HINT:

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the radiator grille emblem.

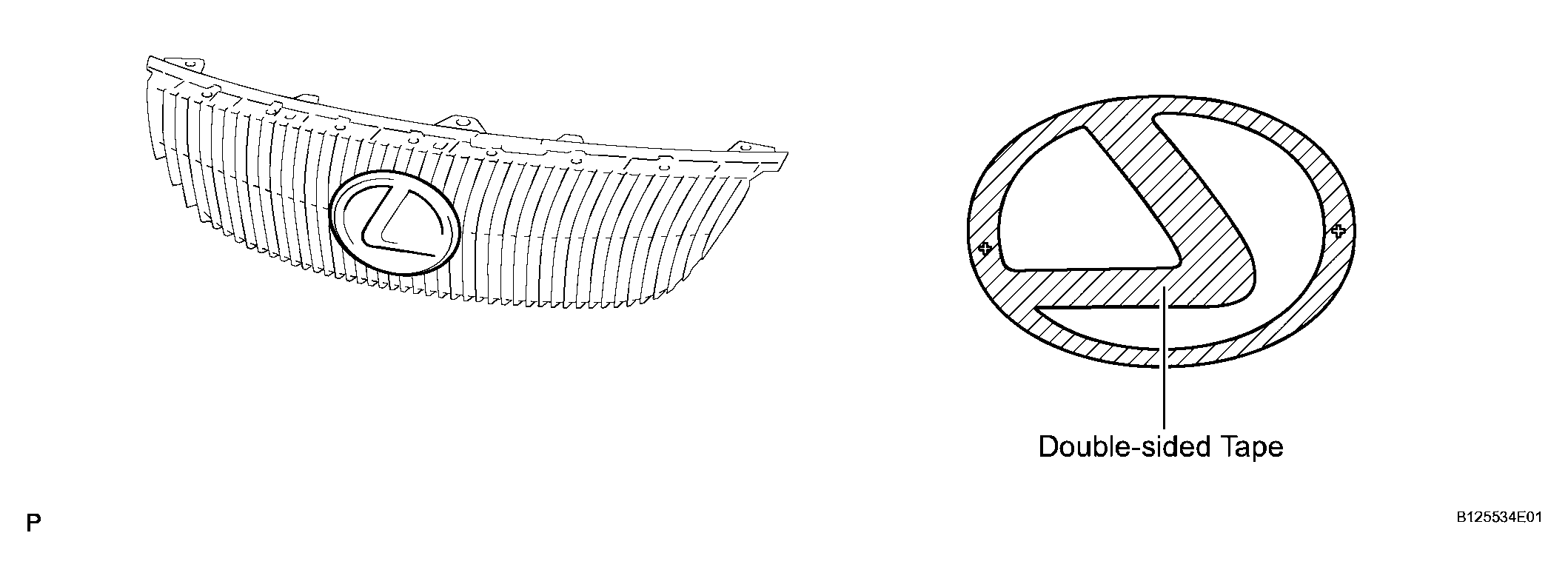

    Fig 3: Identifying Radiator Grille Emblem
    G04051535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL RADIATOR GRILLE
  19. INSTALL RADIATOR GRILLE MOLDING
  20. INSTALL RADIATOR GRILLE PROTECTOR
  21. INSTALL HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)
  22. INSTALL HEADLIGHT HOSE (w/ Headlight Cleaner System)
  23. INSTALL NO. 4 ENGINE ROOM WIRE
  24. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System) (See  INSTALLATION  )
  25. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)
  26. INSTALL HEADLIGHT CLEANER WASHER NOZZLE LH (w/ Headlight Cleaner System) (See Step 2 in  INSTALLATION  )
  27. INSTALL HEADLIGHT CLEANER WASHER NOZZLE RH (w/ Headlight Cleaner System)
  28. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Clearance Sonar System)
  29. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Clearance Sonar System) (See  INSTALLATION  )
  30. INSTALL FOG LIGHT ASSEMBLY LH (See  INSTALLATION  )
  31. INSTALL FOG LIGHT ASSEMBLY RH
