Clearance Warning Buzzer: Components

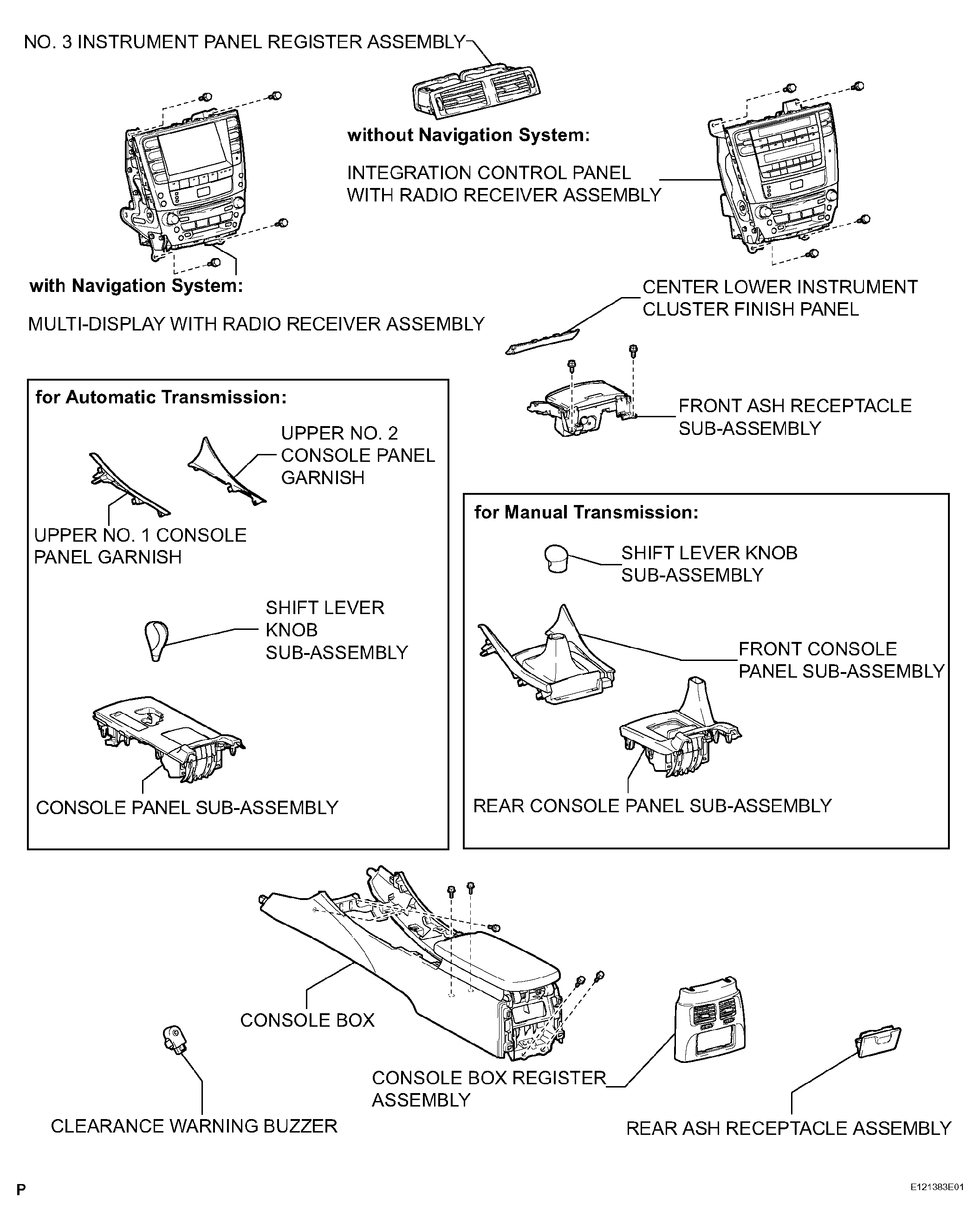

Fig 1: Identifying Clearance Warning Buzzer Components
G04050623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
