Navigation Antenna: Components

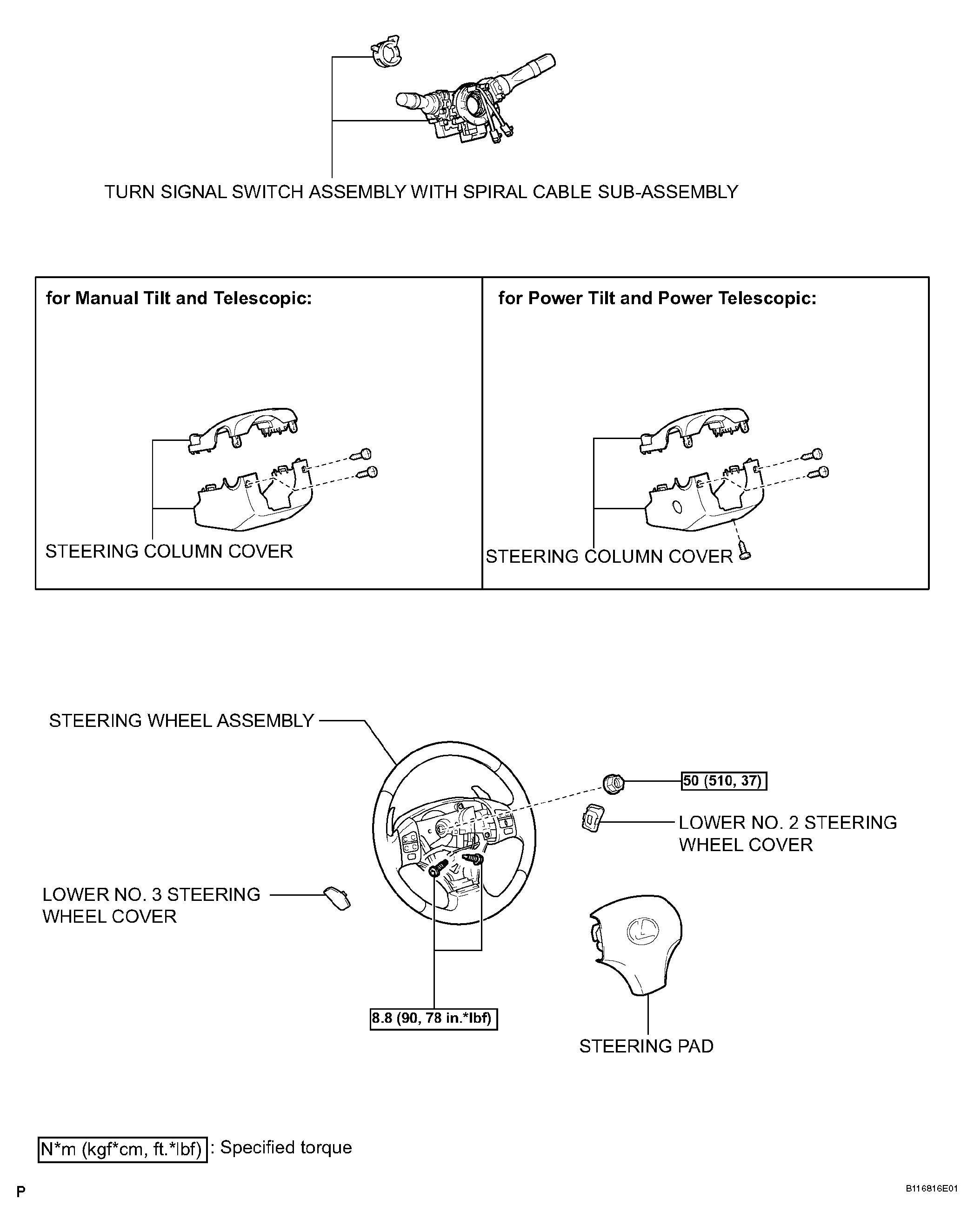

Fig 1: Exploded View Of Navigation Antenna With Torque Specifications (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

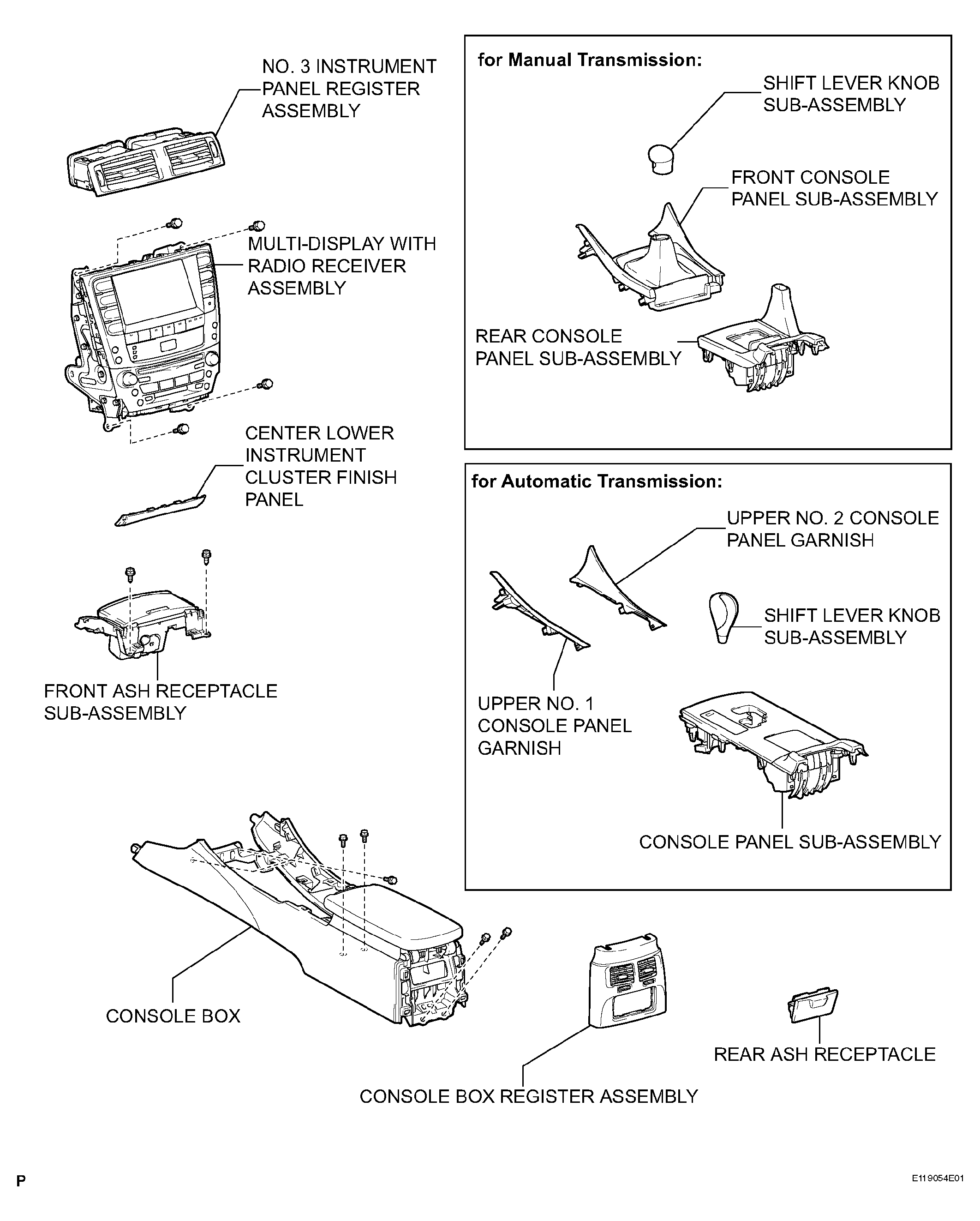

Fig 2: Exploded View Of Navigation Antenna With Torque Specifications (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Locating Instrument Panel Safety Pad Components With Torque Specifications (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Locating Instrument Panel Safety Pad Components With Torque Specifications (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Locating Instrument Panel Safety Pad Components With Torque Specifications (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

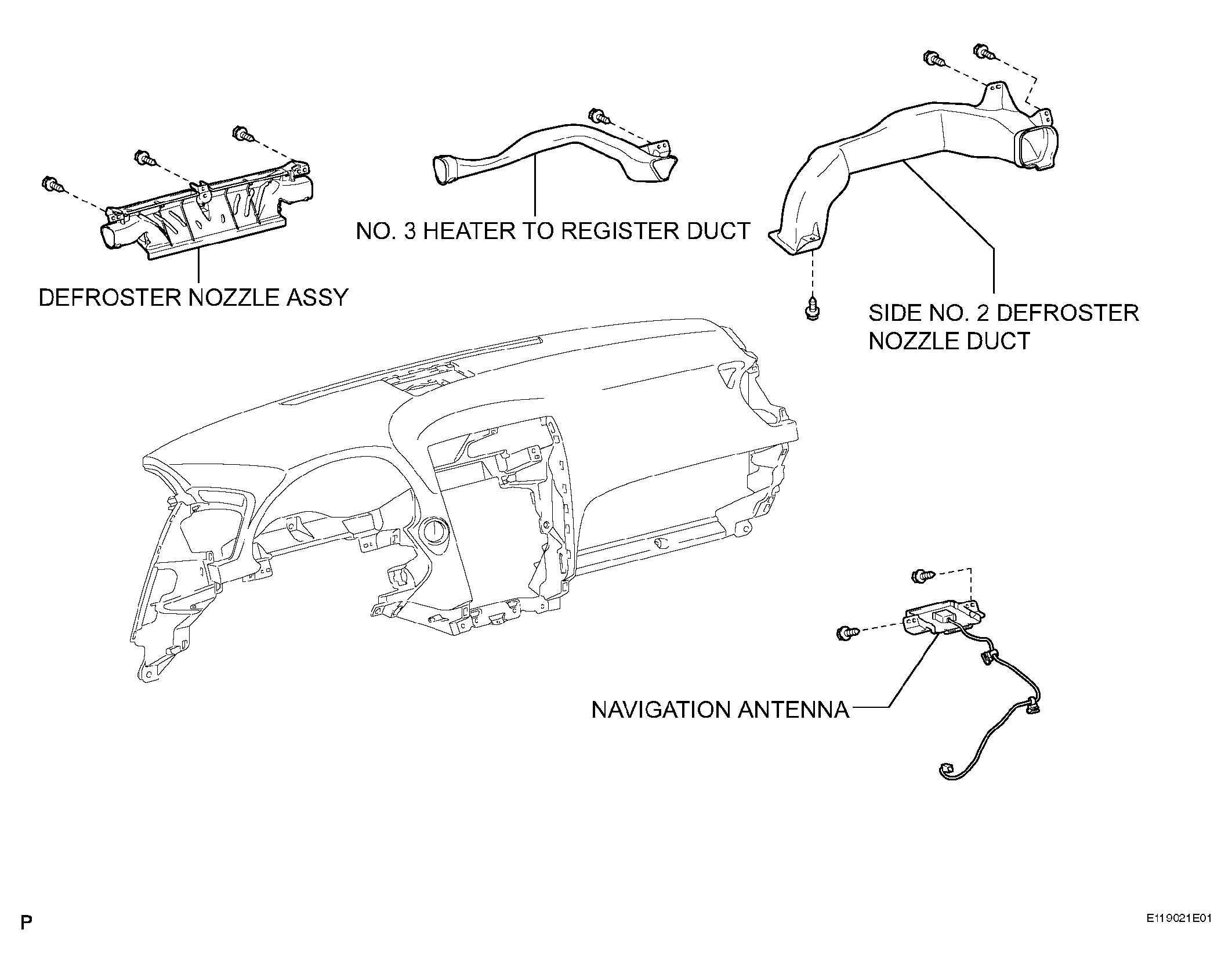

Fig 6: Exploded View Of Navigation Antenna With Torque Specifications (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
