Hazard Warning Switch: Components

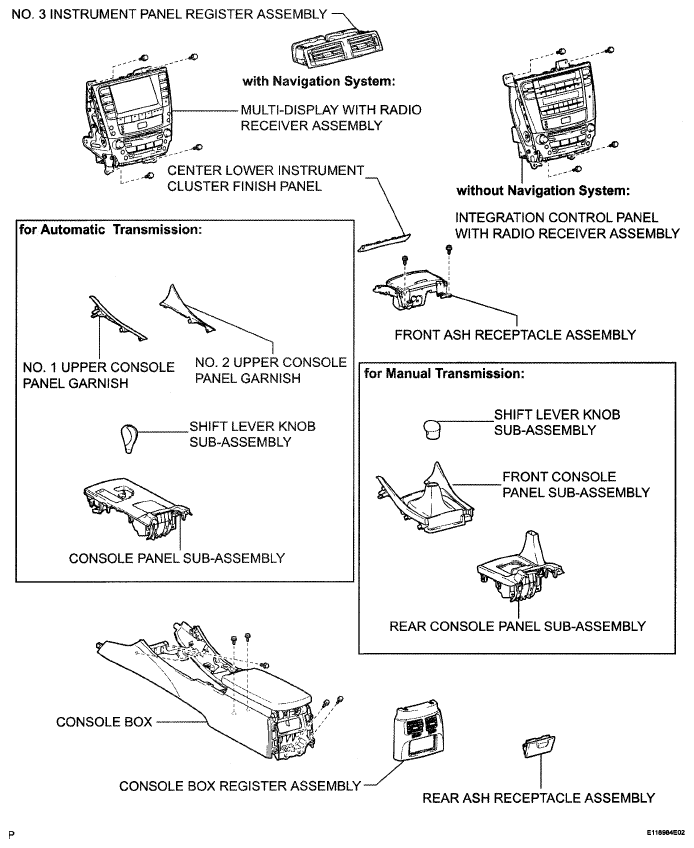

Fig 1: Identifying Hazard Warning Switch Components (1 Of 2)
G05320548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Hazard Warning Switch Components (2 Of 2)
G05320549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
