Fuel Injector

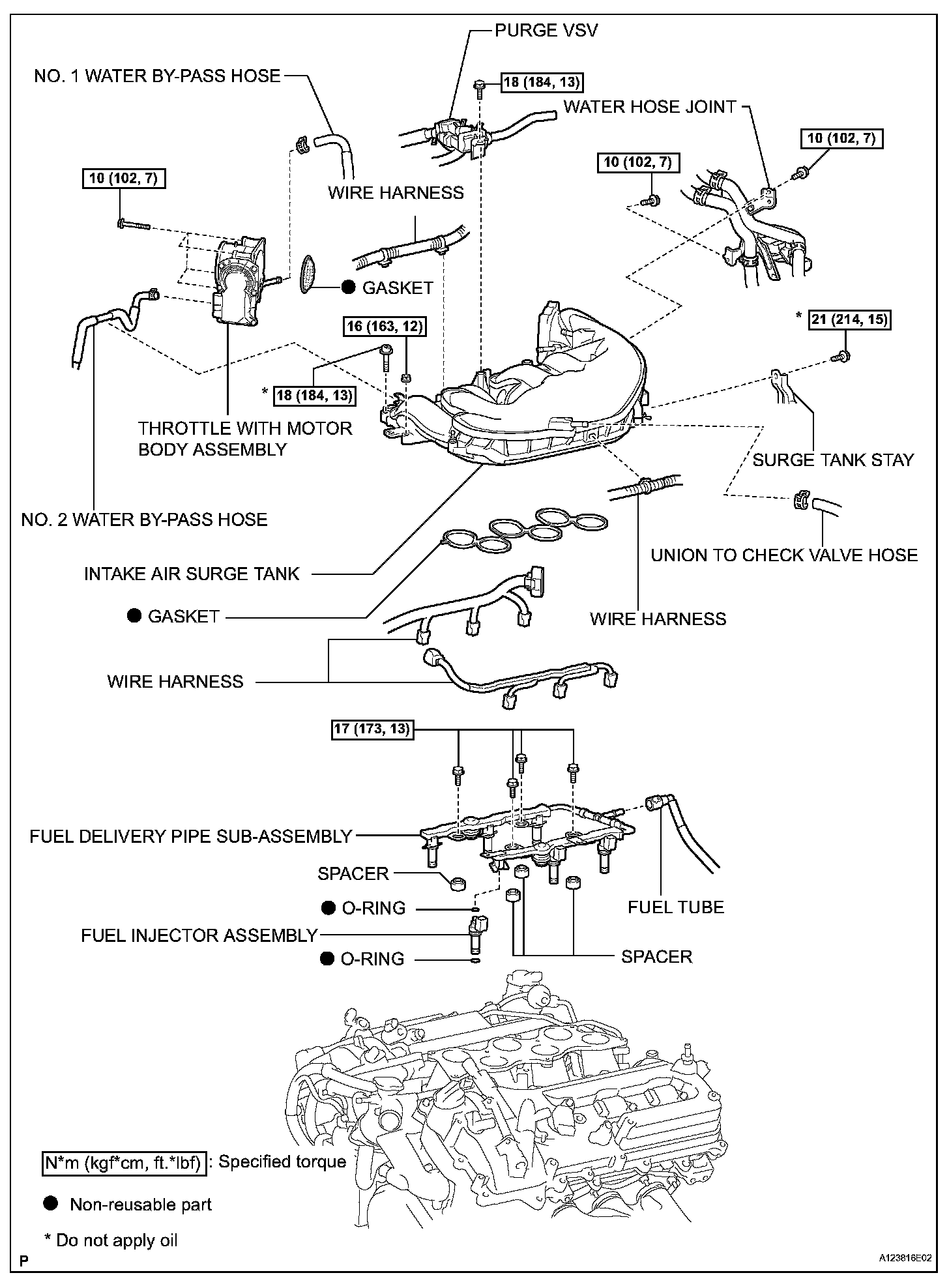

Fuel Injector (For Port Injection):



Fuel Injector (For Port Injection):

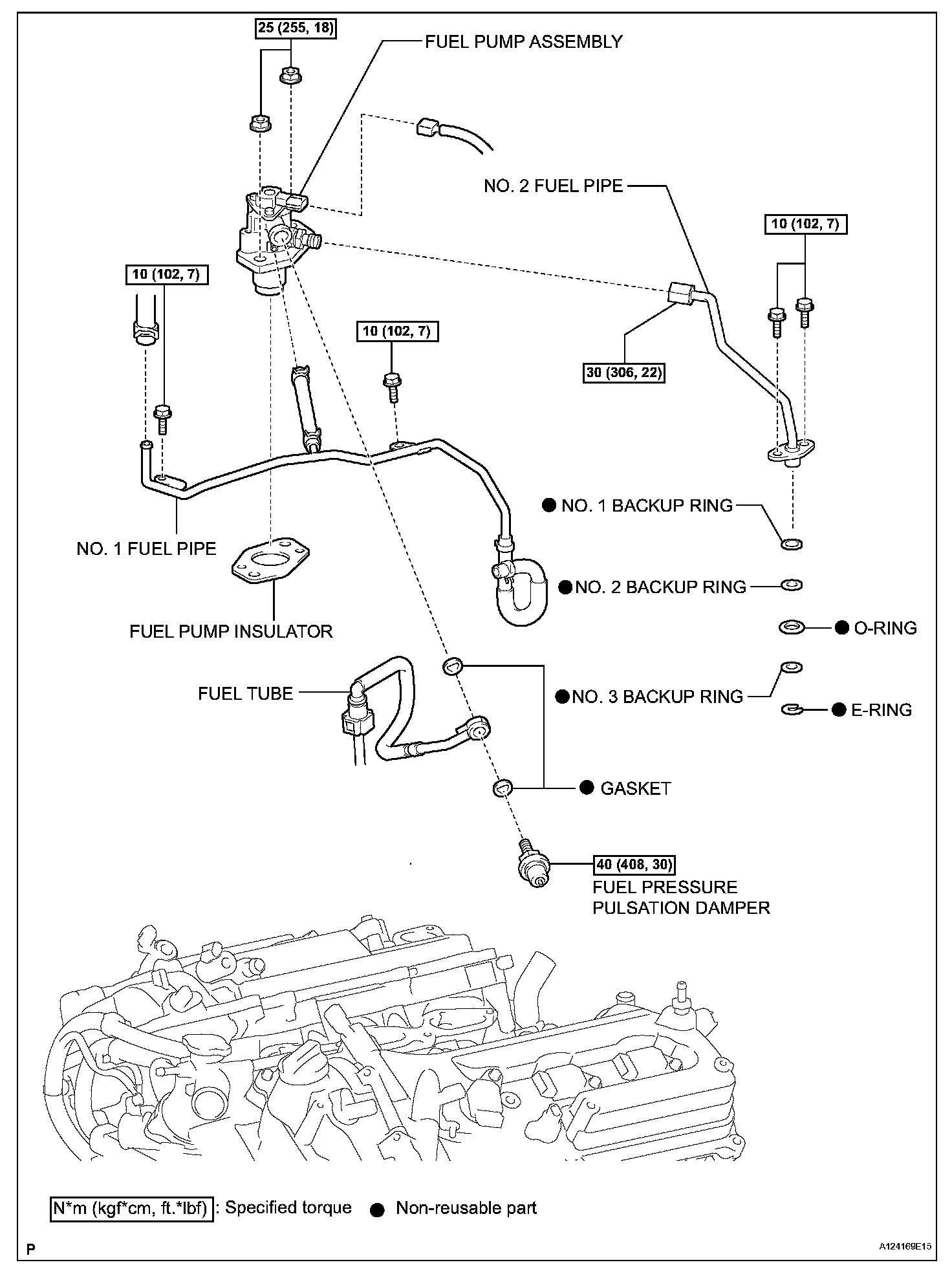

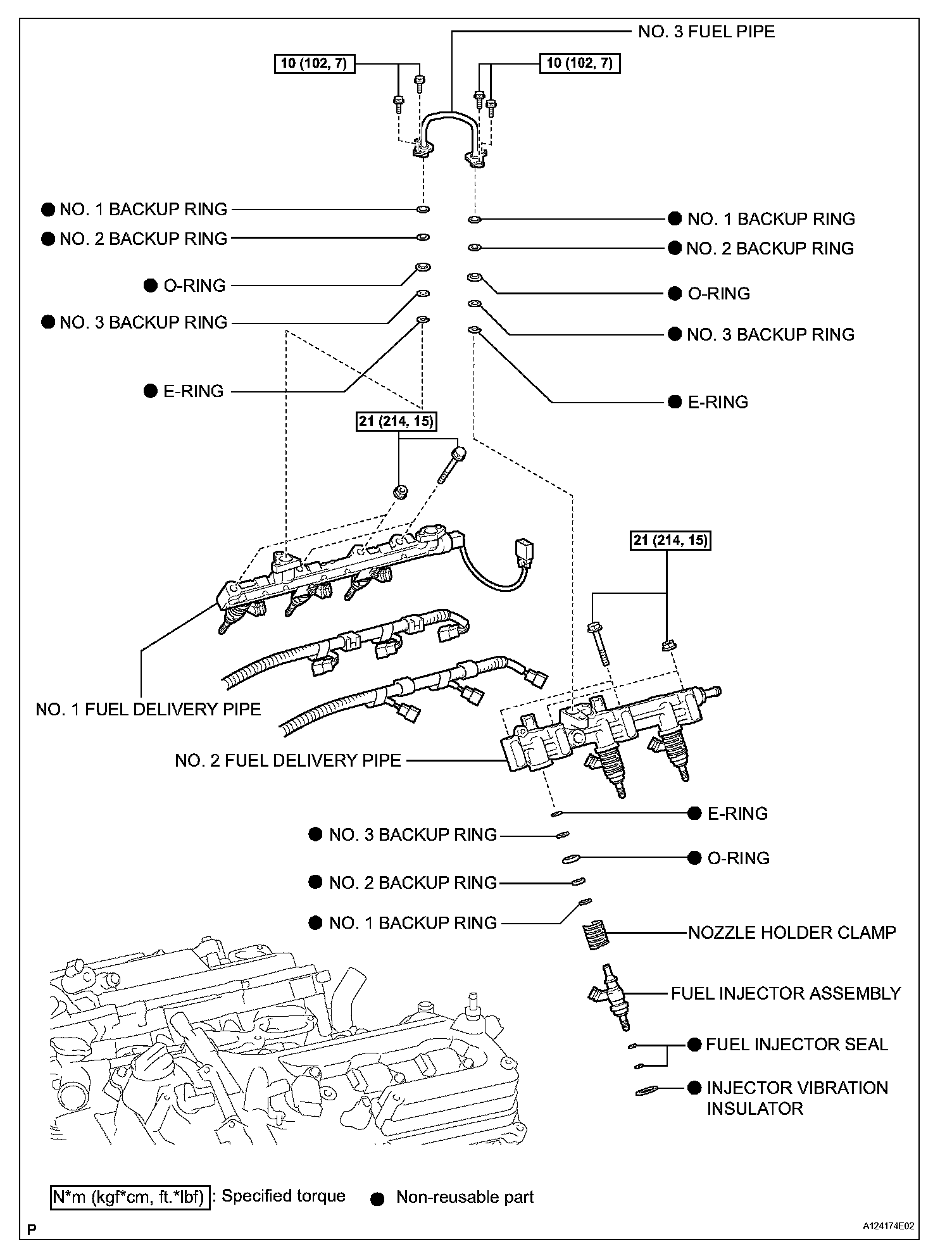

Fuel Injector(For Direct Injection):



Fuel Injector(For Direct Injection):



Fuel Injector(For Direct Injection):



Fuel Injector(For Direct Injection):



Injector Driver:



Injector Driver:
