Distance Control ECU Communication Stop Mode

Distance Control ECU Communication Stop Mode

DESCRIPTION

Detection Item:






HINT: "CRUISE CONTROL" refers to the circuit that includes the distance control ECU.

Wiring Diagram:

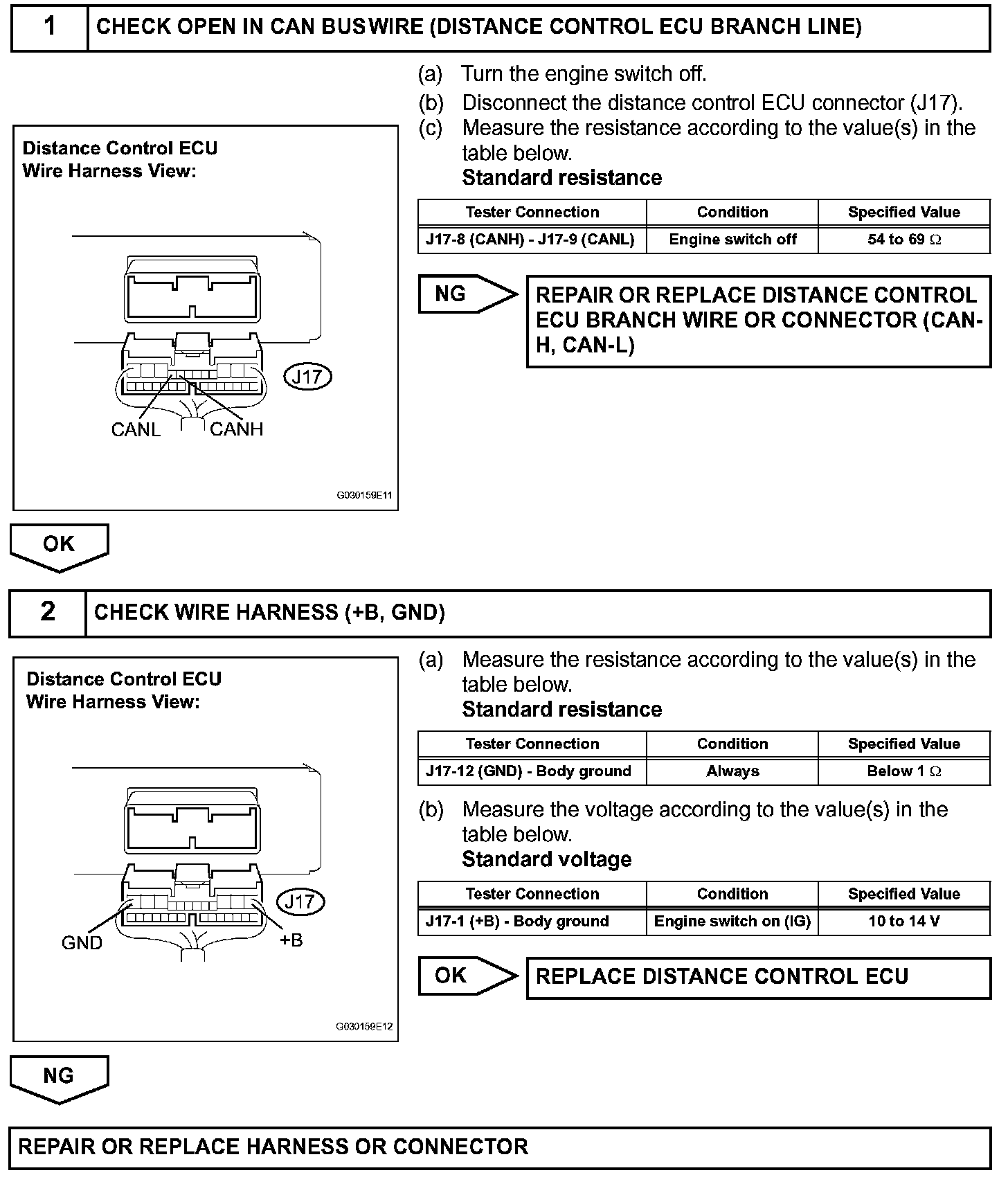

Step 1-2:




INSPECTION PROCEDURE
