Touch Sensor Circuit

Touch Sensor Circuit

DESCRIPTION

This circuit receives the signal indicating whether or not a touch sensor signal is detected.

Wiring Diagram:






Step 1:

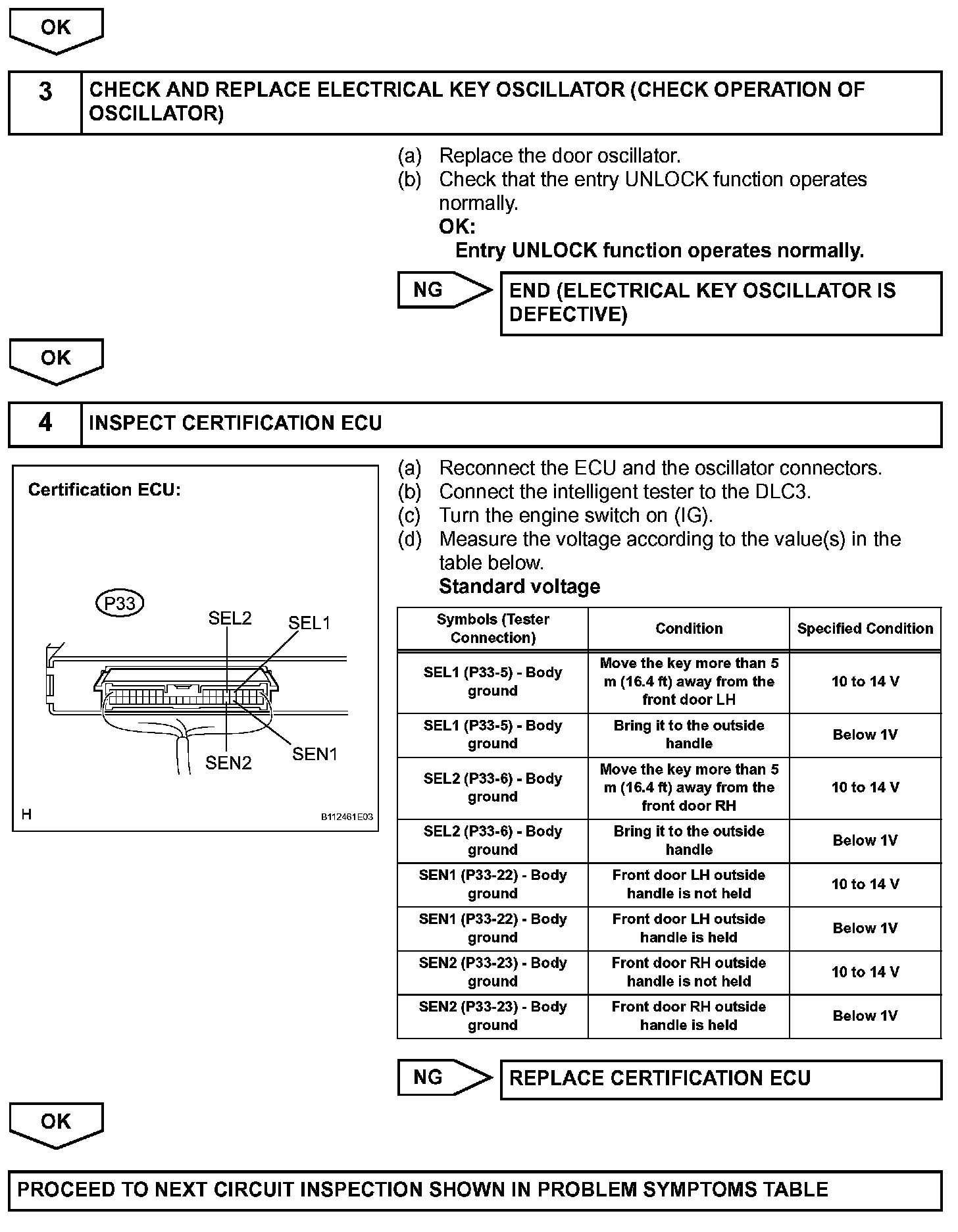

Step 1 (Continued)-2:

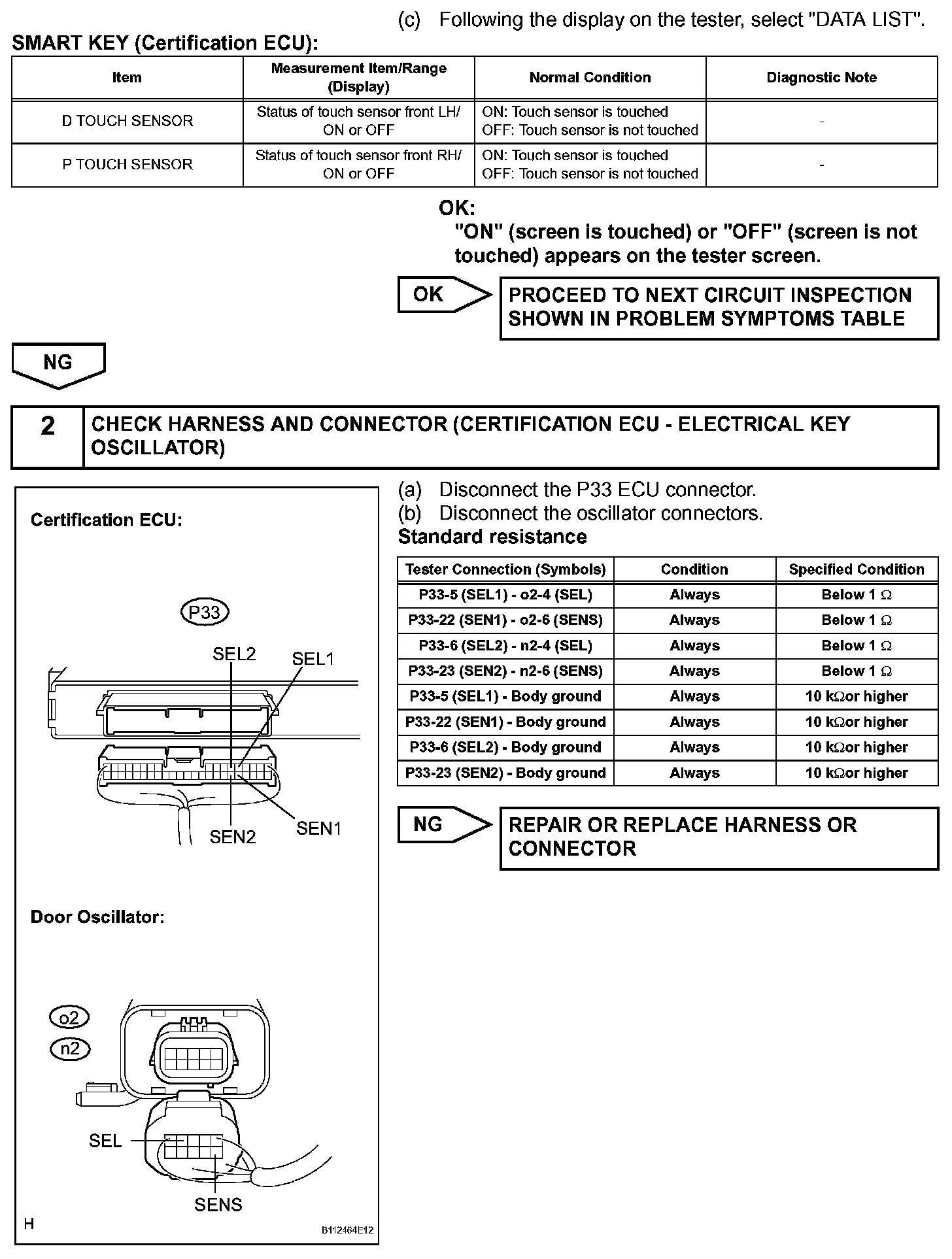

Step 2 (Continued)-4:




INSPECTION PROCEDURE
