DCC Fuse Installation During PDS (PD029-06)
Publication date: 2006-08-01Reference number: PD029-06
DCC FUSE INSTALLATION DURING PDS
TECHNICAL SERVICE BULLETIN
Reference Number(s): PD029-06, Date of Issue:
August 01, 2006
| LEXUS: | 2007 IS 250 & IS 350 |
| Section: | PRE-DELIVERY SERVICE |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
Introduction
The DCC fuse has been removed at the assembly plant to reduce parasitic current draw in transit and storage.
Applicable Vehicles
- 2007 model year IS 250 and IS 350 vehicles.
Installation Procedure

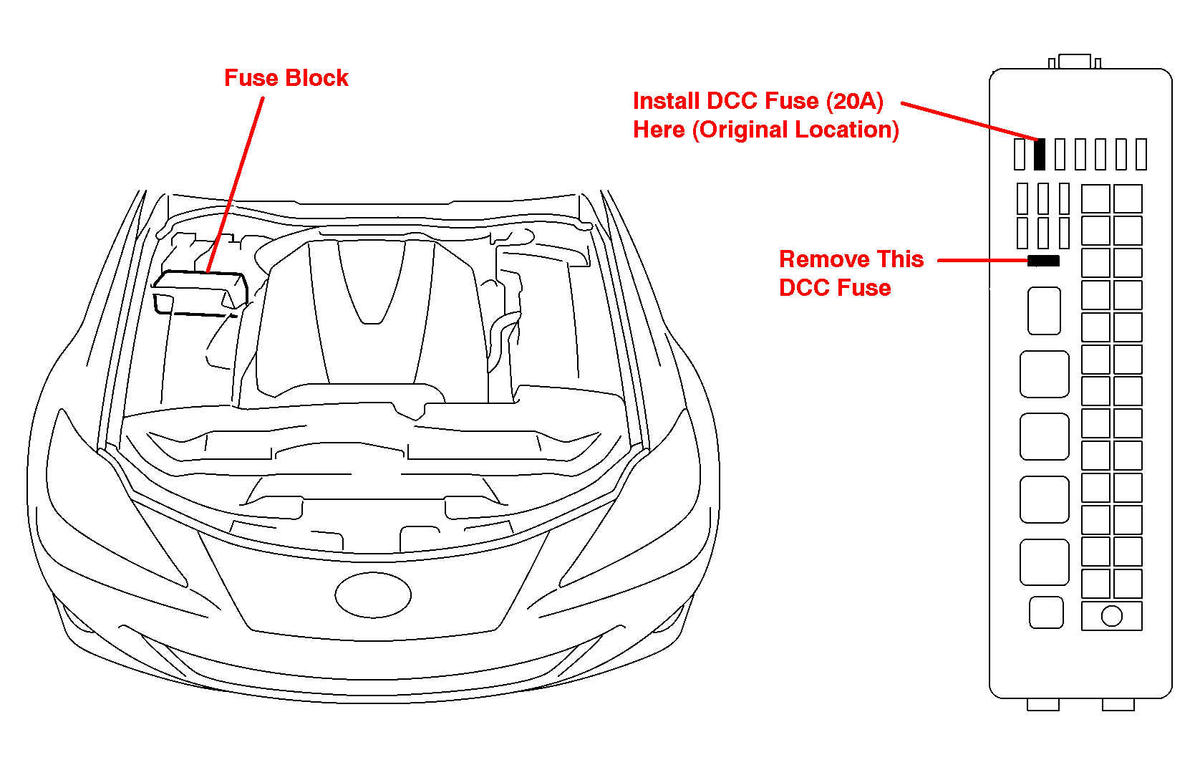

The DCC fuse (20A) is stored in the blank space of the Fuse Block in the engine compartment. Reinstall the DCC fuse during Pre-Delivery Service (PDS) at the dealership as shown.
NOTE:
- Removing the DCC fuse cuts off power sources relating to the DOME and MPX-B fuses.
- If the vehicle is stored at the dealership for a long period of time after PDS, disconnect the negative (-) battery terminal to prevent battery discharge. Refer to TSIB No. PG001-06, BATTERY MAINTENANCE FOR IN-STOCK VEHICLES & PRE-DELIVERY for battery maintenance information.
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
