Headlight Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for HID Headlight)
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE FRONT BUMPER ASSEMBLY (See REMOVAL )
REMOVE FRONT BUMPER ENERGY ABSORBER (See DISASSEMBLY )
REMOVE ENGINE ROOM SIDE COVER
1. Using a clip remover, remove the 4 clips.
2. Disengage the nut and remove the engine room side cover.

  Fig 1: Identifying Engine Room Side Cover With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT UPPER FENDER PROTECTOR
1. Disengage the 2 claws and 3 clips and remove the front upper fender protector.

  Fig 2: Identifying Front Upper Fender Protector With Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADLIGHT ASSEMBLY
1. Disconnect the connector as shown in the illustration.

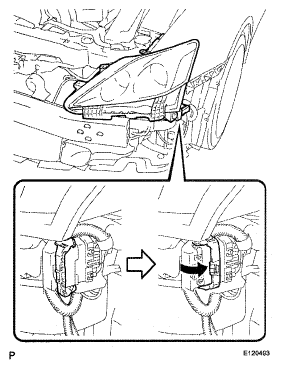

  Fig 3: Identifying Headlight Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts.
3. Disengage the headlight bracket pin and remove the headlight assembly.

  Fig 4: Identifying Headlight Bracket Pin And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
