Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

DESCRIPTION

Detection Item:






HINT: "STEERING SENSOR" refers to the circuit that includes the steering angle sensor.

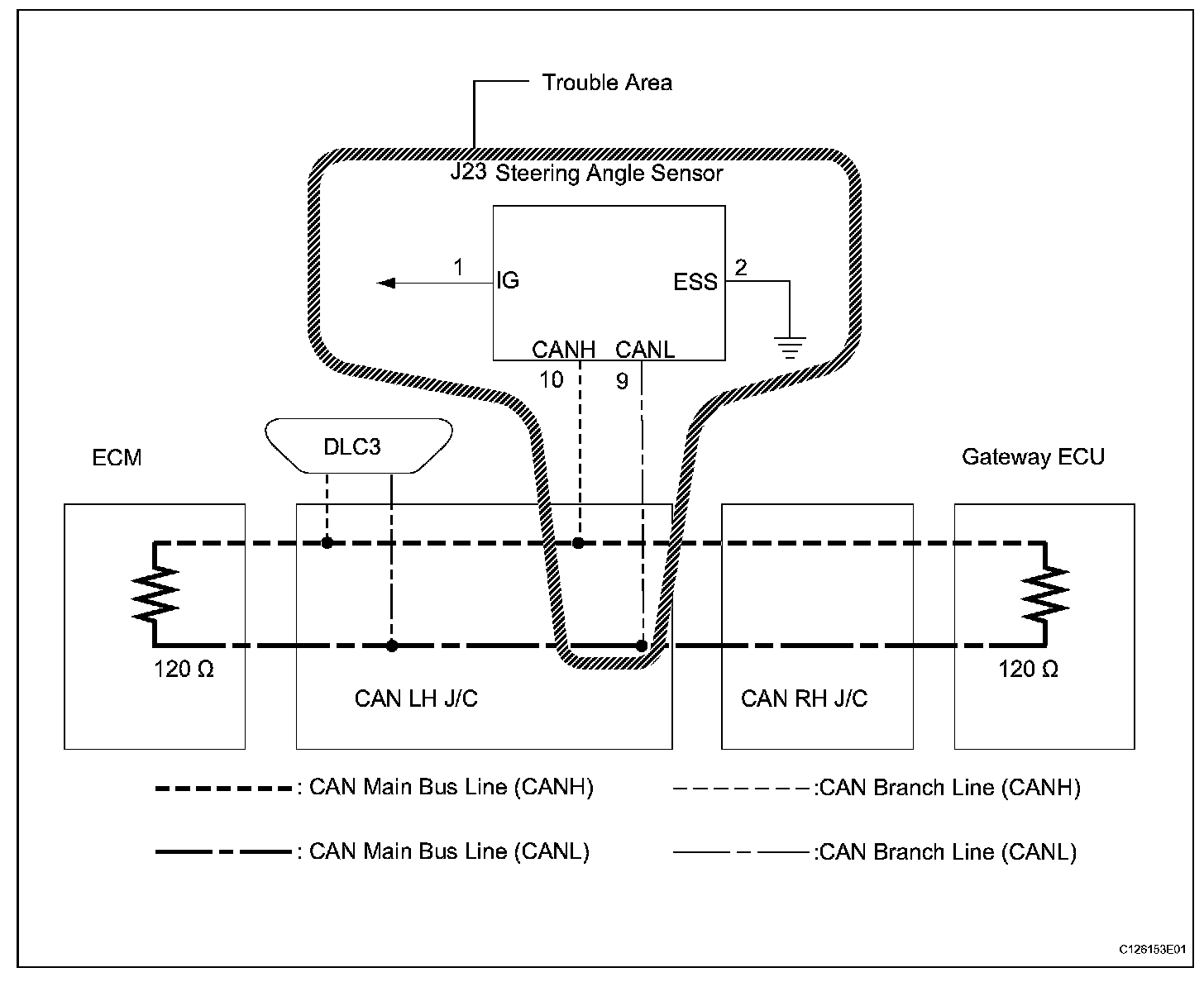

Wiring Diagram:

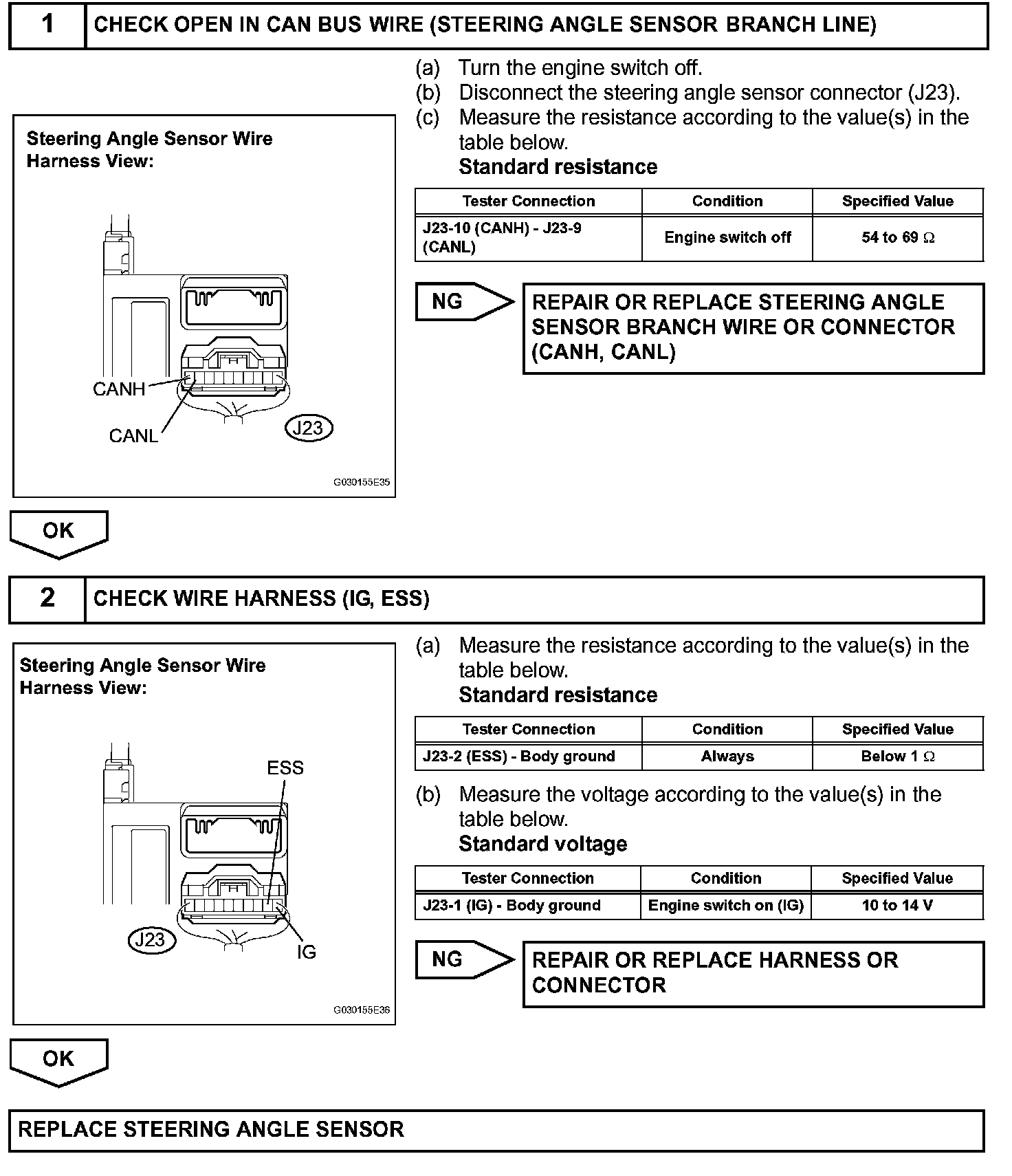

Step 1-2:




INSPECTION PROCEDURE
