Fuse Block

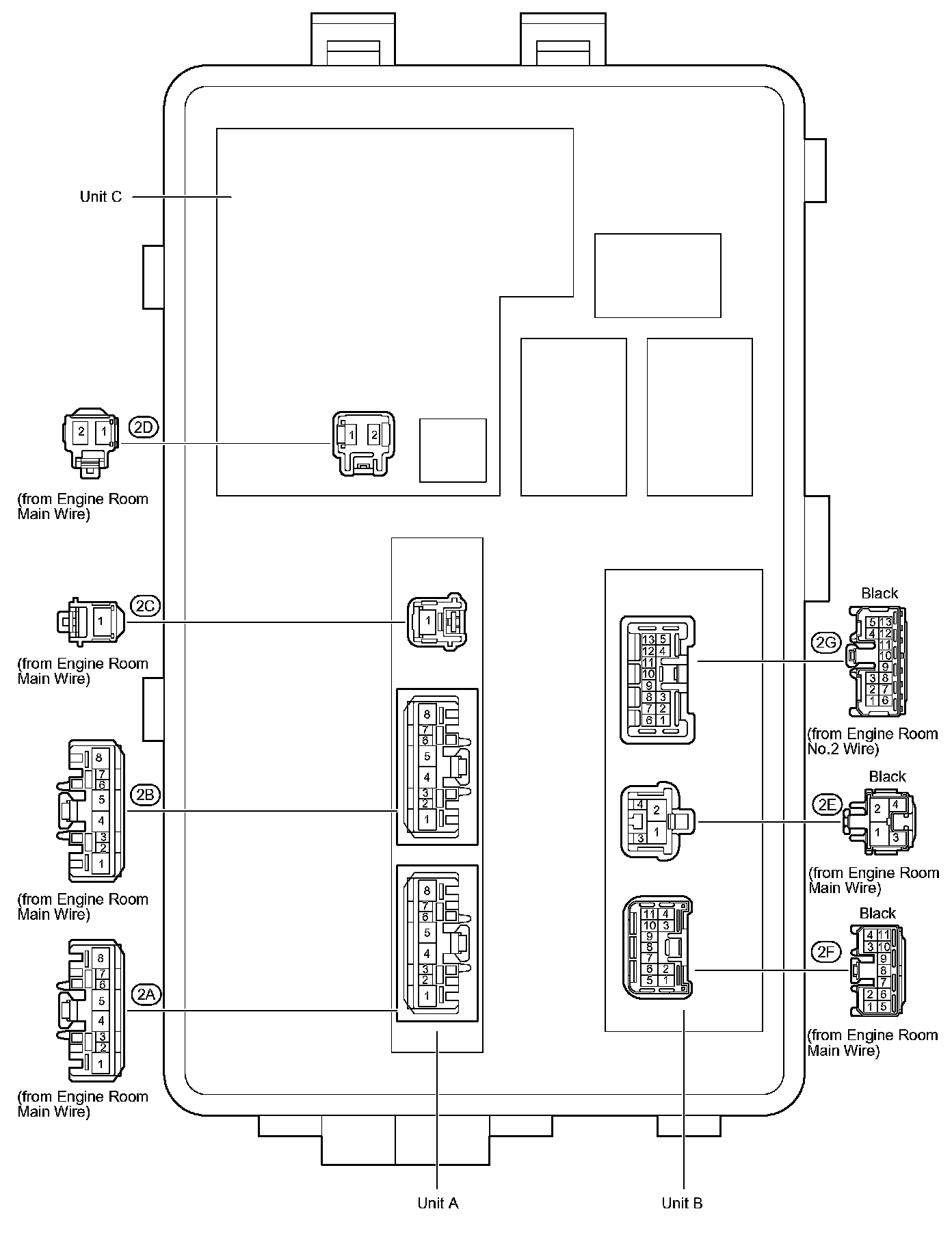

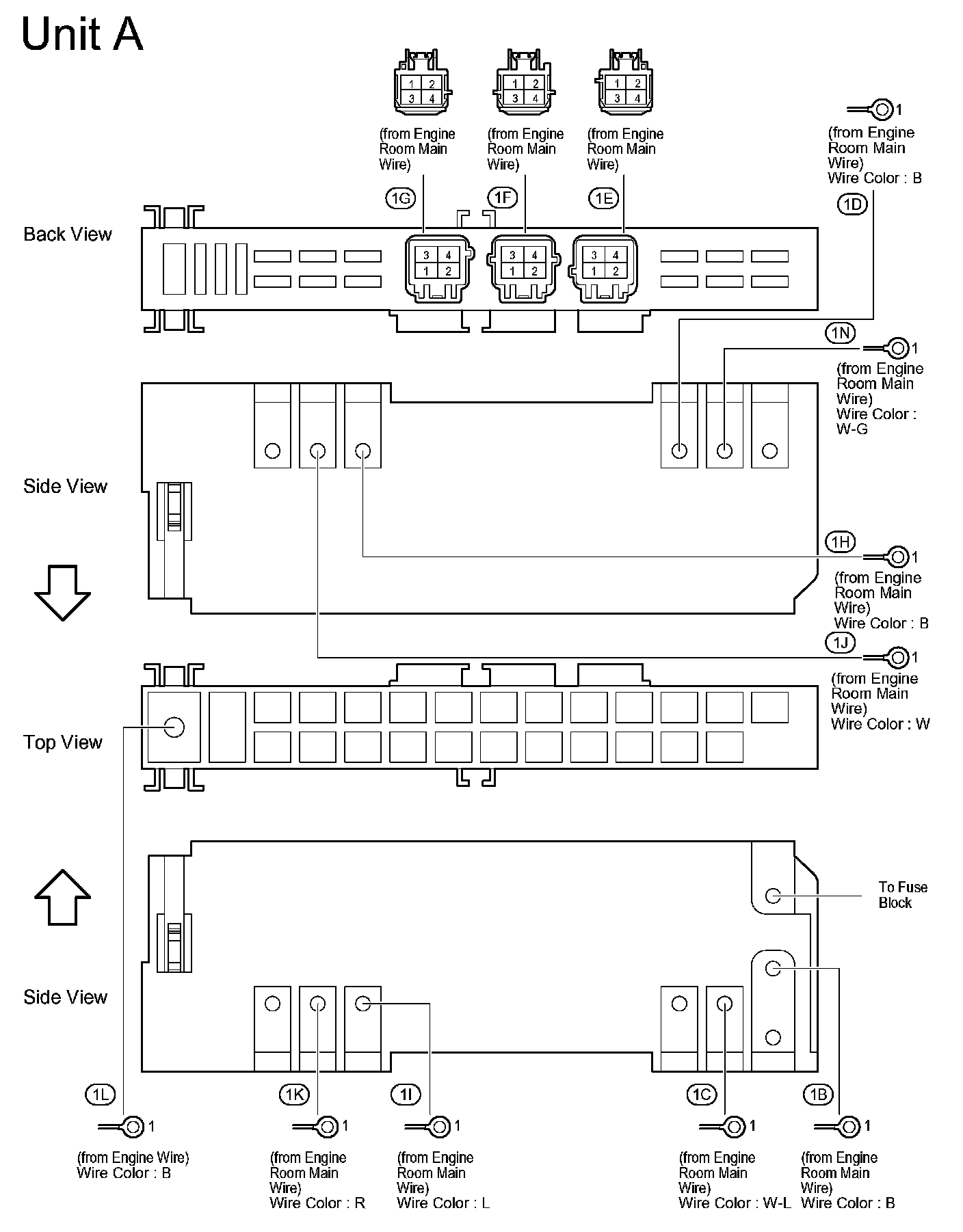

Engine Room R/B No.1, J/B No.1 - Near The Battery:



Engine Room R/B No.2, J/B No.2 - Engine Compartment Left:

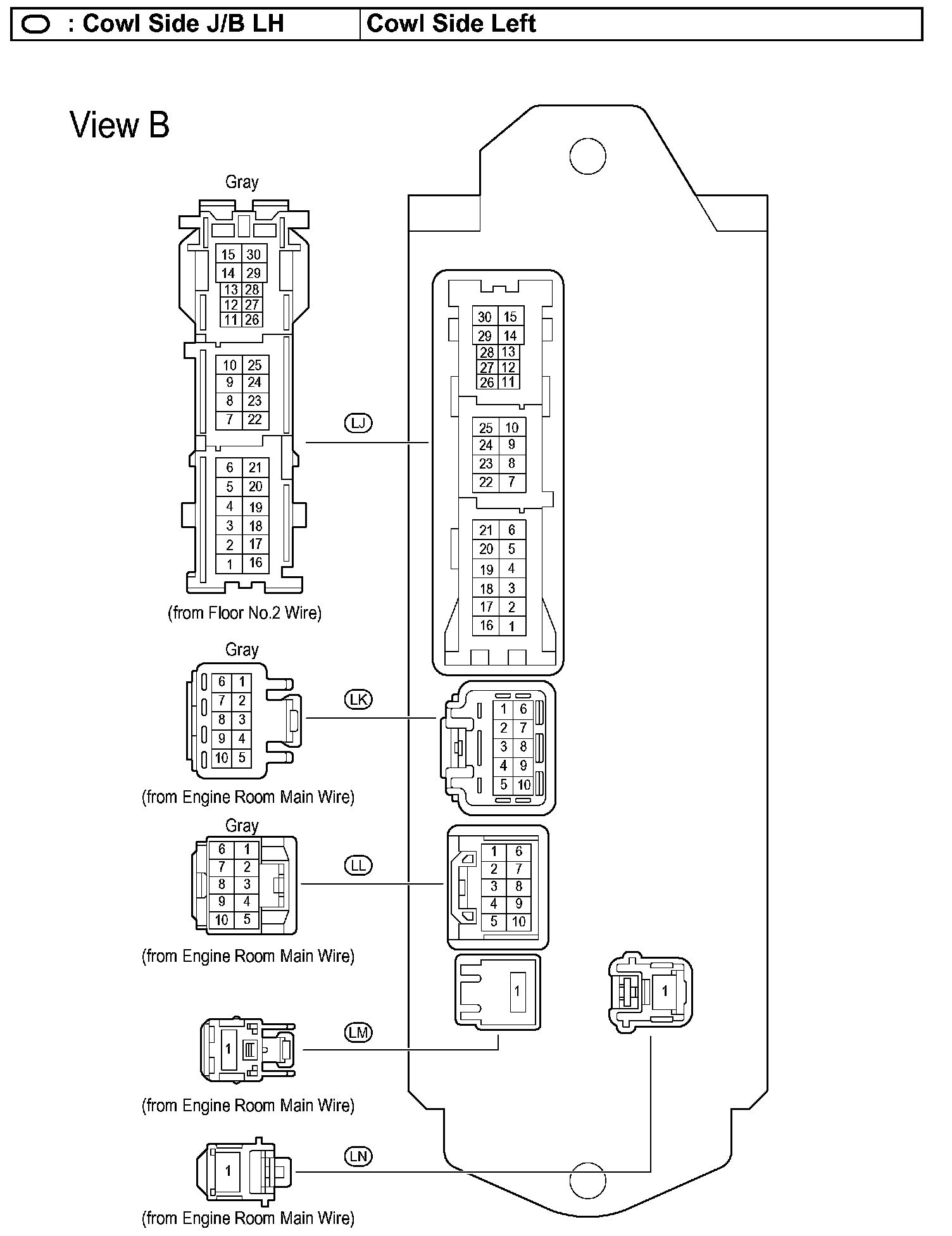

Cowl Side J/B LH - Cowl Side Left:

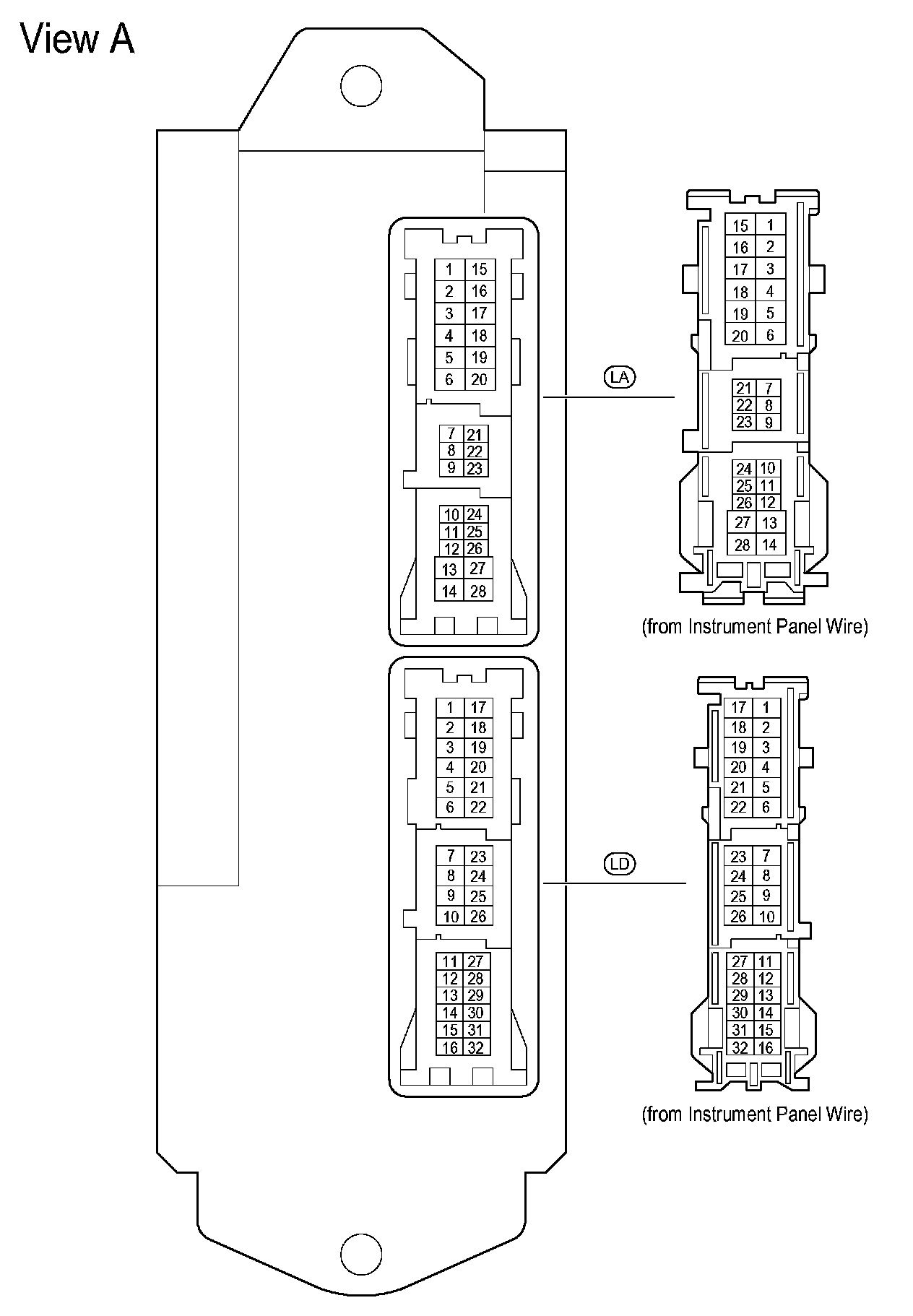

Cowl Side J/B LH - Cowl Side Left:



Cowl Side J/B LH - Cowl Side Left:

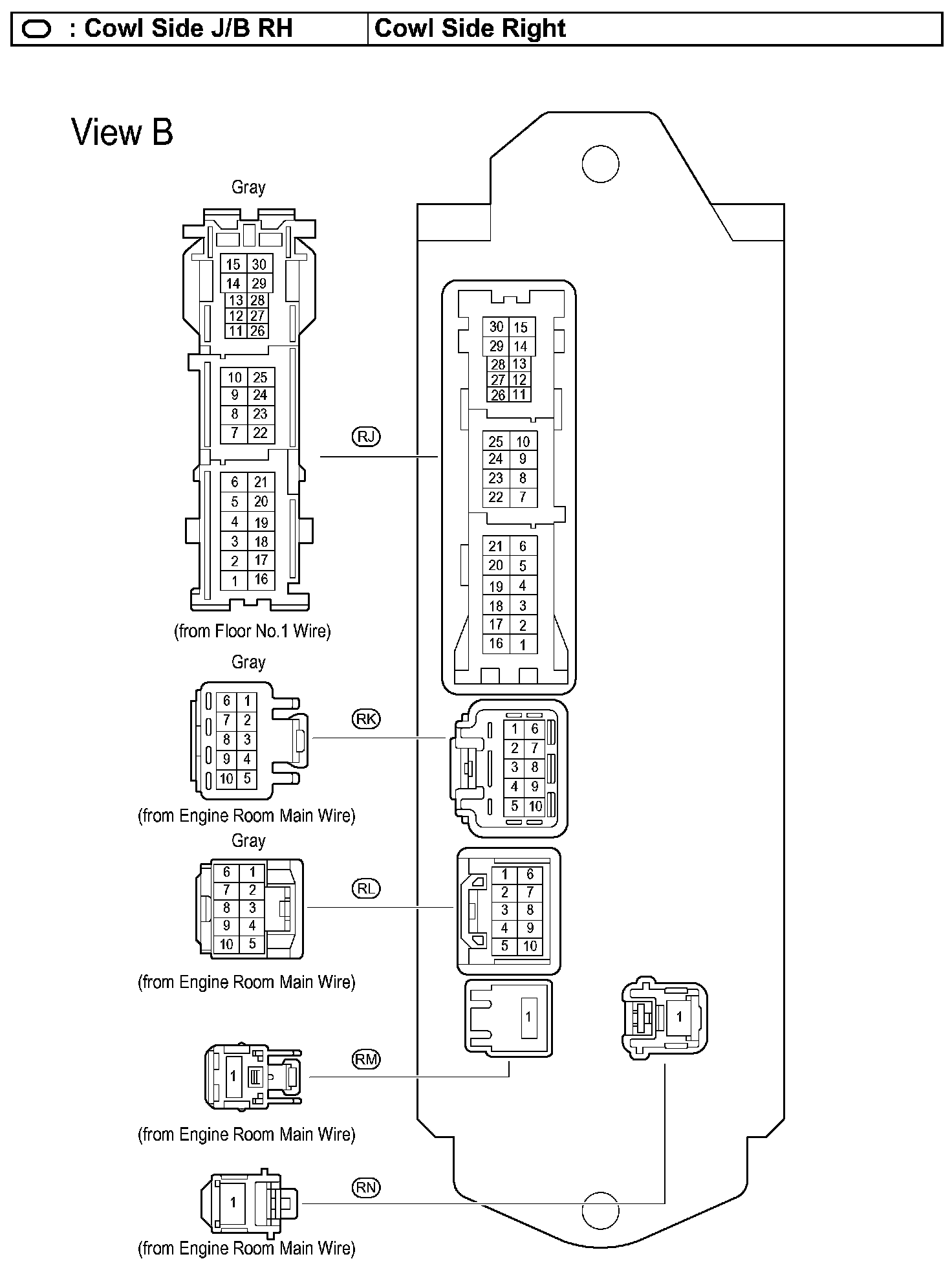

Cowl Side J/B RH - Cowl Side Right:

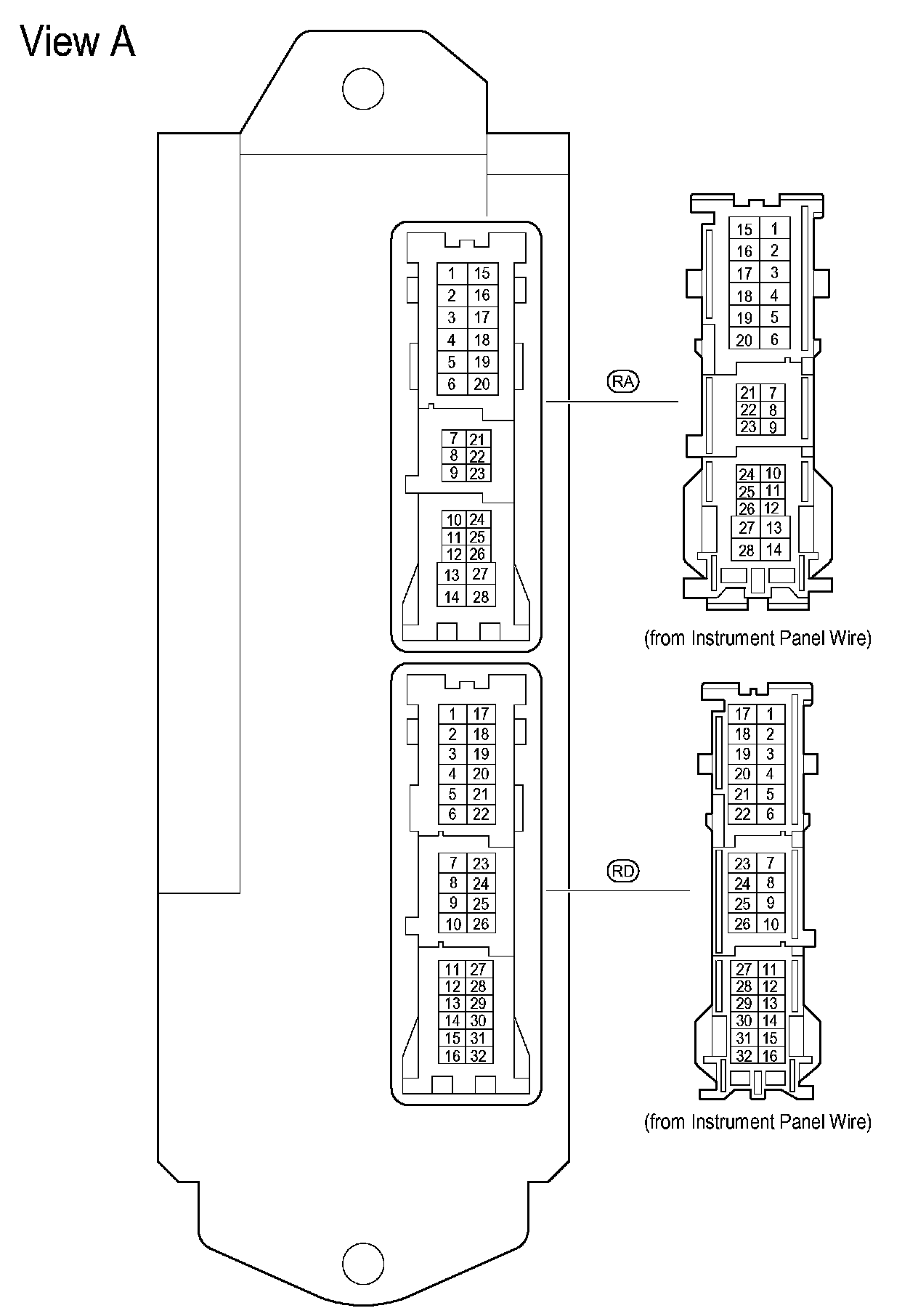

Cowl Side J/B RH - Cowl Side Right:



Cowl Side J/B RH - Cowl Side Right:



Junction Connector - Left Kick Panel:



Junction Connector - Right Kick Panel:
