DTC C1256/56: Accumulator Low Pressure: Description

The accumulator pressure sensor is connected to the skid control ECU in the master cylinder solenoid.

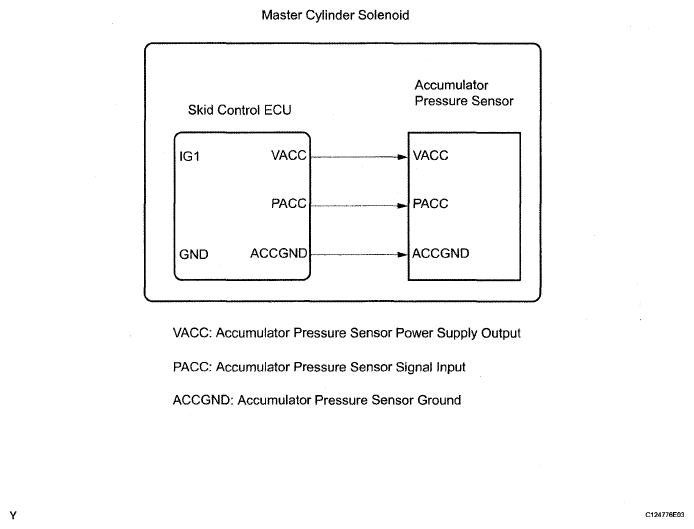

Fig 1: Identifying Master Cylinder Solenoid Circuit (Accumulator Low Pressure)
G05262740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC DETECTION CONDITION TABLE

DTC Code DTC Detection Condition Trouble Area
C1256/56 Fluid pressure inside the accumulator is below the standard value.
  • Hydraulic brake booster
  • Hydraulic brake booster pump motor
  • Hydraulic brake booster pump motor circuit
  • Accumulator pressure sensor
