Headlight Dimmer Switch: Components

Fig 1: Identifying Headlight Dimmer Switch Replacement Components With Torque Specifications (1 Of 2)
G05265825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

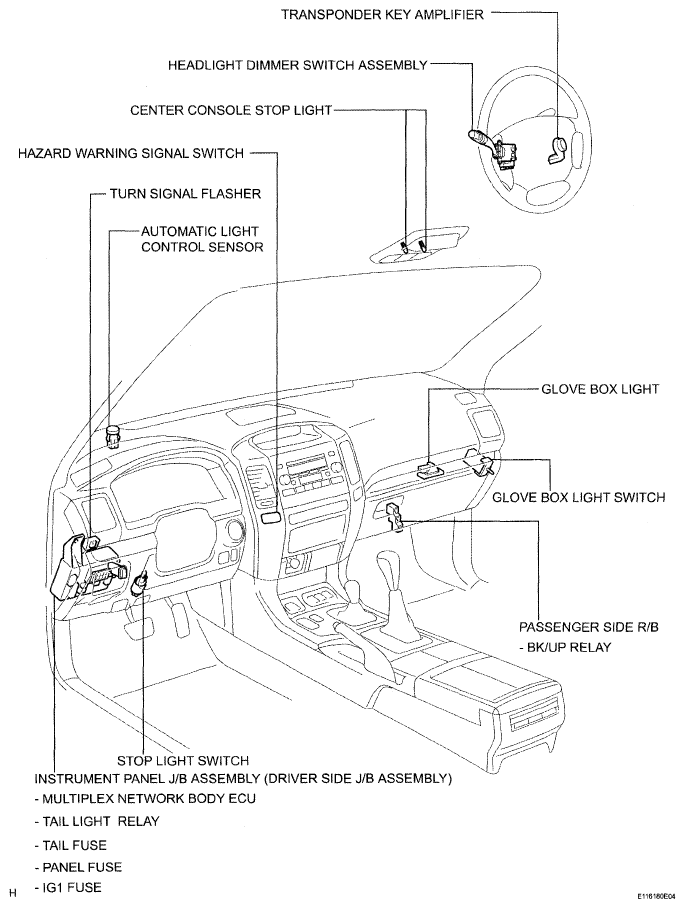

Fig 2: Identifying Headlight Dimmer Switch Replacement Components (2 Of 2)
G05265826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
